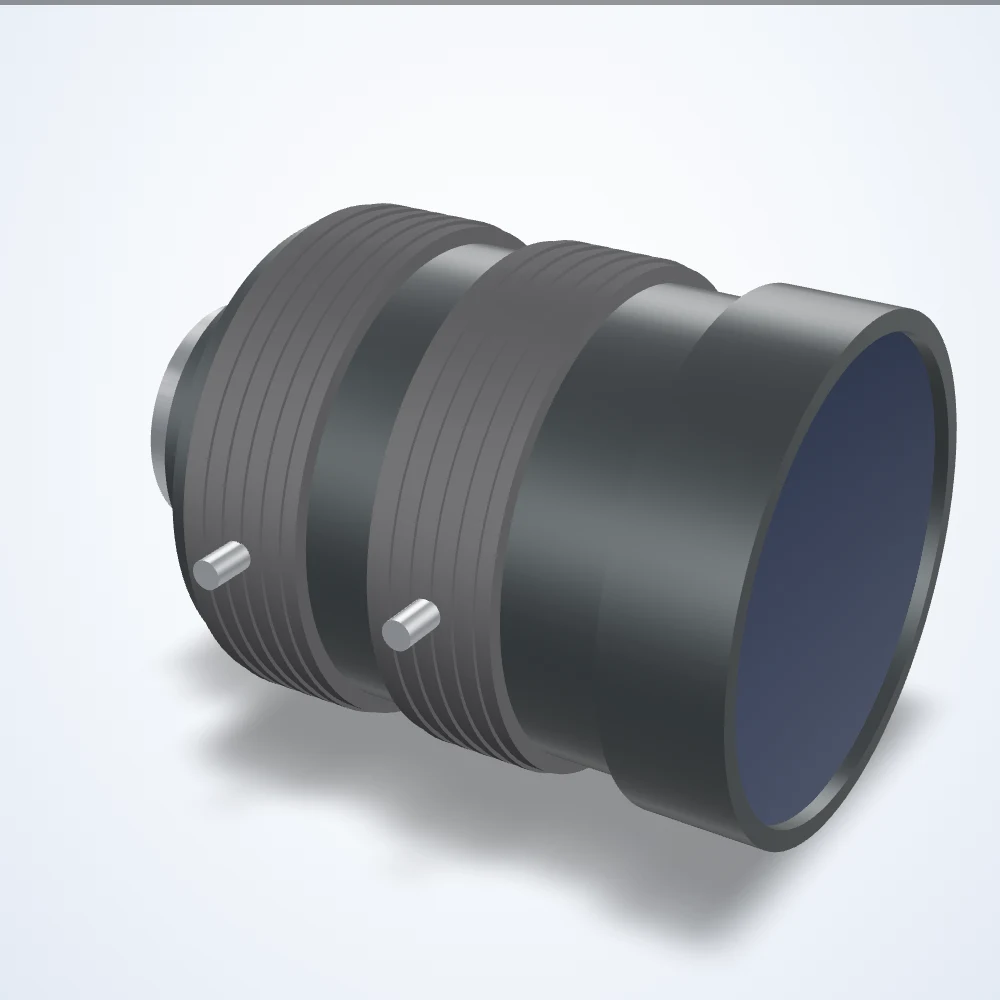

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
12 mm lens, 1", C-Mount (LS-FFL-0294)
Model LS-FFL-0294
12 mm lens, 1", C-Mount. Minimum object distance 200 mm. Aperture f/1.6 to f/22.
Specifications
| Model | LS-FFL-0294 |
|---|---|
| Focus Range | 0.2 m - ∞ |
| Lens Type | Fixed Focal Length |
| Light Spectrum | SWIR |
| Resolution (Pixel Size) | 5 μm |
| Focal length (mm) | 12 |
| Aperture (F) | 1.6-22 |
| Max. sensor format | 1" |
| Minimum object distance (m) | 0.2 |
| Angle of view | 57.9 x 44.6 deg |
| Distortion | -1.2% (TV, design value) |
| Filter thread | M52x0.75 |
| Mount | C |
| Weight (g) | 260 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Dimensions (dia. x length, mm) | 54 x 72.5 |
| Focus range | 0.2m~inf |
| Angle of view 2/3" | 41.1 x 31.1 deg |
| Angle of view 1/2" | 30.2 x 24.3 deg |
| Wave length | 400~1700nm, WBC-V-SWIR (Wide Band Coating - Visible - Short Wave Infrared) |
| Operating temperature | -20~+60 C |
| Rear dia. | 45mm |
| Front hood length | 10.6mm |
| Length behind front hood | 57.3mm |
| Flange back | 17.526mm in air |
| Focus angle | 81 deg |
| Iris angle | 68 deg |
