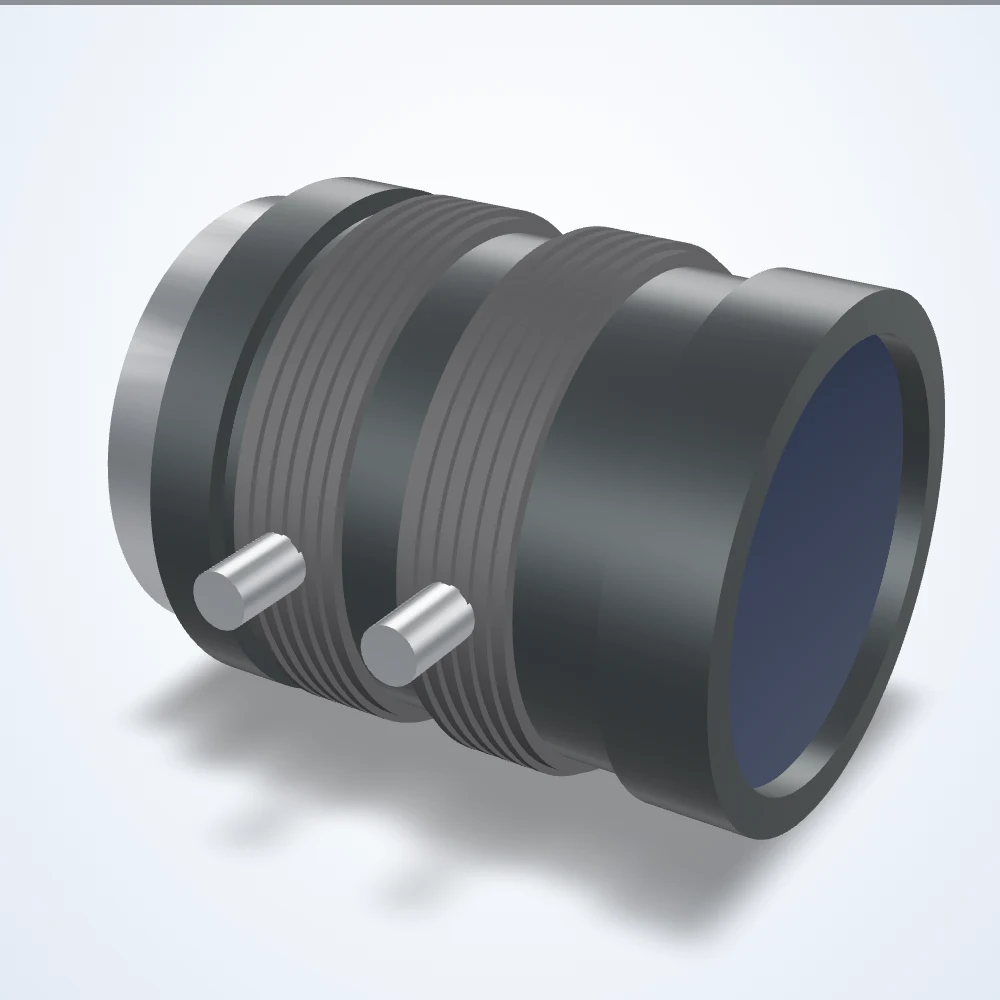

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 2/3", C-Mount (LS-FFL-0293)
Model LS-FFL-0293
35 mm lens, 2/3", C-Mount. Minimum object distance 100 mm. Aperture f/2.4 to f/16.
Specifications
| Model | LS-FFL-0293 |
|---|---|
| Focus Range | 0.2 m - ∞ |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Resolution (MP) | 8 |
| Resolution (Pixel Size) | 2.74 μm |
| Focal length (mm) | 35 |
| Aperture (F) | 2.4-16 |
| Max. sensor format | 2/3" |
| Minimum object distance (m) | 0.2 |
| Angle of view | 12.5 x 9.4 deg (2/3" 4:3) |
| Distortion | 0.04% (TV, design value) |
| Filter thread | M27x0.5 |
| Mount | C |
| Weight (g) | 58 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Dimensions (dia. x length, mm) | 29 x 32.6 |
| Focus range | 0.2m~inf (recommended shooting distance 0.3m) |
| Angle of view 2/3" 1:1 | 11.1 x 11.1 deg |
| Angle of view 2/3" 16:9 | 13.7 x 7.7 deg |
| Angle of view 1/1.8" 4:3 | 9.8 x 7.4 deg |
| Angle of view 1/2" 4:3 | 9.1 x 6.8 deg |
| Angle of view 1/3" 4:3 | 6.8 x 5.1 deg |
| Wave length | Visible light |
| Operating temperature | -20~+60 C |
| Length at 0.2m | 39.1mm |
| Rear dia. | 28.5mm |
| Flange back | 17.526mm (in air) |
| Focus angle | 187.2 deg |
| Iris angle | 77.3 deg |
