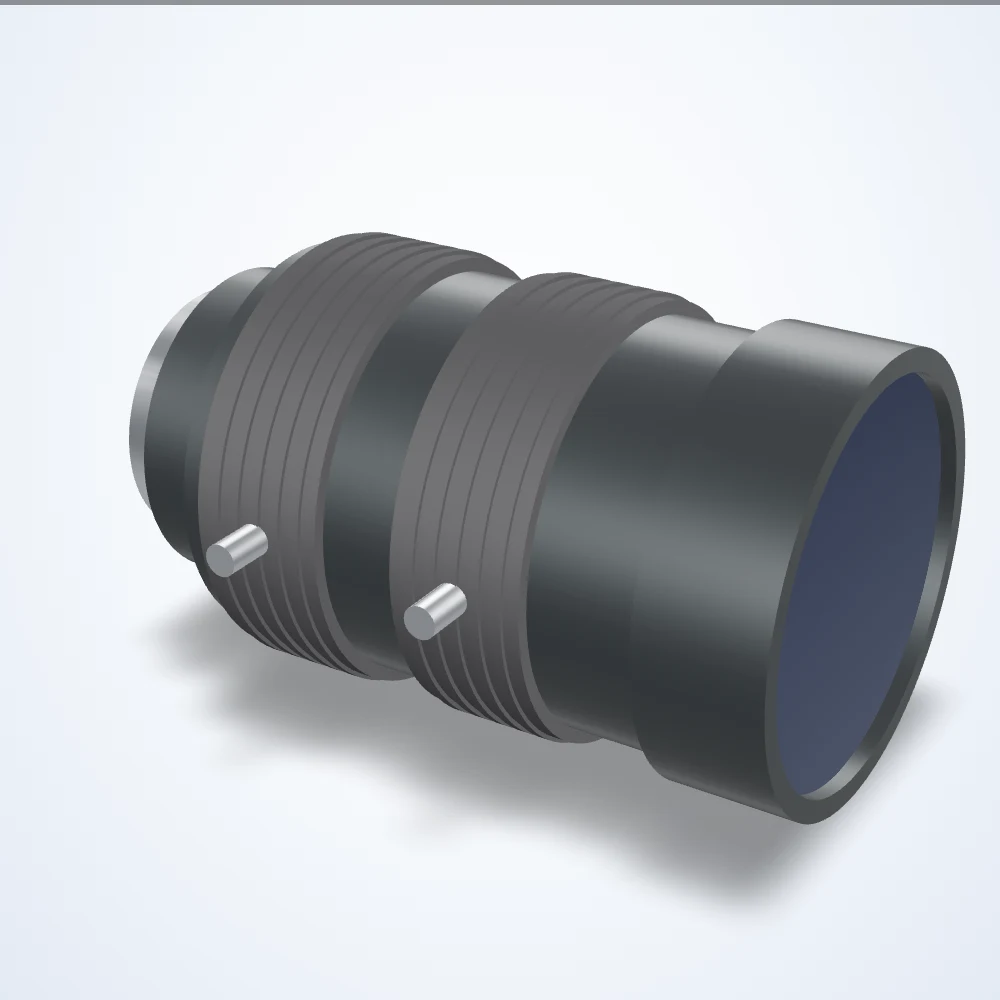

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
50 mm lens, 1.1", C-Mount (LS-FFL-0290)
Model LS-FFL-0290
50 mm lens, 1.1", C-Mount. Minimum object distance 200 mm. Aperture f/2.8 to f/16.
Specifications
| Model | LS-FFL-0290 |
|---|---|
| Focus Range | 0.1 m - ∞ |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible + NIR |
| Resolution (MP) | 24 |
| Resolution (Pixel Size) | 2.5 μm |
| Focal length (mm) | 50 |
| Aperture (F) | 2.8-16 |
| Max. sensor format | 1.1" |
| Minimum object distance (m) | 0.2 |
| Angle of view | 16.0 x 12.0 deg |
| Distortion | 0.1% (TV, design value) |
| Filter thread | M40.5x0.5 |
| Mount | C |
| Weight (g) | 181 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Dimensions (dia. x length, mm) | 43 x 69.5 |
| Focus range | 0.2m~inf |
| Angle of view 2/3" | 10.1 x 7.5 deg |
| Angle of view 1/2" | 7.3 x 5.5 deg |
| Wave length | Visible light ~ near infrared |
| Operating temperature | -20~+60 C |
| Rear dia. | 40.4mm |
| Focus lock screw position | 35.5mm from flange |
| Iris lock screw position | 10.4mm from flange |
| Flange back | 17.526mm in air |
| Focus angle | 85 deg |
| Iris angle | 72 deg |
