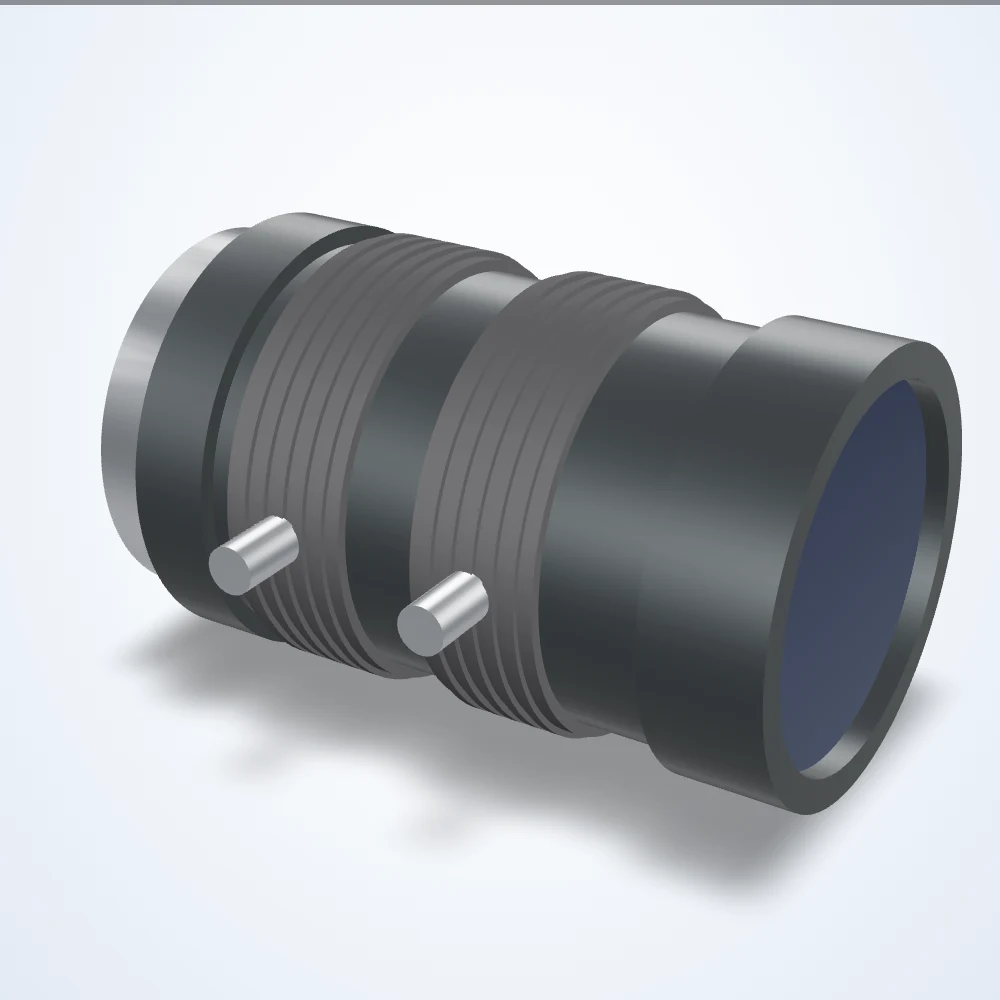

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
50 mm lens, 1/1.8", C-mount (LS-FFL-0287)
Model LS-FFL-0287
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0287 |
|---|---|
| Focal length (mm) | 50 |
| Max. sensor format | 1/1.8" |
| Mount | C-mount |
| Aperture (F) | 2.8-22 |
| Angle of view | 8.3 x 6.2 deg |
| Operating temperature | -10~+60 C |
| Angle of view 1/2" | 7.3 x 5.5 deg |
| Angle of view 1/3" | 5.5 x 4.1 deg |
| Back focus (in air) | 20.10mm |
| Dimensions (dia. x length, mm) | 29 x 44.5 |
| Extending front tube dia. | 26.9mm |
| FOV @ 1/1.8″ | 8.3° × 6.2° |
| FOV @ 1/2″ | 7.3° × 5.5° |
| FOV @ 1/3″ | 5.5° × 4.1° |
| Filter thread | M25.5x0.5 |
| Flange back | 17.526mm (in air) |
| Focus control | Manual with Lock |
| Focus range | 0.2 m - ∞ |
| Focusing range | 0.2m~inf |
| Iris control | Manual with Lock |
| Length max | 62.6mm (max) |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.2 |
| Operating temperature range | -10 to +60 °C |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Resolution (MP) | 2 |
| Spectrum | Visible |
| Tv distortion (%) | -0.1 |
| Weight (g) | 52 |
