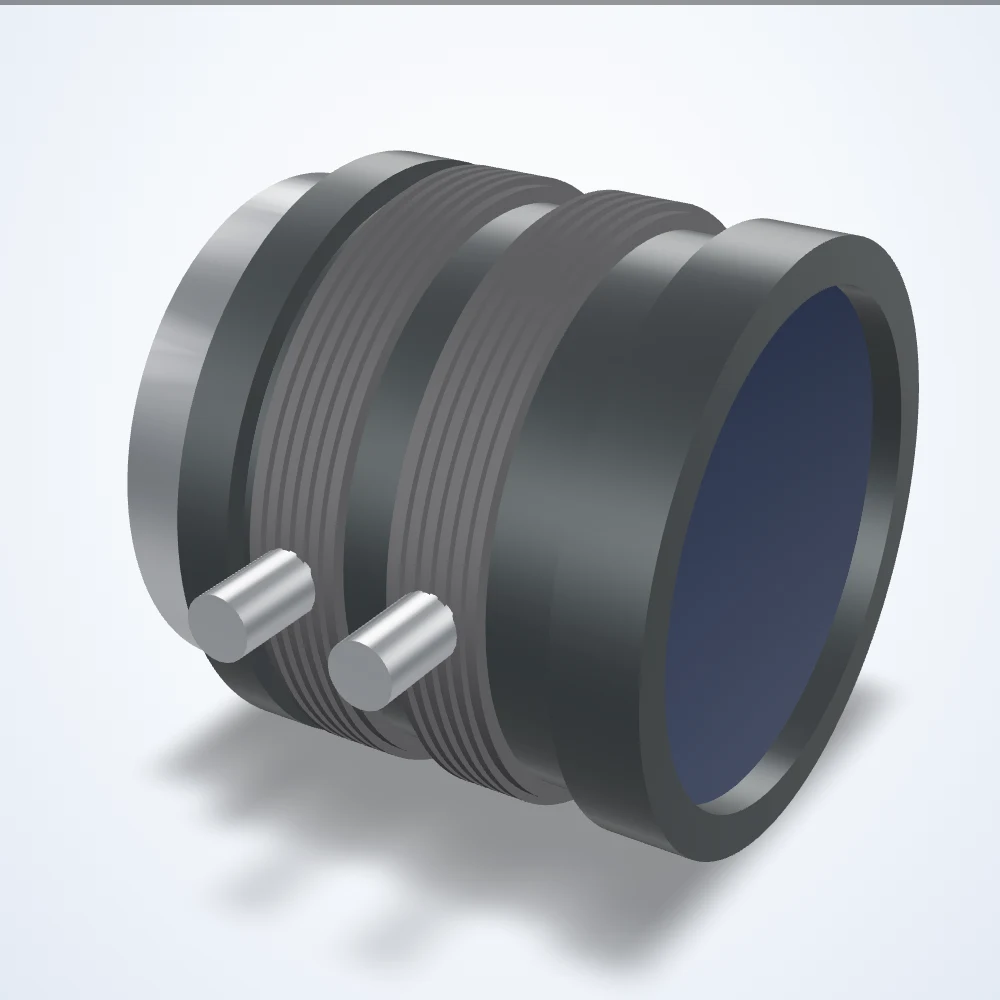

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
16 mm lens, 1/1.8", C-Mount (LS-FFL-0285)
Model LS-FFL-0285
16 mm lens, 1/1.8", C-Mount. Minimum object distance 100 mm. Aperture f/1.4 to f/16.
Specifications
| Model | LS-FFL-0285 |
|---|---|
| Focus Range | 0.1 m - ∞ |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Resolution (MP) | 2 |
| Resolution (Pixel Size) | 6 μm |
| Focal length (mm) | 16 |
| Aperture (F) | 1.4-16 |
| Max. sensor format | 1/1.8" |
| Minimum object distance (m) | 0.1 |
| Angle of view | 25.9 x 19.5 deg |
| Filter thread | M25.5x0.5 |
| Mount | C |
| Weight (g) | 39 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Dimensions (dia. x length, mm) | 29 x 23.8 |
| Focusing range | 0.1m~inf |
| Angle of view 1/2" | 22.8 x 17.1 deg |
| Angle of view 1/3" | 17.1 x 12.9 deg |
| Back focus (in air) | 12.17mm |
| Operating temperature | -10~+60 C |
| Length max | 24.1mm (max) |
| Rear protrusion | 5.611mm |
| Flange back | 17.526mm (in air) |
