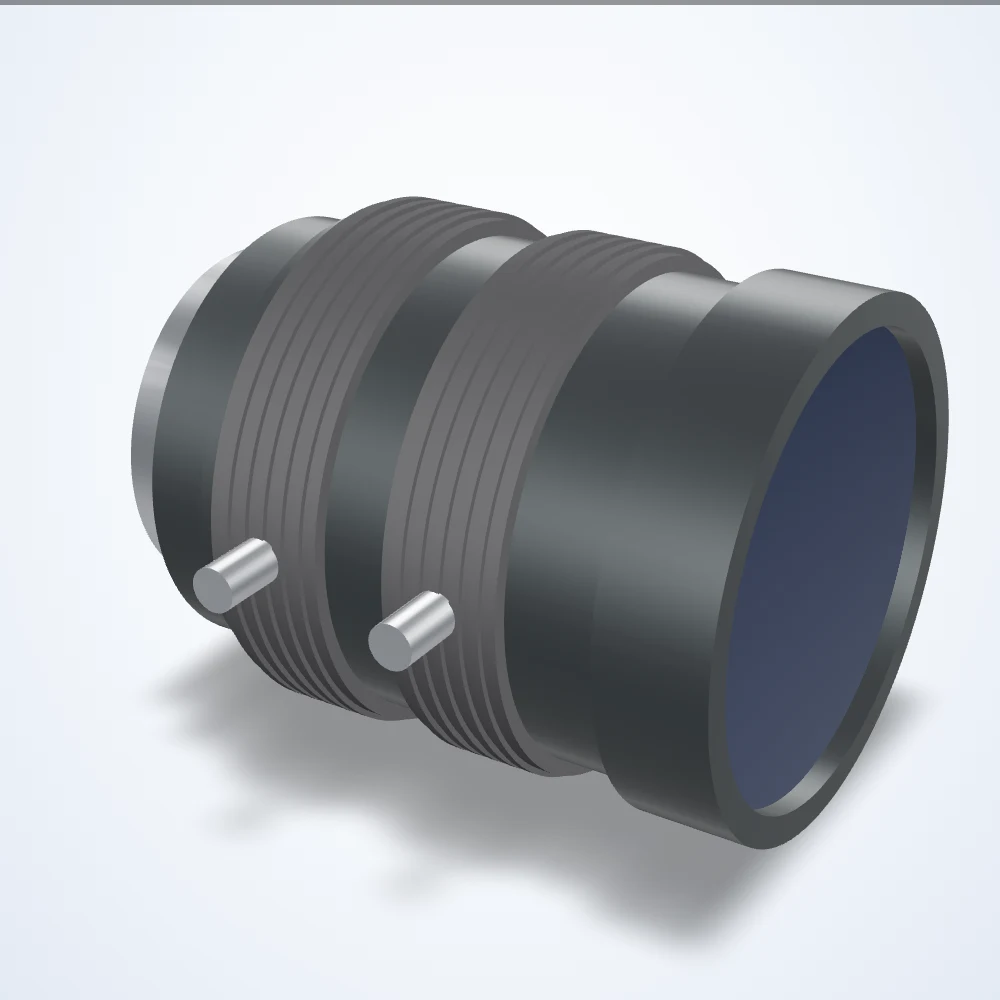

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
6 mm lens, 1/1.8", C-mount (LS-FFL-0283)
Model LS-FFL-0283
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0283 |
|---|---|
| Focal length (mm) | 6 |
| Max. sensor format | 1/1.8" |
| Mount | C-mount |
| Aperture (F) | 1.4-16 |
| Angle of view | 66.1 x 50.8 deg |
| Operating temperature | -10~+60 C |
| Angle of view 1/2" | 58.9 x 44.9 deg |
| Angle of view 1/3" | 44.9 x 34.0 deg |
| Dimensions (dia. x length, mm) | 37 x 44.25 |
| FOV @ 1/1.8″ | 66.1° × 50.8° |
| FOV @ 1/2″ | 58.9° × 44.9° |
| FOV @ 1/3″ | 44.9° × 34° |
| Filter thread | M34x0.5 |
| Flange back | 17.526mm (in air) |
| Focus control | Manual with Lock |
| Focus range | 0.1 m - ∞ |
| Focusing range | 0.1m~inf |
| Iris control | Manual with Lock |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Operating temperature range | -10 to +60 °C |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Rear dia. | 34mm |
| Rear protrusion | 5.65mm (max) |
| Resolution (MP) | 2 |
| Spectrum | Visible |
| Tv distortion (%) | -3 |
| Wave length | Visible light |
| Weight (g) | 86 |
