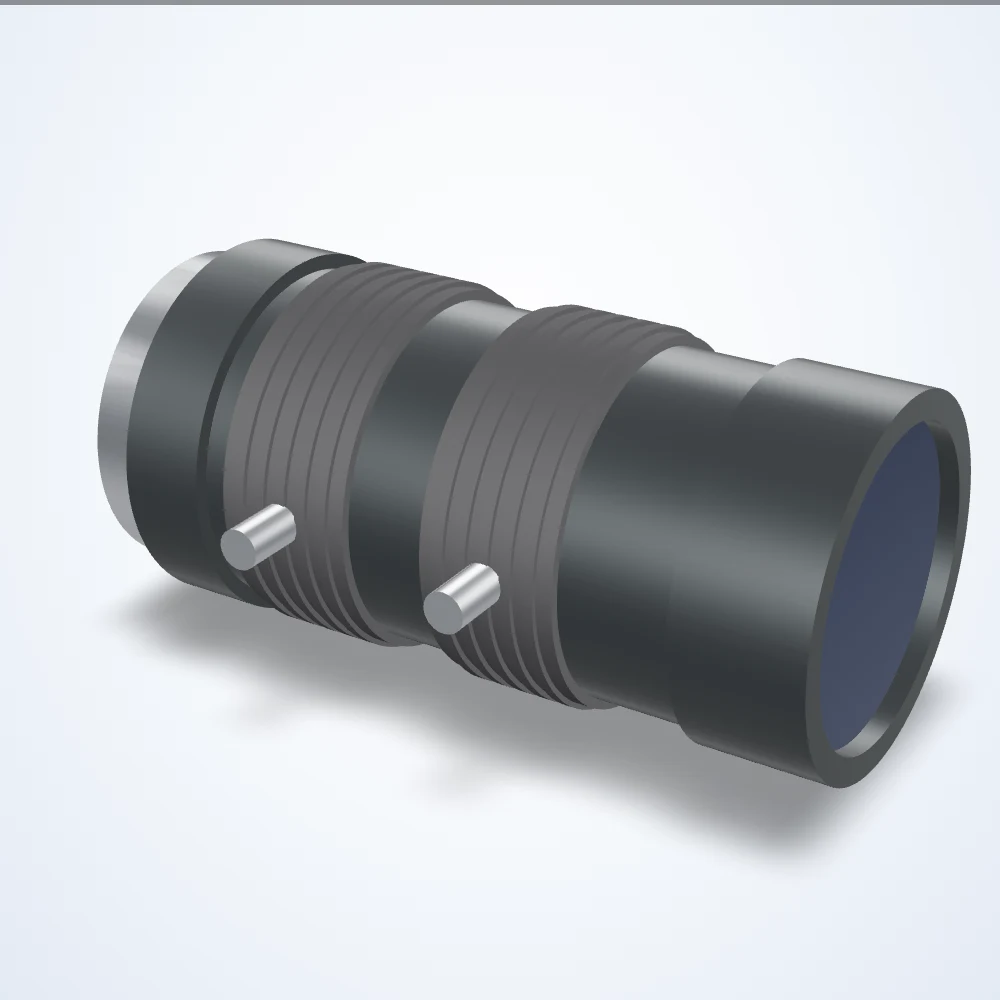

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
75 mm lens, 1/1.2", C-mount (LS-FFL-0275)
Model LS-FFL-0275
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0275 |
|---|---|
| Focal length (mm) | 75 |
| Max. sensor format | 1/1.2" |
| Mount | C-mount |
| Aperture (F) | 3.5-16 |
| Angle of view | 8.1 x 6.1 deg (1/1.2" 4:3) |
| Distortion | 0.03% (TV, design value) |
| Operating temperature | -20~+60 C |
| Angle of view 1/1.2" 16:9 | 8.9 x 5.0 deg |
| Angle of view 2/3" 16:9 | 7.3 x 4.1 deg |
| Angle of view 2/3" 4:3 | 6.7 x 5.0 deg |
| Dimensions (dia. x length, mm) | 29 x 56.7 |
| FOV @ 1/1.2″ (4:3) | 8.1° × 6.1° |
| FOV @ 2/3″ (4:3) | 7.3° × 4.1° |
| Filter thread | M27x0.5 |
| Flange back | 17.526mm (in air) |
| Focus angle | 146 deg |
| Focus control | Manual with Lock |
| Focus range | 0.7m~inf |
| Iris angle | 63.9 deg |
| Iris control | Manual with Lock |
| Length at 0.7m | 65.0mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.7 |
| Operating temperature range | -20 to +60 °C |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Rear dia. | 28.5mm |
| Resolution (MP) | 5 |
| Spectrum | Visible |
| Tv distortion (%) | 0.03 |
| Wave length | Visible light |
| Weight (g) | 81 |
