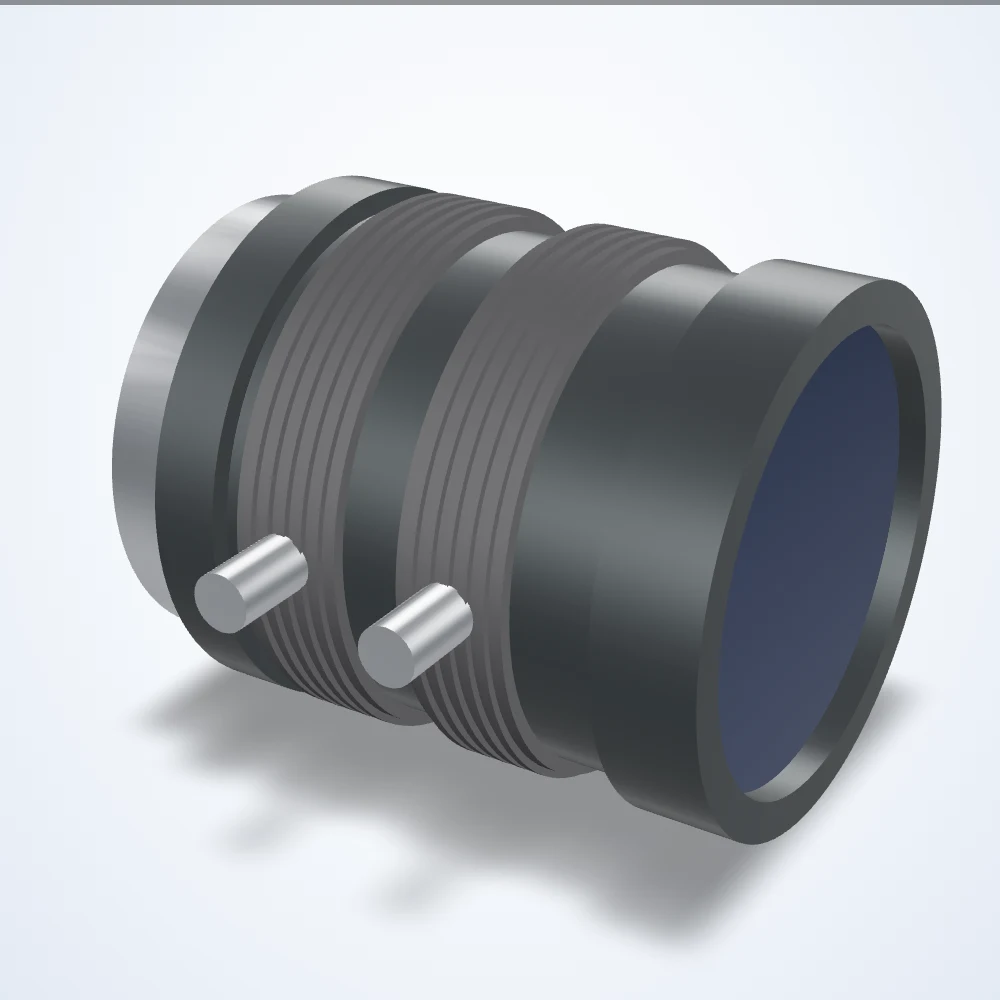

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
25 mm lens, 1/1.2", C-mount (LS-FFL-0272)
Model LS-FFL-0272
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0272 |
|---|---|
| Focal length (mm) | 25 |
| Max. sensor format | 1/1.2" |
| Mount | C-mount |
| Aperture (F) | 1.8-16 |
| Angle of view | 24.1 x 18.2 deg (1/1.2" 4:3) |
| Distortion | -0.09% (TV, design value) |
| Operating temperature | -20~+60 C |
| Angle of view 1/1.2" 16:9 | 26.2 x 15.0 deg |
| Angle of view 2/3" 16:9 | 21.7 x 12.3 deg |
| Angle of view 2/3" 4:3 | 19.9 x 15.0 deg |
| Dimensions (dia. x length, mm) | 29 x 31.5 |
| FOV @ 1/1.2″ (4:3) | 24.1° × 18.2° |
| FOV @ 2/3″ (4:3) | 21.7° × 12.3° |
| Filter thread | M27x0.5 |
| Flange back | 17.526mm (in air) |
| Focus angle | 160 deg |
| Focus control | Manual with Lock |
| Focus range | 0.1m~inf (recommended shooting distance 0.3m) |
| Iris angle | 91 deg |
| Iris control | Manual with Lock |
| Length at 0.1m | 37mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Operating temperature range | -20 to +60 °C |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Resolution (MP) | 5 |
| Spectrum | Visible |
| Tv distortion (%) | -0.09 |
| Wave length | Visible light |
| Weight (g) | 54 |
