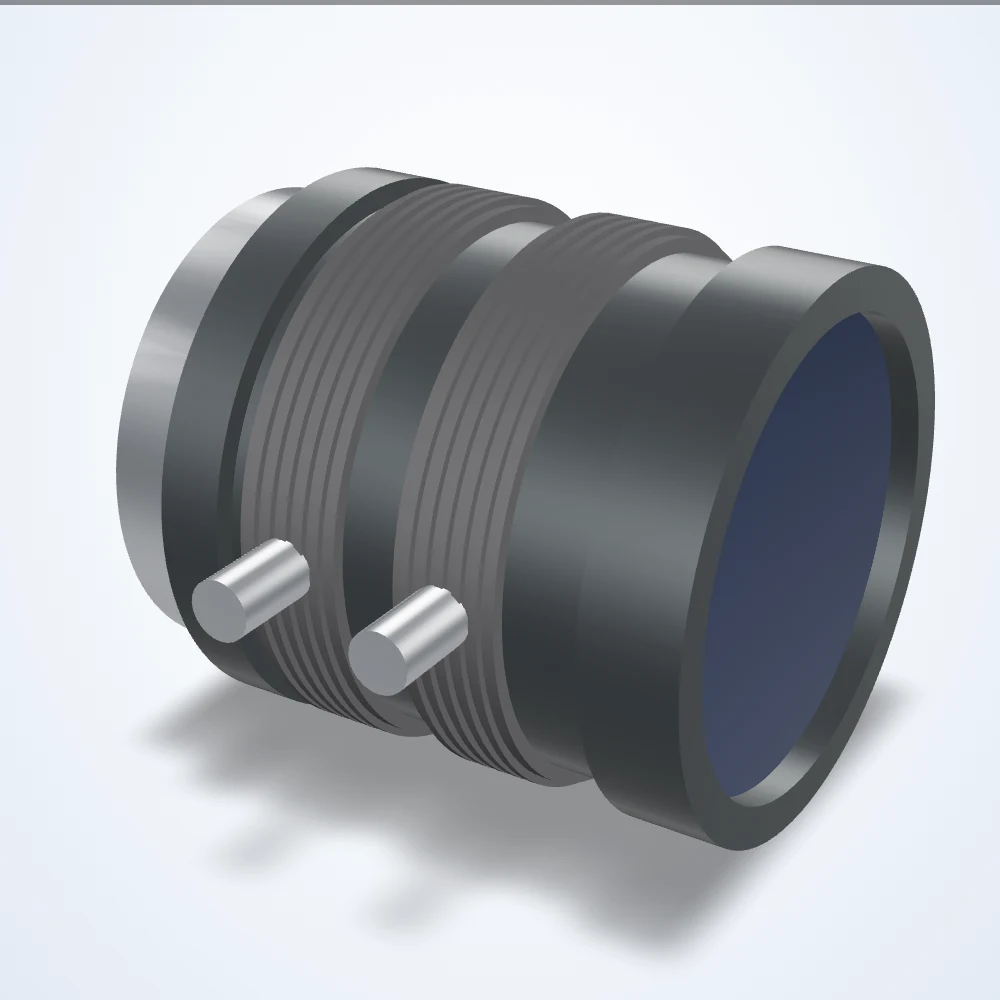

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
16 mm lens, 1/1.2", C-Mount (LS-FFL-0271)
Model LS-FFL-0271
16 mm lens, 1/1.2", C-Mount. Minimum object distance 100 mm. Aperture f/2 to f/16.
Specifications
| Model | LS-FFL-0271 |
|---|---|
| Focus Range | 0.1 m - ∞ |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Resolution (MP) | 5 |
| Resolution (Pixel Size) | 2.5 μm |
| Focal length (mm) | 16 |
| Aperture (F) | 2.0-16 |
| Max. sensor format | 1/1.2" |
| Minimum object distance (m) | 0.1 |
| Angle of view | 37.4 x 28.4 deg (1/1.2" 4:3) |
| Distortion | -0.56% (TV, design value) |
| Filter thread | M27x0.5 |
| Mount | C |
| Weight (g) | 51 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Dimensions (dia. x length, mm) | 29 x 28.9 |
| Focus range | 0.1m~inf (recommended shooting distance 0.3m) |
| Angle of view 1/1.2" 16:9 | 40.5 x 22.3 deg |
| Angle of view 2/3" 4:3 | 31.0 x 23.4 deg |
| Angle of view 2/3" 16:9 | 33.7 x 19.2 deg |
| Wave length | Visible light |
| Operating temperature | -20~+60 C |
| Length at 0.1m | 31.2mm |
| Flange back | 17.526mm (in air) |
| Focus angle | 148 deg |
| Iris angle | 82.7 deg |
