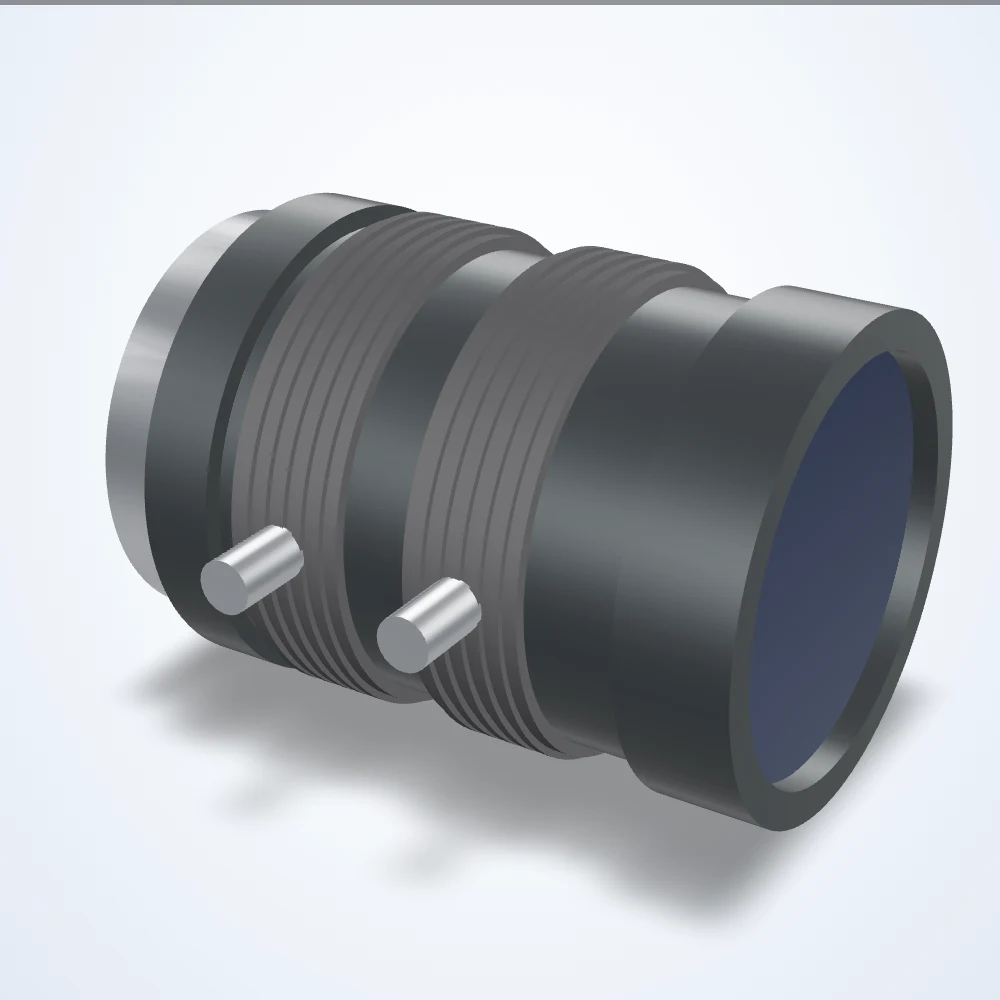

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
12 mm lens, 1/1.2", C-mount (LS-FFL-0270)
Model LS-FFL-0270
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0270 |
|---|---|
| Focal length (mm) | 12 |
| Max. sensor format | 1/1.2" |
| Mount | C-mount |
| Aperture (F) | 2.0-16 |
| Angle of view | 49.2 x 37.6 deg (1/1.2" 4:3) |
| Distortion | -0.97% (TV) |
| Operating temperature | -20~+60 C |
| Angle of view 1/1.2" 16:9 | 53.2 x 30.6 deg |
| Angle of view 2/3" 16:9 | 44.4 x 25.5 deg |
| Angle of view 2/3" 4:3 | 40.9 x 31.1 deg |
| Dimensions (dia. x length, mm) | 29 x 37.2 |
| Exit pupil position | -35.52mm |
| FOV @ 1/1.2″ (4:3) | 49.2° × 37.6° |
| FOV @ 2/3″ (4:3) | 44.4° × 25.5° |
| Filter thread | M27x0.5 |
| Flange back | 17.526mm (in air) |
| Focus angle | 129.8 deg |
| Focus control | Manual with Lock |
| Focus range | 100mm~inf (recommended shooting distance 0,3m) |
| Iris angle | 85.8 deg |
| Iris control | Manual with Lock |
| Length at 0.1m | 38.5mm |
| Lens type | Fixed Focal Length |
| Maximum diameter | 29.0mm |
| Minimum object distance (m) | 0.1 |
| Operating temperature range | -20 to +60 °C |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Optical overall length | 37.2mm - 38.5mm |
| Pixel pitch | 3.45um |
| Resolution (MP) | 5 |
| Spectrum | Visible |
| Tv distortion (%) | -0.97 |
| Weight (g) | 64 |
