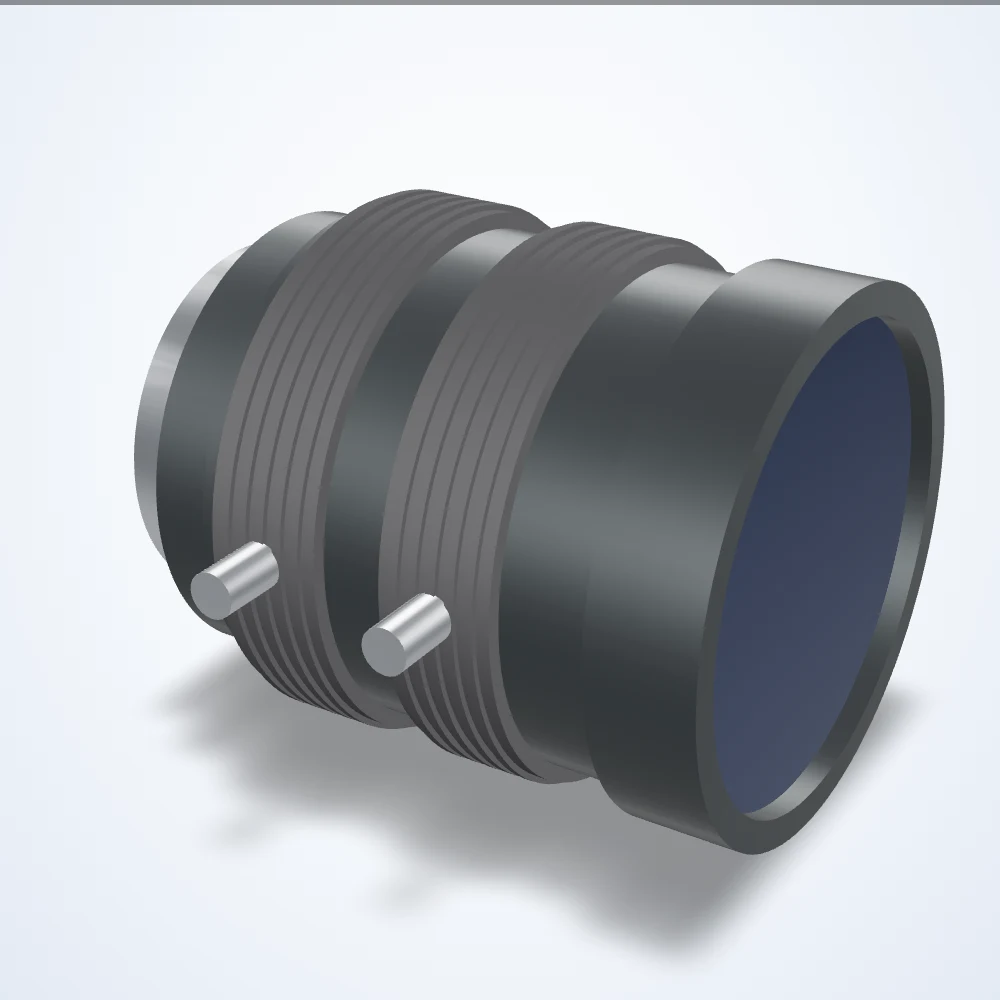

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
8 mm lens, 1/1.2", C-mount (LS-FFL-0269)
Model LS-FFL-0269
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0269 |
|---|---|
| Focal length (mm) | 8 |
| Max. sensor format | 1/1.2" |
| Mount | C-mount |
| Aperture (F) | 2.4-16 |
| Angle of view | 70.3 x 54.9 deg (1/1.2" 4:3) |
| Distortion | -1.47% (TV) |
| Operating temperature | -20~+60 C |
| Angle of view 1/1.2" 16:9 | 75.3 x 45.6 deg |
| Angle of view 2/3" 16:9 | 64.0 x 37.8 deg |
| Angle of view 2/3" 4:3 | 59.5 x 45.8 deg |
| Dimensions (dia. x length, mm) | 37 x 41.73 |
| Exit pupil position | -35.52mm |
| FOV @ 1/1.2″ (4:3) | 70.3° × 54.9° |
| FOV @ 2/3″ (4:3) | 59.5° × 45.8° |
| Filter thread | M35.5x0.5 |
| Flange back | 17.526mm |
| Focus control | Manual with Lock |
| Focus range | 100mm~inf (recommended shooting distance 0.3m) |
| Iris control | Manual with Lock |
| Length at W.D=100mm | 42.29mm |
| Lens type | Fixed Focal Length |
| Maximum diameter | 37.0mm |
| Minimum object distance (m) | 0.1 |
| Operating temperature range | -20 to +60 °C |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Optical overall length | 41.7mm - 42.3mm |
| Pixel pitch | 3.45um |
| Rear body dia. | 29mm |
| Resolution (MP) | 5 |
| Spectrum | Visible |
| Tv distortion (%) | -1.47 |
| Weight (g) | 86 |
