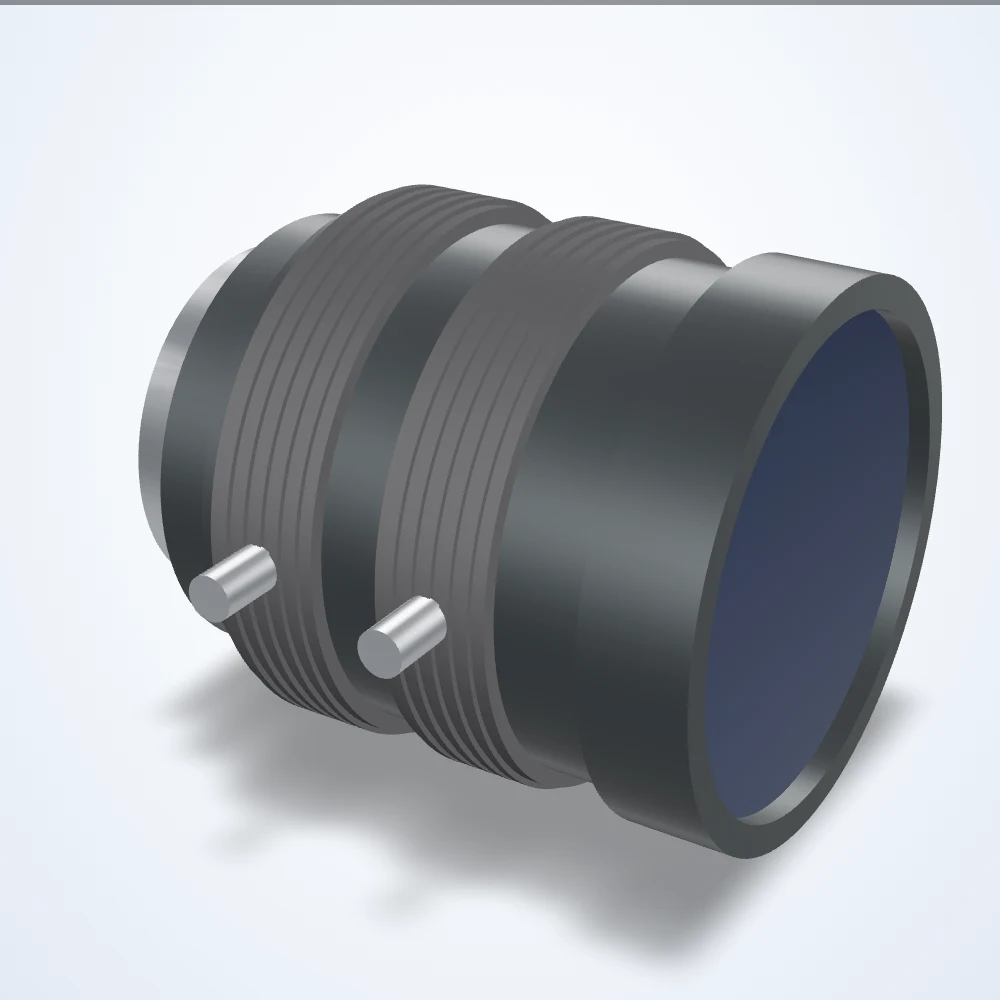

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
6 mm lens, 1/1.2", C-mount (LS-FFL-0268)
Model LS-FFL-0268
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0268 |
|---|---|
| Focal length (mm) | 6 |
| Max. sensor format | 1/1.2" |
| Mount | C-mount |
| Aperture (F) | 2.8-16 |
| Angle of view | 87.7 x 70.1 deg (1/1.2" 4:3) |
| Distortion | -1.99% (TV, design value) |
| Operating temperature | -20~+60 C |
| Angle of view 1/1.2" 16:9 | 93.1 x 59.0 deg |
| Angle of view 2/3" 16:9 | 80.8 x 49.3 deg |
| Angle of view 2/3" 4:3 | 75.5 x 59.2 deg |
| Dimensions (dia. x length, mm) | 38 x 41.4 |
| FOV @ 1/1.2″ (4:3) | 87.7° × 70.1° |
| FOV @ 2/3″ (4:3) | 75.5° × 59.2° |
| Filter frame dia. | 60mm |
| Filter frame length | 11.9mm |
| Filter thread | M58x0.75 |
| Flange back | 17.526mm (in air) |
| Focus angle | 110.9 deg |
| Focus control | Manual with Lock |
| Focus range | 0.1m~inf (recommended shooting distance 0.3m) |
| Front barrel dia. (inner) | 29mm |
| Iris angle | 64.8 deg |
| Iris control | Manual with Lock |
| Length at 0.1m | 41.7mm |
| Length with filter adapter (inf) | 47.6mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Operating temperature range | -20 to +60 °C |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Rear dia. | 28.5mm |
| Resolution (MP) | 5 |
| Spectrum | Visible |
| Tv distortion (%) | -1.99 |
| Wave length | Visible light |
| Weight (g) | 115 |
