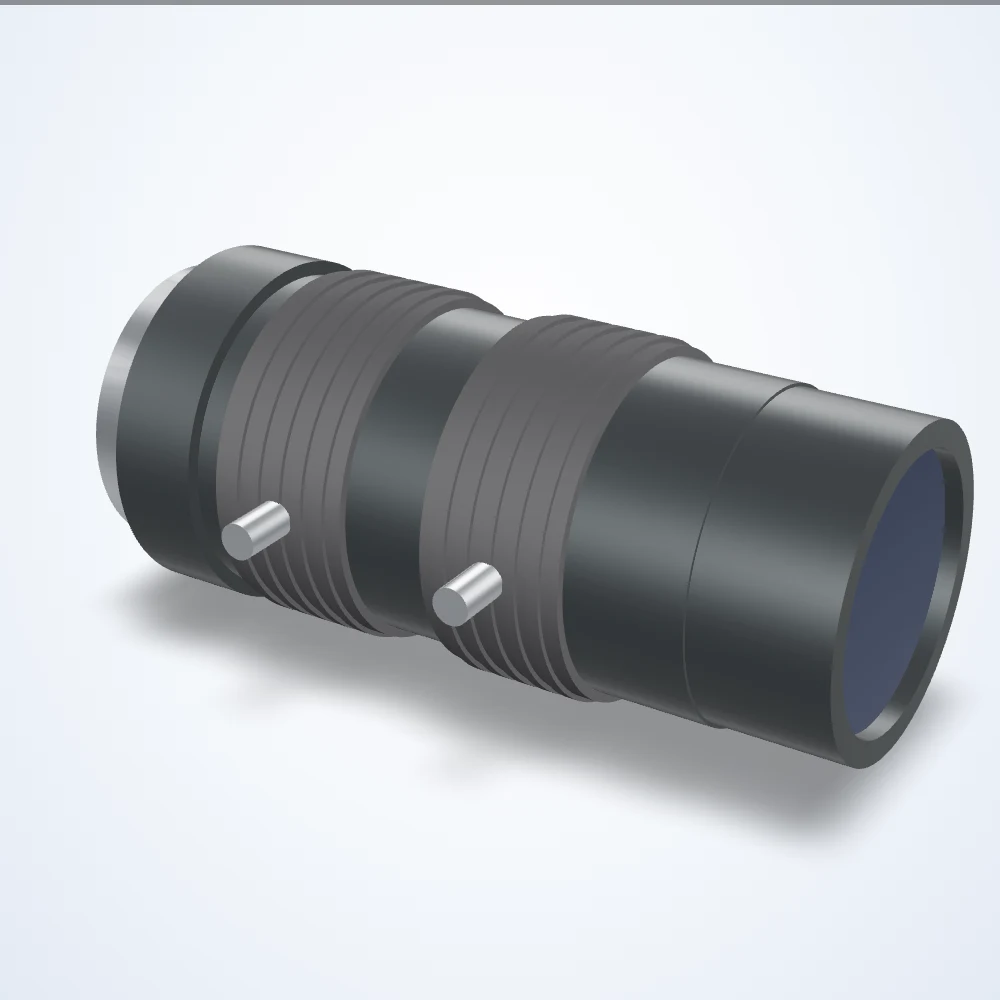

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
75 mm lens, 2/3", C-mount (LS-FFL-0267)
Model LS-FFL-0267
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0267 |
|---|---|
| Focal length (mm) | 75 |
| Max. sensor format | 2/3" |
| Mount | C-mount |
| Aperture (F) | 3.9-32 |
| Angle of view | 6.9 x 5.2 deg |
| Operating temperature | -10~+70 C |
| Angle of view 1/2" | 5.0 x 3.5 deg |
| Angle of view 1/3" | 3.5 x 2.5 deg |
| Back focus (in air) | 27.12mm |
| Dimensions (dia. x length, mm) | 30.5 x 65.5 |
| FOV @ 1/2″ | 5° × 3.5° |
| FOV @ 1/3″ | 3.5° × 2.5° |
| FOV @ 2/3″ | 6.9° × 5.2° |
| Filter thread | M25.5x0.5 |
| Flange back | 17.526mm (in air) |
| Focus control | Manual with Lock |
| Focus range | 0.5 m - ∞ |
| Focus ring dia. | 30.5mm |
| Focusing range | 0.5m~inf |
| Front diameter | 18.4 mm |
| Iris control | Manual with Lock |
| Iris ring dia. | 29mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.5 |
| Operating temperature range | -10 to +70 °C |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Rear dia. | 28.5mm |
| Rear effective diameter | 10.7 mm |
| Resolution (MP) | 1.3 |
| Weight (g) | 68 |
