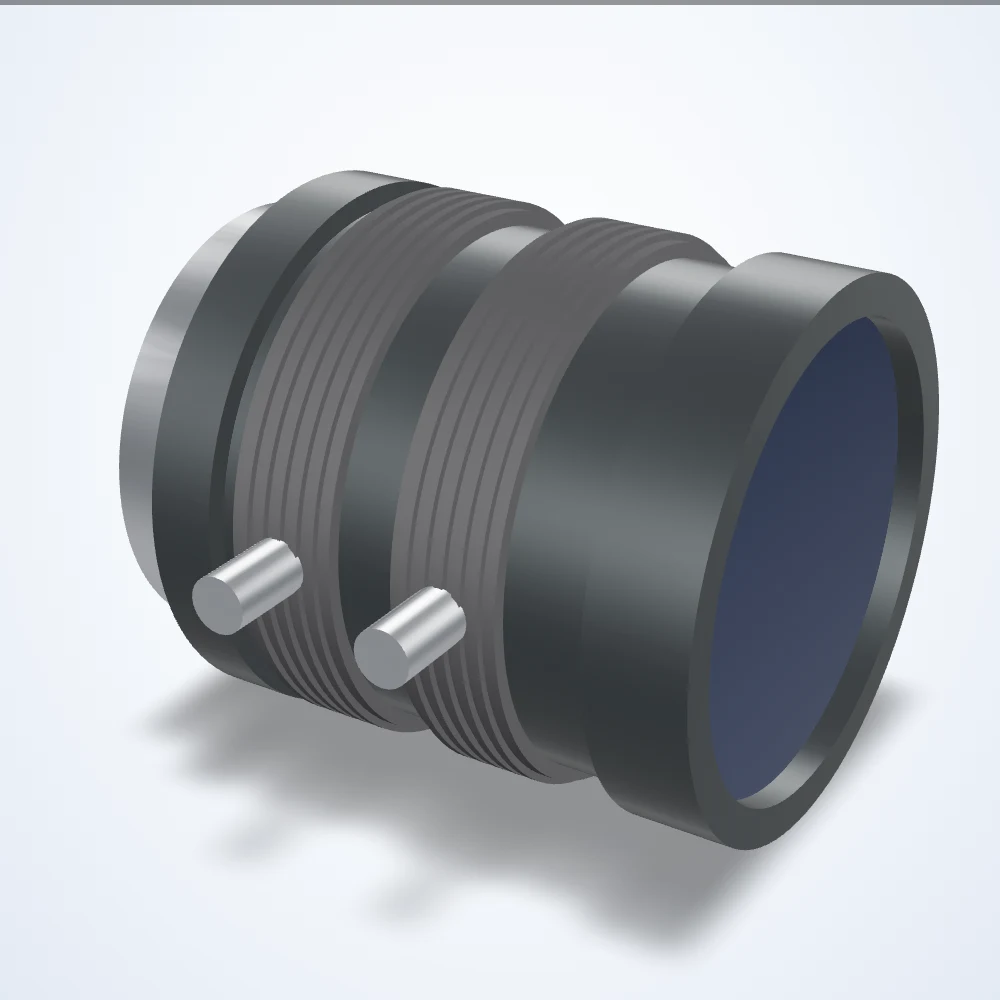

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 2/3", C-Mount (LS-FFL-0265)
Model LS-FFL-0265
35 mm lens, 2/3", C-Mount. Minimum object distance 300 mm. Aperture f/2.1 to f/22.
Specifications
| Model | LS-FFL-0265 |
|---|---|
| Focus Range | 0.3 m - ∞ |
| Front Diameter | 16 mm |
| Lens Type | Fixed Focal Length |
| Resolution (MP) | 1.3 |
| Resolution (Pixel Size) | 2.5 μm |
| Focal length (mm) | 35 |
| Aperture (F) | 2.1-22 |
| Max. sensor format | 2/3" |
| Minimum object distance (m) | 0.3 |
| Angle of view | 14.3 x 10.8 deg |
| Filter thread | M25.5x0.5 |
| Mount | C |
| Weight (g) | 44 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Dimensions (dia. x length, mm) | 30.5 x 32 |
| Focusing range | 0.3m~inf |
| Back focus (in air) | 15.53mm |
| Flange back | 17.526mm (in air) |
| Operating temperature | -10~+60 C |
| Angle of view 1/2" | 10.4 x 7.8 deg |
| Angle of view 1/3" | 7.8 x 5.9 deg |
