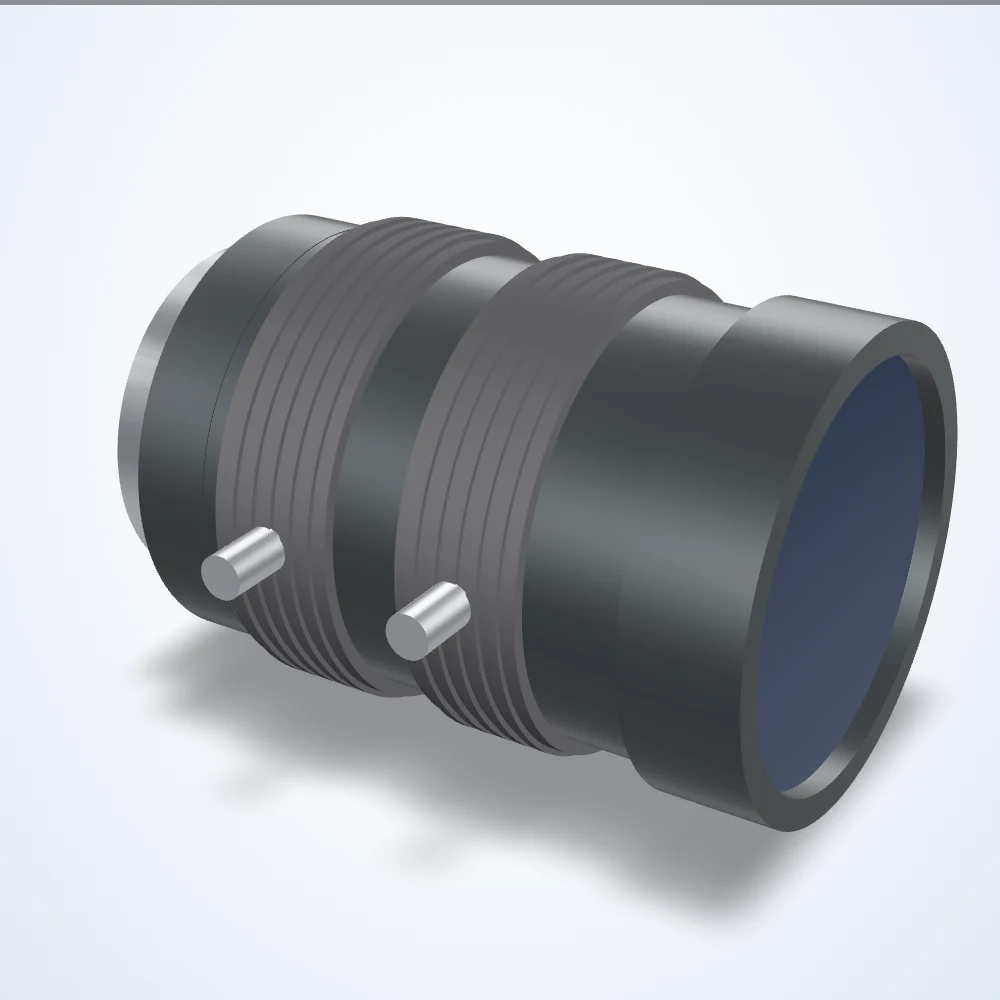

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
25 mm lens, 2/3", C-Mount (LS-FFL-0264)
Model LS-FFL-0264
25 mm lens, 2/3", C-Mount. Minimum object distance 150 mm. Aperture f/1.4 to f/22.
Specifications
| Model | LS-FFL-0264 |
|---|---|
| Focus Range | 0.15 m - ∞ |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Resolution (MP) | 3 |
| Resolution (Pixel Size) | 4 μm |
| Focal length (mm) | 25 |
| Aperture (F) | 1.4-22 |
| Max. sensor format | 2/3" |
| Minimum object distance (m) | 0.15 |
| Angle of view | 20.0 x 15.1 deg |
| Filter thread | M30.5x0.5 |
| Mount | C |
| Weight (g) | 103 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Dimensions (dia. x length, mm) | 34 x 47.1 |
| Focusing range | 0.15m~inf |
| Back focus (in air) | 17.17mm |
| Flange back | 17.526mm (in air) |
| Operating temperature | -10~+60 C |
| Angle of view 1/2" | 14.6 x 11.0 deg |
| Angle of view 1/3" | 11.0 x 8.2 deg |
