Home / Lenses / Machine vision lenses / 16 mm lens, 2/3", C-Mount

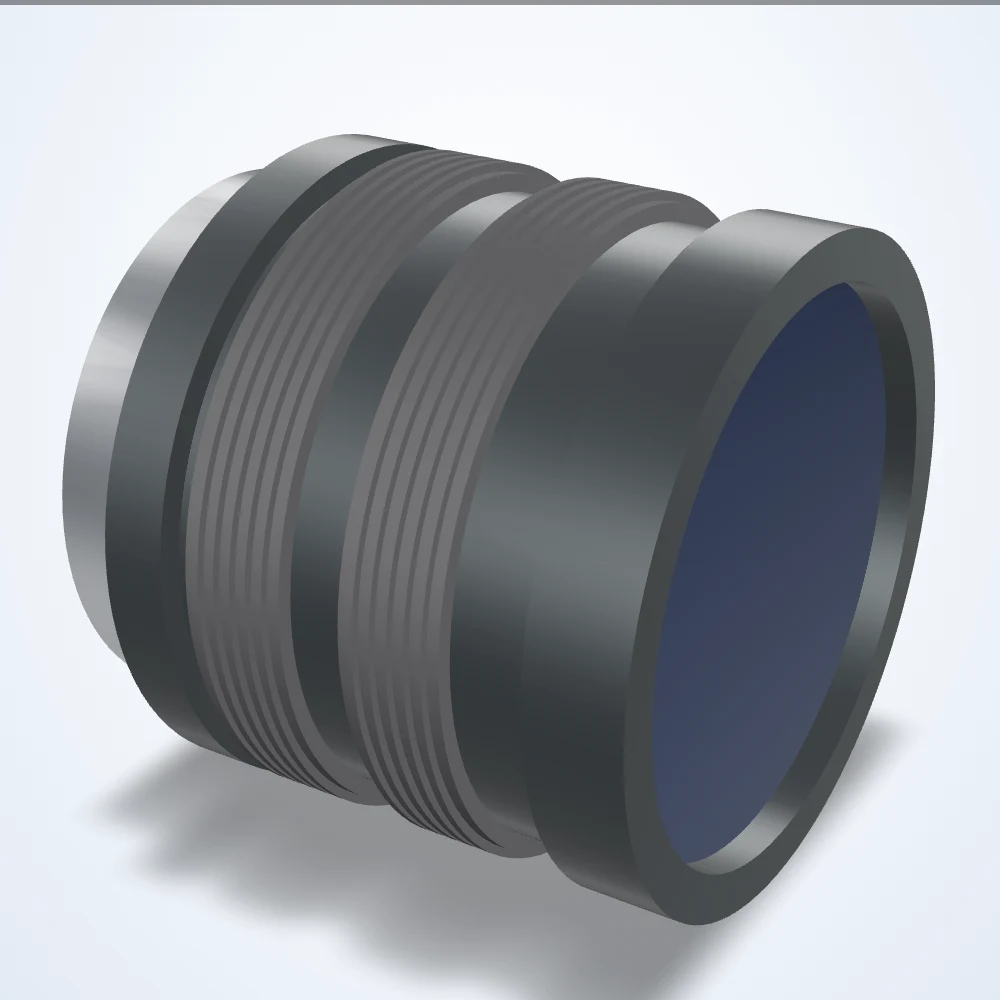

16 mm lens, 2/3", C-Mount (LS-FFL-0260)

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

16 mm lens, 2/3", C-Mount (LS-FFL-0260)

Model LS-FFL-0260

16 mm lens, 2/3", C-Mount. Minimum object distance 290 mm. Aperture f/1.4 to f/16.

Datasheet (PDF) - LS-FFL-0260

Specifications

Model	LS-FFL-0260
Focus Range	0.29 m - ∞
Front Diameter	11.5 mm
Lens Type	Fixed Focal Length
Resolution (MP)	1.3
Focal length (mm)	16
Aperture (F)	1.4-16
Max. sensor format	2/3"
Minimum object distance (m)	0.29
Angle of view	30.9 x 23.2 deg
Filter thread	M25.5x0.5
Mount	C
Weight (g)	50
Operation	Focus: manual / Iris: manual
Dimensions (dia. x length, mm)	30 x 25
Focusing range	0.29m~inf
Back focus (in air)	11.85mm
Flange back	17.526mm (in air)
Operating temperature	-5~+50 C
Angle of view 1/2"	22.5 x 16.9 deg
Angle of view 1/3"	16.9 x 12.7 deg
