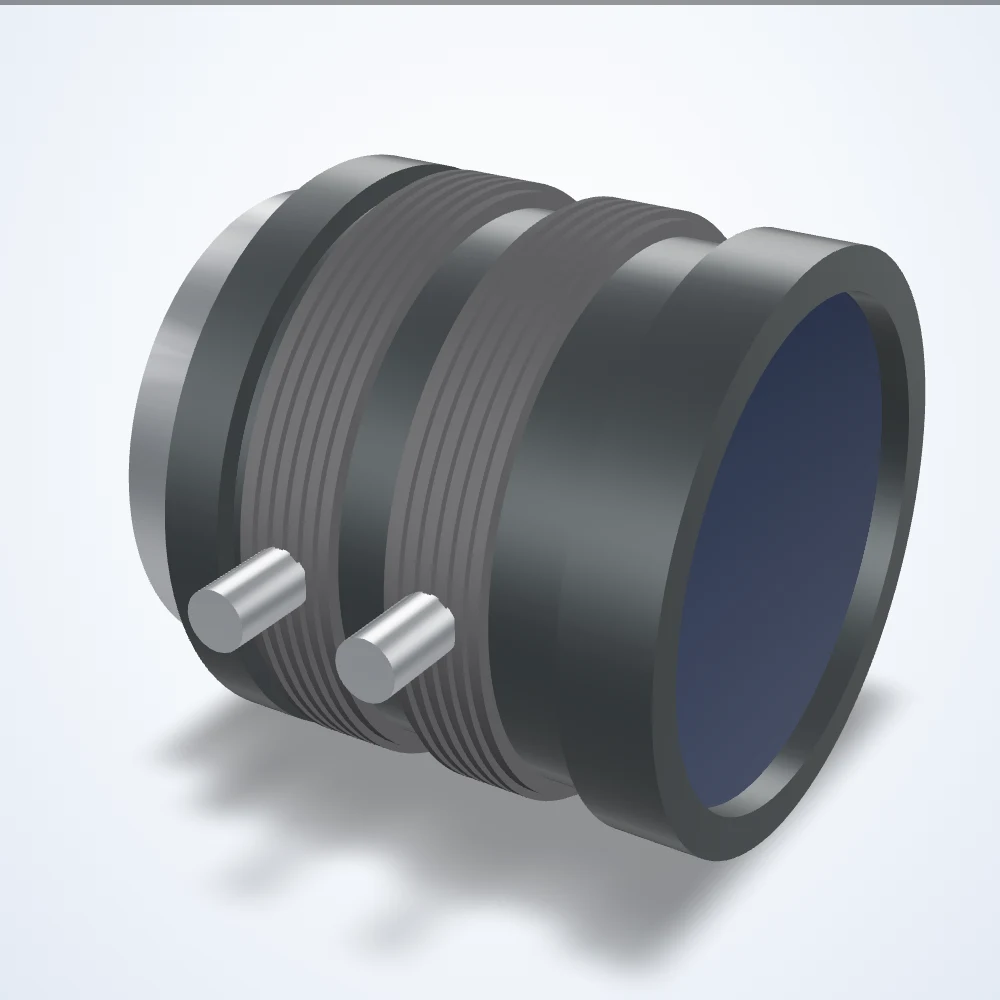

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
12 mm lens, 2/3", C-Mount (LS-FFL-0259)
Model LS-FFL-0259
12 mm lens, 2/3", C-Mount. Minimum object distance 260 mm. Aperture f/1.8 to f/16.
Specifications
| Model | LS-FFL-0259 |
|---|---|
| Focus Range | 0.26 m - ∞ |
| Front Diameter | 11.7 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Resolution (MP) | 1.3 |
| Resolution (Pixel Size) | 2.5 μm |
| Focal length (mm) | 12 |
| Aperture (F) | 1.8-16 |
| Max. sensor format | 2/3" |
| Minimum object distance (m) | 0.26 |
| Angle of view | 40.9 x 30.9 deg |
| Filter thread | M25.5x0.5 |
| Mount | C |
| Weight (g) | 46 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Dimensions (dia. x length, mm) | 30.5 x 27 |
| Focusing range | 0.26m~inf |
| Back focus (in air) | 11.03mm |
| Flange back | 17.526mm (in air) |
| Operating temperature | -10~+45 C |
| Rear dia. | 28.5mm |
| Angle of view 1/2" | 30.0 x 22.4 deg |
| Angle of view 1/3" | 22.4 x 16.6 deg |
