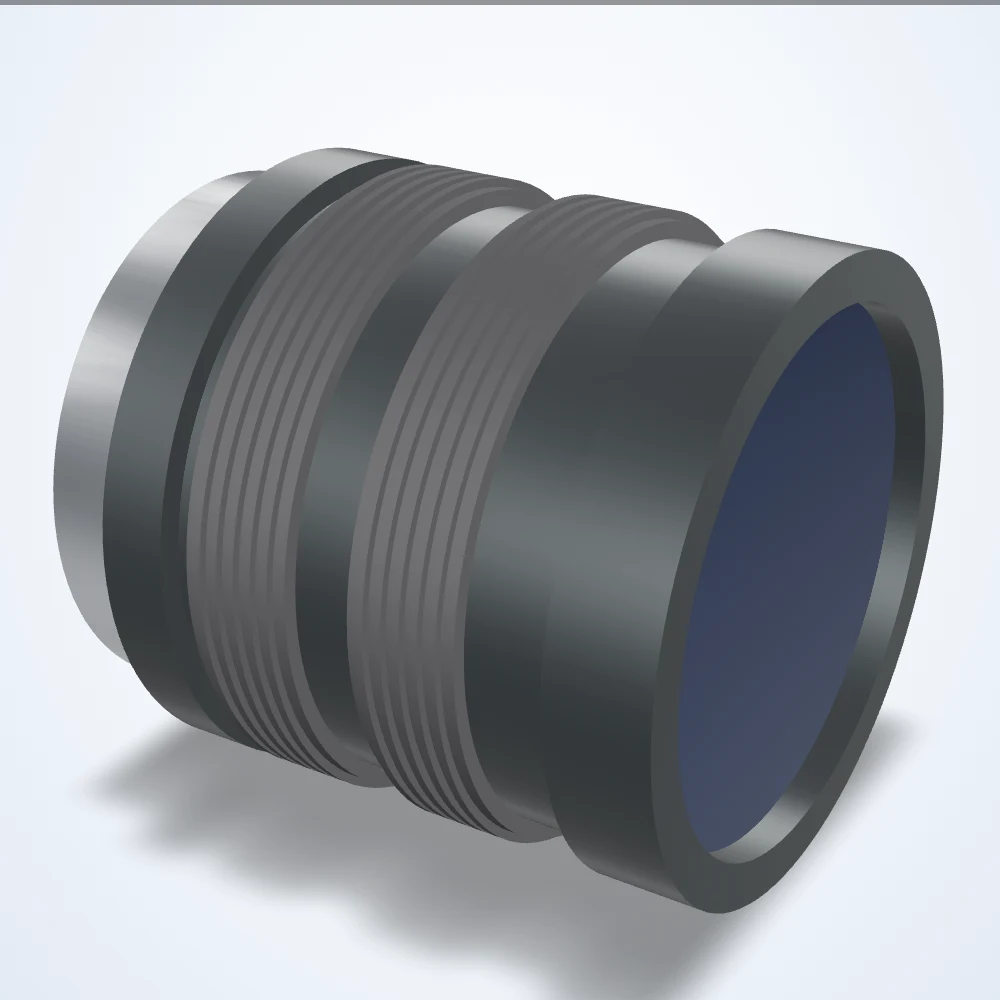

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
12 mm lens, 2/3", C-mount (LS-FFL-0258)
Model LS-FFL-0258
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0258 |
|---|---|
| Focal length (mm) | 12 |
| Max. sensor format | 2/3" |
| Mount | C-mount |
| Aperture (F) | 1.8-16 |
| Angle of view | 40.9 x 30.9 deg |
| Operating temperature | -10~+45 C |
| Angle of view 1/2" | 30.0 x 22.4 deg |
| Angle of view 1/3" | 22.4 x 16.6 deg |
| Back focus (in air) | 11.03mm |
| Dimensions (dia. x length, mm) | 29 x 27 |
| FOV @ 1/2″ | 30° × 22.4° |
| FOV @ 1/3″ | 22.4° × 16.6° |
| FOV @ 2/3″ | 40.9° × 30.9° |
| Filter thread | M25.5x0.5 |
| Flange back | 17.526mm (in air) |
| Focus control | Manual |
| Focus range | 0.26 m - ∞ |
| Focusing range | 0.26m~inf |
| Front diameter | 11.7 mm |
| Iris control | Manual |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.26 |
| Operating temperature range | -10 to +45 °C |
| Operation | Focus: manual / Iris: manual |
| Rear dia. | 28.5mm |
| Rear effective diameter | 8 mm |
| Resolution (MP) | 1.3 |
| Weight (g) | 40 |
