Home / Lenses / Machine vision lenses / Lens, 1", C-Mount

Lens, 1", C-Mount (LS-FFL-0256)

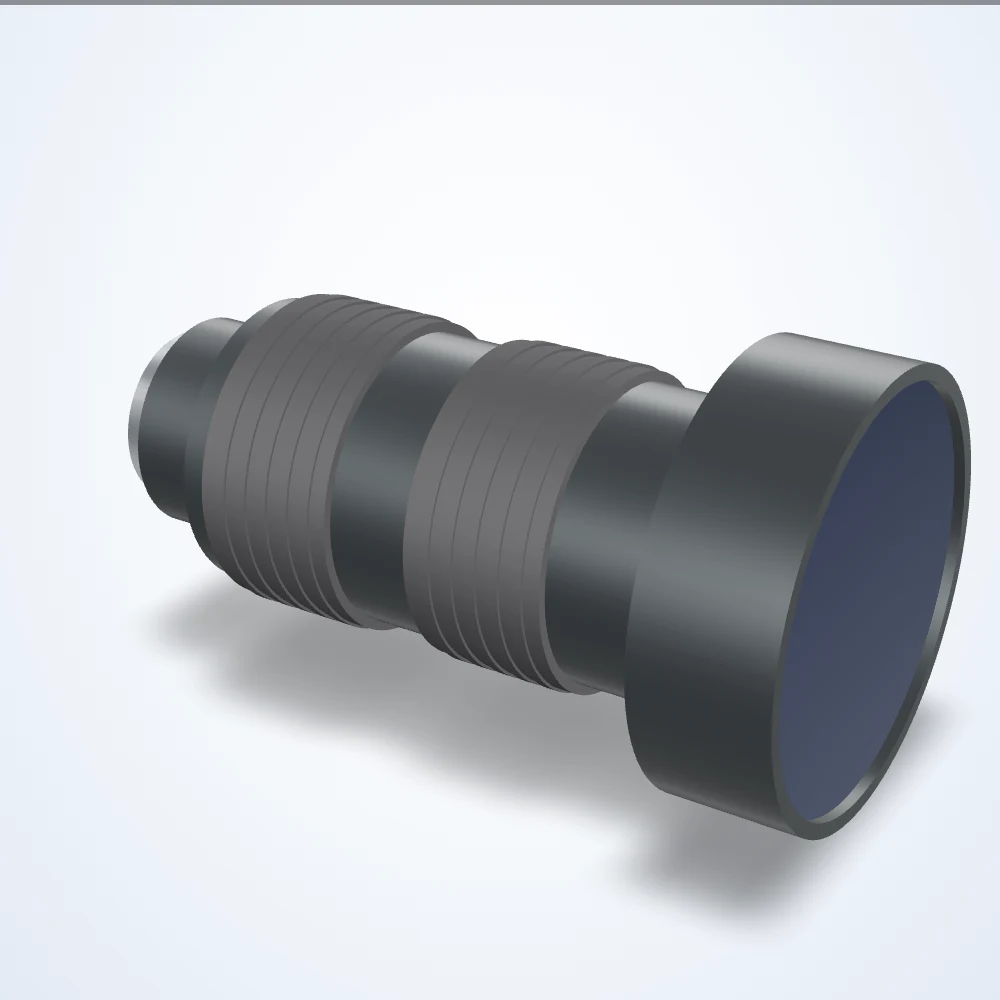

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

Lens, 1", C-Mount (LS-FFL-0256)

Model LS-FFL-0256

Lens, 1", C-Mount. Working distance 0.44 mm - ∞. Aperture f/3.8 to f/16.

Datasheet (PDF) - LS-FFL-0256

Specifications

Model	LS-FFL-0256
Back Focal Length	71.3 mm
Focus Control	Manual
Image Circle Diameter	16 mm
Iris Control	Manual
Lens Type	Ultraviolet
Working Distance	0.44 mm - ∞
Focal length (mm)	78
Aperture (F)	F3.8-F16 (iris scale)
Mount	C
Dimensions (dia. x length, mm)	62.5 x 109.3
Barrel markings	UV LENS, 78mm, F/3.8, NEAR/FAR
Front section length	71.9 mm (95.0 at MOD)
Rear section length	54.9 mm
Front inner diameter	Ø55
Flange back	17.526 mm
Mount thread	1-32UN-2A
Mount protrusion	4 mm
Finish	Aventurine Black
