Home / Lenses / Machine vision lenses / Lens, 1", C-Mount

Lens, 1", C-Mount (LS-FFL-0255)

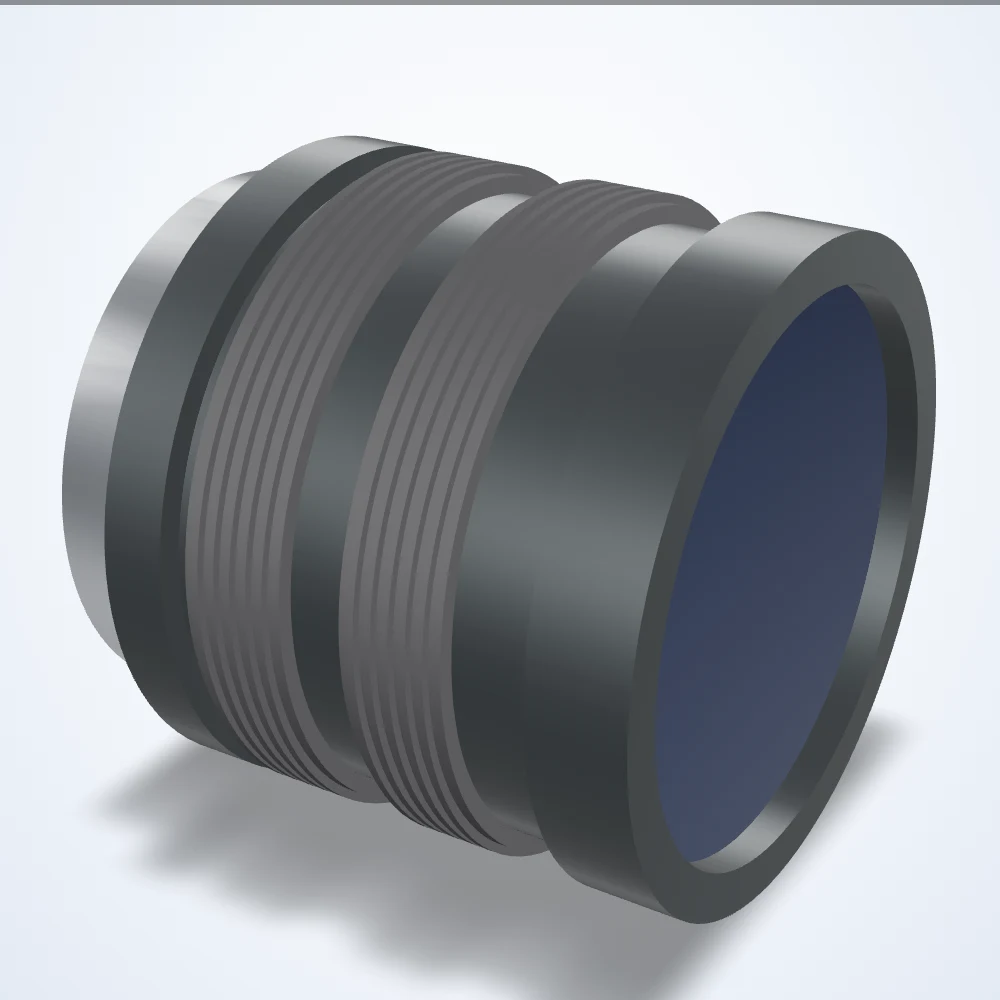

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

Lens, 1", C-Mount (LS-FFL-0255)

Model LS-FFL-0255

Lens, 1", C-Mount. Working distance 0.23 mm - ∞. Aperture f/2.8 to f/16.

Datasheet (PDF) - LS-FFL-0255

Specifications

Model	LS-FFL-0255
Back Focal Length	22.1 mm
Focus Control	Manual
Image Circle Diameter	16 mm
Iris Control	Manual
Lens Type	Ultraviolet
Working Distance	0.23 mm - ∞
Focal length (mm)	25
Aperture (F)	F2.8-F16 (iris scale)
Mount	C
Dimensions (dia. x length, mm)	30 x 25.37
Barrel markings	QUARTZ LENS, 25mm, F/2.8, NEAR/FAR
Filter thread	Ø25.5, P=0.5
Front inner diameter	Ø28
Flange back	17.526 mm
Mount thread	1-32UN-2A
Mount protrusion	4 mm
Finish	Aventurine Black

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
