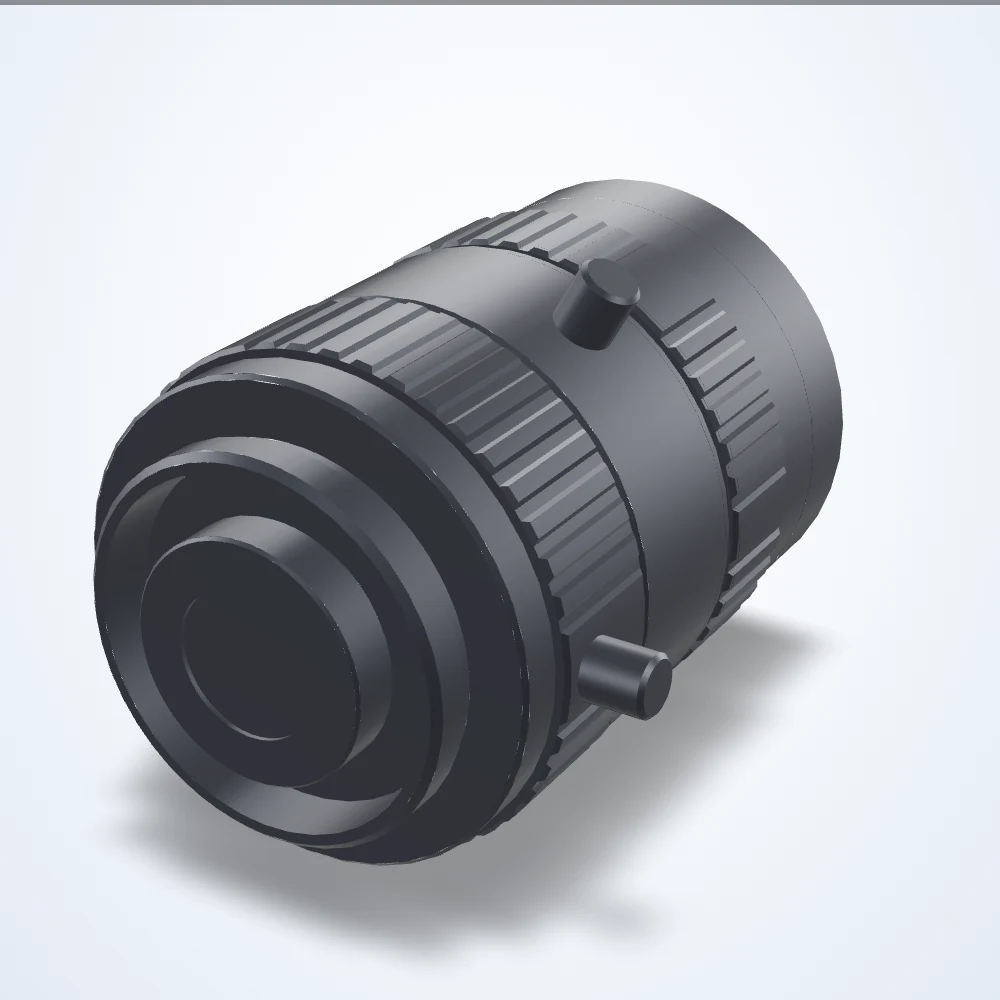

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
50 mm lens, 2/3", C-mount (LS-FFL-0254)
Model LS-FFL-0254
Machine vision lens for industrial cameras. Working distance 0.5 m to ∞.
Specifications
| Model | LS-FFL-0254 |
|---|---|
| Focal length | 50 mm |
| Working distance | 0.5 m to ∞ |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Aov @ 1/2 | 9.8 ° |
| Aov @ 2/3 | 13.1 ° |
| Aperture (max) | f/1.8 |
| Back focal length | 13.6 mm |
| Dimensions approximate | 38.2 x 33.5 x 33.5 mm |
| Filter thread | M30.5-0.5 |
| Focus control | Manual |
| Image circle | 11 mm |
| Iris control | Manual |
| Lens type | SWIR |
| Operating temperature range | -10 to 50°C |
| Wavelength | 400 - 1700 nm |
| Weight | 85 Grams |
