Machine vision lenses

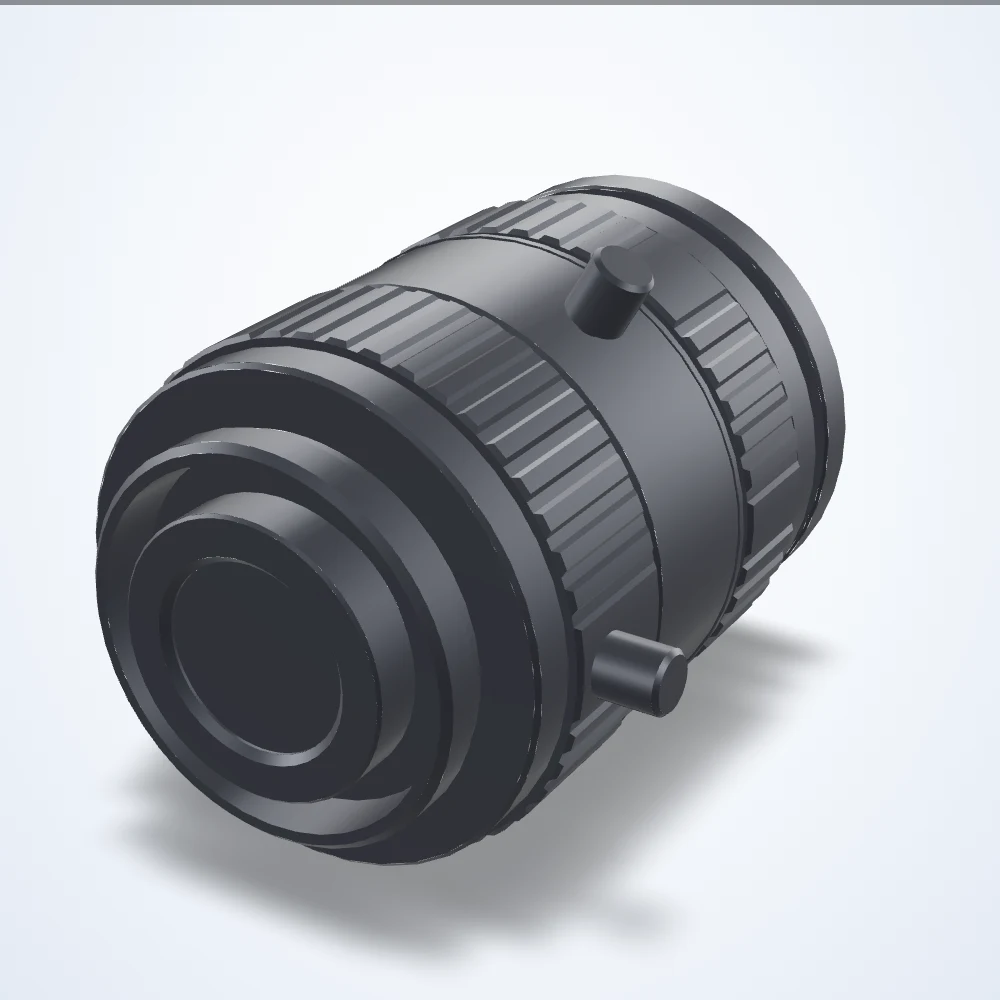

25 mm lens, 2/3", C-mount (LS-FFL-0253)
Model LS-FFL-0253
Machine vision lens for industrial cameras. Working distance 0.3 m to ∞.
Specifications
| Model | LS-FFL-0253 |
|---|---|
| Focal length | 25 mm |
| Working distance | 0.3 m to ∞ |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Aov @ 1/2 | 18.6 ° |
| Aov @ 2/3 | 24.9 ° |
| Aperture (max) | f/1.4 |
| Back focal length | 13.1 mm |
| Dimensions approximate | 36 x 33.5 x 33.5 mm |
| Filter thread | M30.5-0.5 |
| Focus control | Manual |
| Image circle | 11 mm |
| Iris control | Manual |
| Lens type | SWIR |
| Operating temperature range | -10 to 50°C |
| Wavelength | 400 - 1700 nm |
| Weight | 71 Grams |
