Machine vision lenses

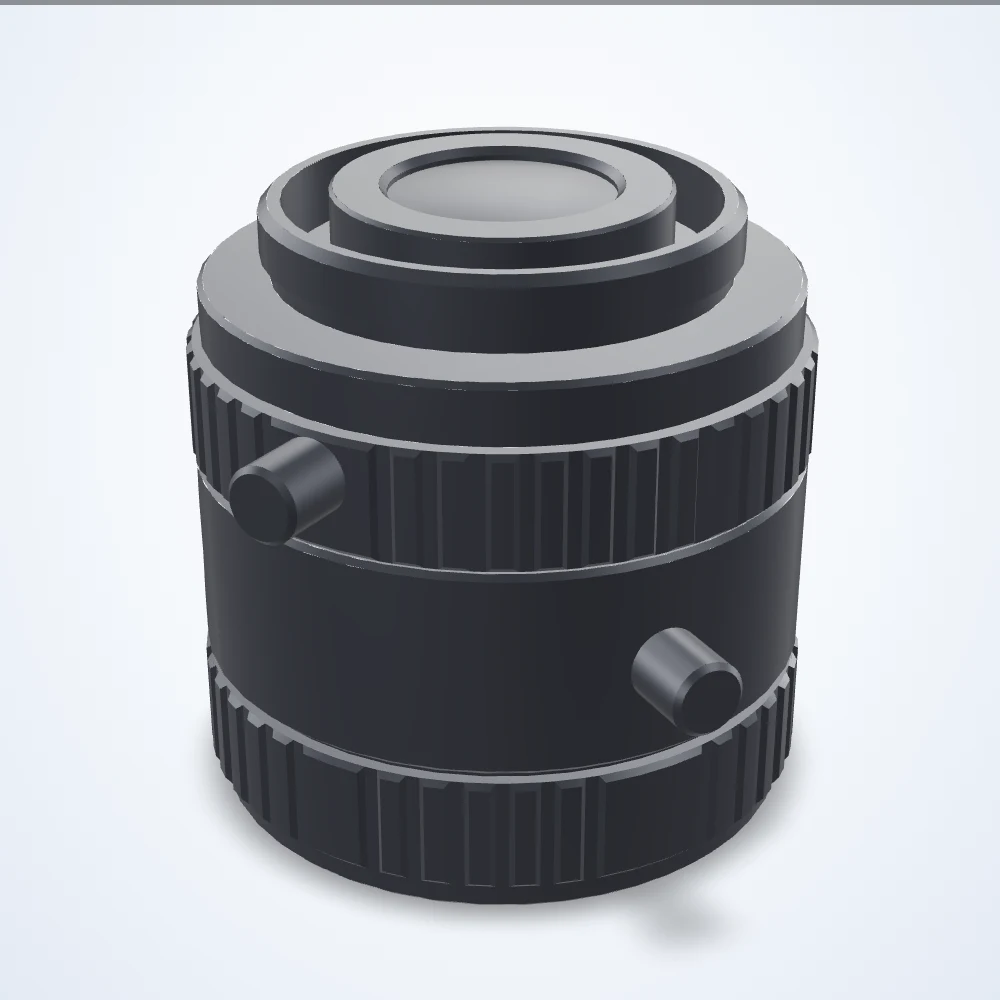

8 mm lens, 2/3", C-mount (LS-FFL-0250)
Model LS-FFL-0250
Machine vision lens for industrial cameras. Working distance 0.1 m to ∞.
Specifications
| Model | LS-FFL-0250 |
|---|---|
| Focal length | 8 mm |
| Working distance | 0.1 m to ∞ |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Aov @ 1/2 | 53 ° |
| Aov @ 2/3 | 67.1 ° |
| Aperture (max) | f/1.4 |
| Back focal length | 13.1 mm |
| Dimensions approximate | 28.2 x 33.5 x 33.5 mm |
| Filter thread | M30.5-0.5 |
| Focus control | Manual |
| Image circle | 11 mm |
| Iris control | Manual |
| Lens type | SWIR |
| Operating temperature range | -10 to 50°C |
| Wavelength | 400 - 1700 nm |
| Weight | 63 Grams |
