Home / Lenses / Machine vision lenses / 5 mm lens, 1/2", C-Mount

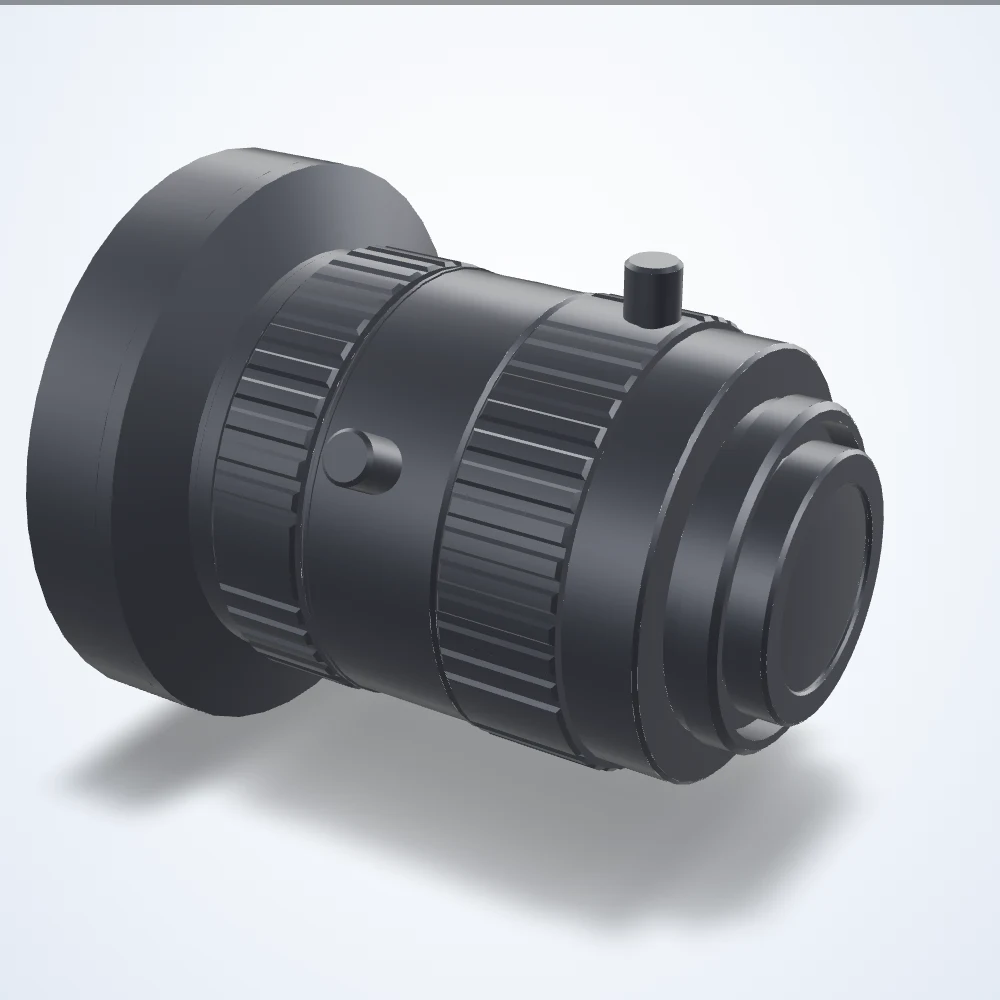

5 mm lens, 1/2", C-Mount (LS-FFL-0249)

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

5 mm lens, 1/2", C-Mount (LS-FFL-0249)

Model LS-FFL-0249

5 mm lens, 1/2", C-Mount. Working distance 0.1 - 0.9 mm. Aperture f/1.4 to Close.

Datasheet (PDF) - LS-FFL-0249 3D model (STEP) - LS-FFL-0249

Specifications

Model	LS-FFL-0249
Back Focal Length	10.8 mm
Filter Thread	M43-0.75
Focal Length	5 mm
Focus Control	Manual
Image Circle Diameter	8.2 mm
Imager Format	1/2"
Iris Control	Manual
Lens Type	SWIR
Mount	C-Mount
Working Distance	0.1 - 0.9 mm
ƒ/N Max	f/1.4
ƒ/N Min	Close
