Machine vision lenses

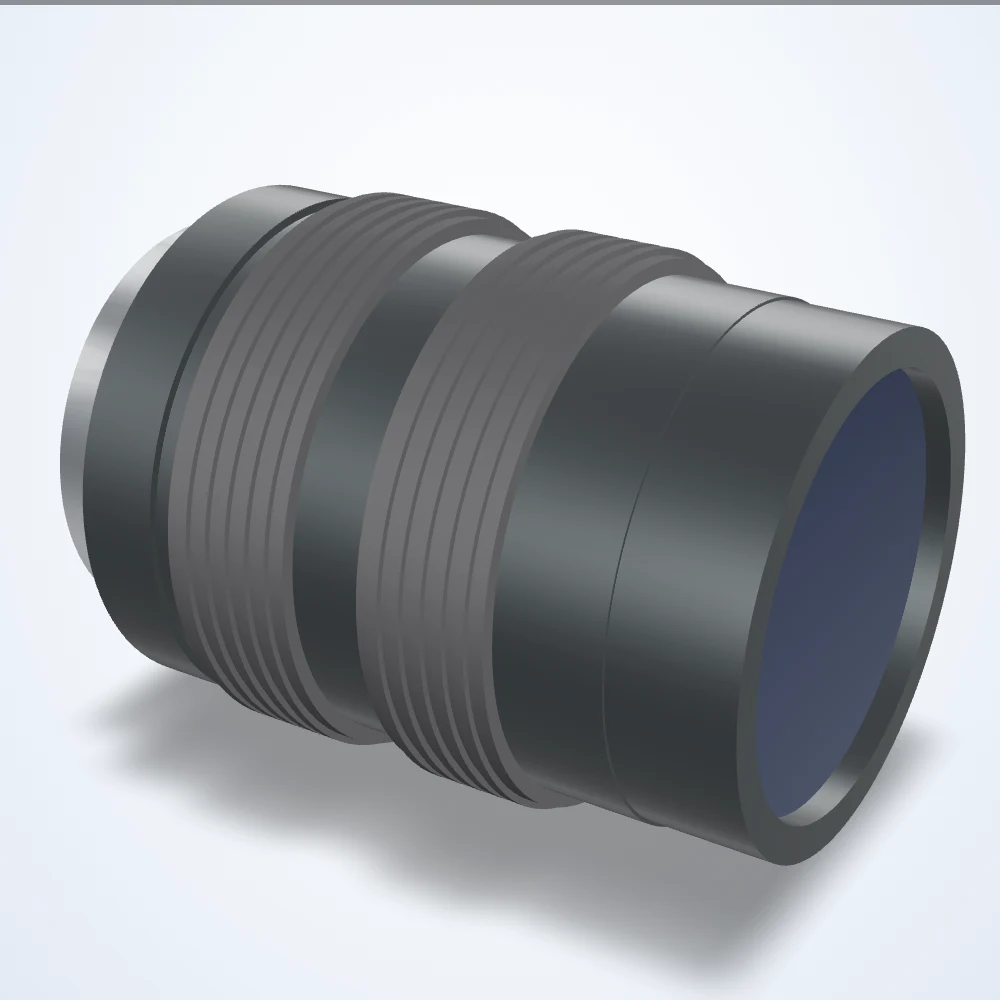

8 mm lens, 2/3", C-Mount (LS-FFL-0232)
Model LS-FFL-0232
8 mm lens, 2/3", C-Mount. Minimum object distance 100 mm. Aperture f/1.4 to f/16.
Specifications
| Model | LS-FFL-0232 |
|---|---|
| Front Diameter | 17.5 mm |
| IP Rating | IP67 |
| Image Circle Diameter | 11 mm |
| Image Size Dimensions | 8.8 mm x 6.6 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Resolution (Line Pairs / mm @ Center) | 120 |
| Resolution (Line Pairs / mm @ Corner) | 100 |
| Resolution (MP) | 2 |
| Resolution (Pixel Size) | 4.5 μm |
| Focal length (mm) | 8 |
| Aperture (F) | 1.4-16 |
| Max. sensor format | 2/3" |
| Minimum object distance (m) | 0.1 |
| Angle of view | 56.5 x 43.9 deg (D 67.0 deg) |
| Distortion | -0.6% (TV) |
| Filter thread | M27x0.5 |
| Mount | C |
| Weight (g) | 85 |
| Dimensions (dia. x length, mm) | 33 x 41.6 |
| Picture size (2/3") | 6.6x8.8mm |
| Optical magnification by WD | 500mm 0.016x / 400mm 0.020x / 300mm 0.027x / 200mm 0.039x / 100mm 0.075x |
| Flange back | 17.526mm in air |
| Back focus | 9.74mm in air (mechanical 9.1mm in air) |
| Front/rear effective dia. | Front 17.5mm / Rear 15.6mm |
| Exit pupil | 214.3mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -20~+60 C |
| Resolution center/corner | Center 100lp/mm / Corner 80lp/mm |
| Length at 0.1m | 42.2mm |
| Lock ring | Red |
| Entrance pupil (ENP) | 14.6mm |
