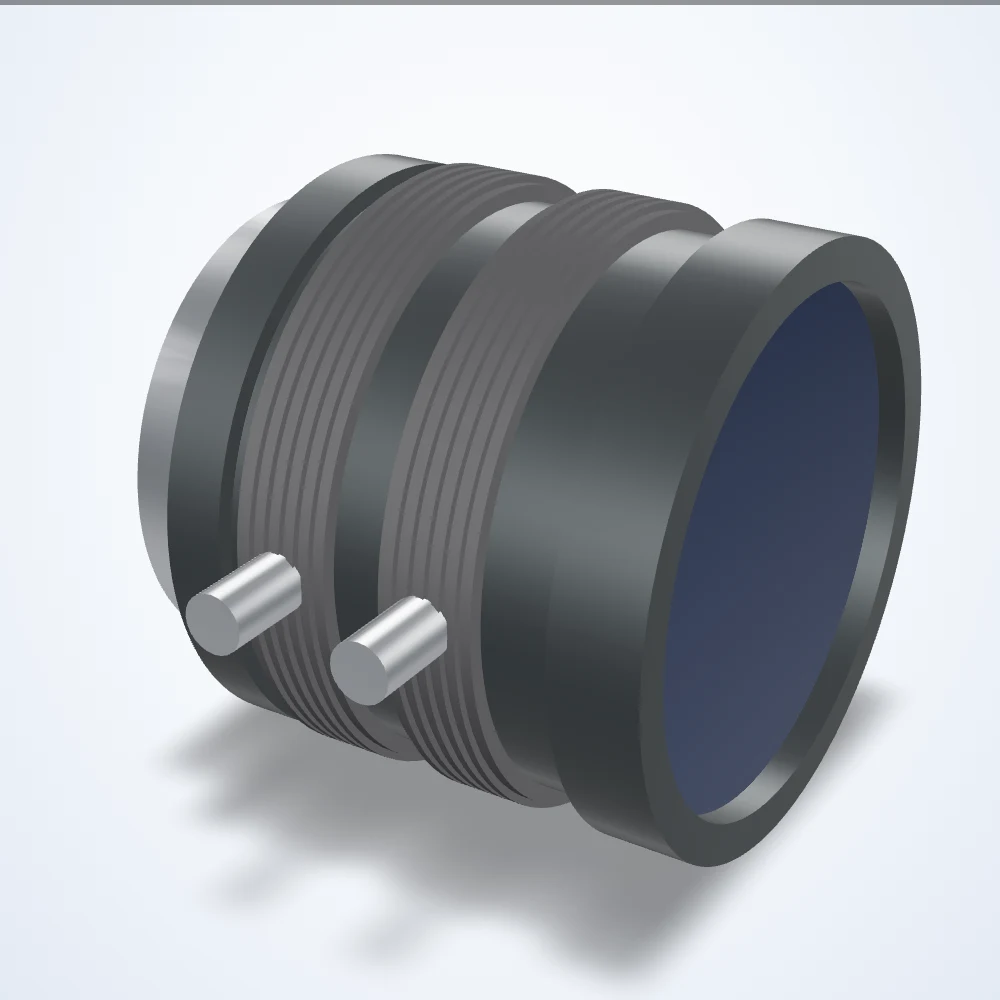

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
8 mm lens, 2/3", C-Mount (LS-FFL-0230)
Model LS-FFL-0230
8 mm lens, 2/3", C-Mount. Minimum object distance 150 mm. Aperture f/2.8 to f/16.
Specifications
| Model | LS-FFL-0230 |
|---|---|
| Front Diameter | 21.5 mm |
| Image Circle Diameter | 11 mm |
| Image Size Dimensions | 8.8 mm x 6.6 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Magnification | 0.05× |
| Resolution (Line Pairs / mm @ Center) | 160 |
| Resolution (Line Pairs / mm @ Corner) | 125 |
| Resolution (MP) | 5 |
| Resolution (Pixel Size) | 3.45 μm |
| Focal length (mm) | 8 |
| Aperture (F) | 2.8-16 |
| Max. sensor format | 2/3" |
| Minimum object distance (m) | 0.15 |
| Angle of view | 57.6 x 44.4 deg (D 69.3 deg) |
| Distortion | -0.85% (TV) |
| Filter thread | M30.5x0.5 |
| Mount | C |
| Weight (g) | 55 |
| Dimensions (dia. x length, mm) | 32 x 27 |
| Name | 2/3" f=8mm F2.8 5MP |
| Picture size (2/3") | 6.6x8.8mm |
| Field of view at MOD (2/3") | V 132mm / H 178mm / D 226mm |
| Flange back | 17.526mm in air |
| Back focus | 10.8mm in air |
| Front/rear effective dia. | Front 21.5mm / Rear 11.9mm |
| Exit pupil | -42.8mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -20~+60 C |
| Resolution center/corner | Center 160lp/mm / Corner 100lp/mm |
| Length at 0.15m | 27.429mm |
| Thumb screw | M2 |
| Entrance pupil (E.P.) | 14.9mm |
