Machine vision lenses

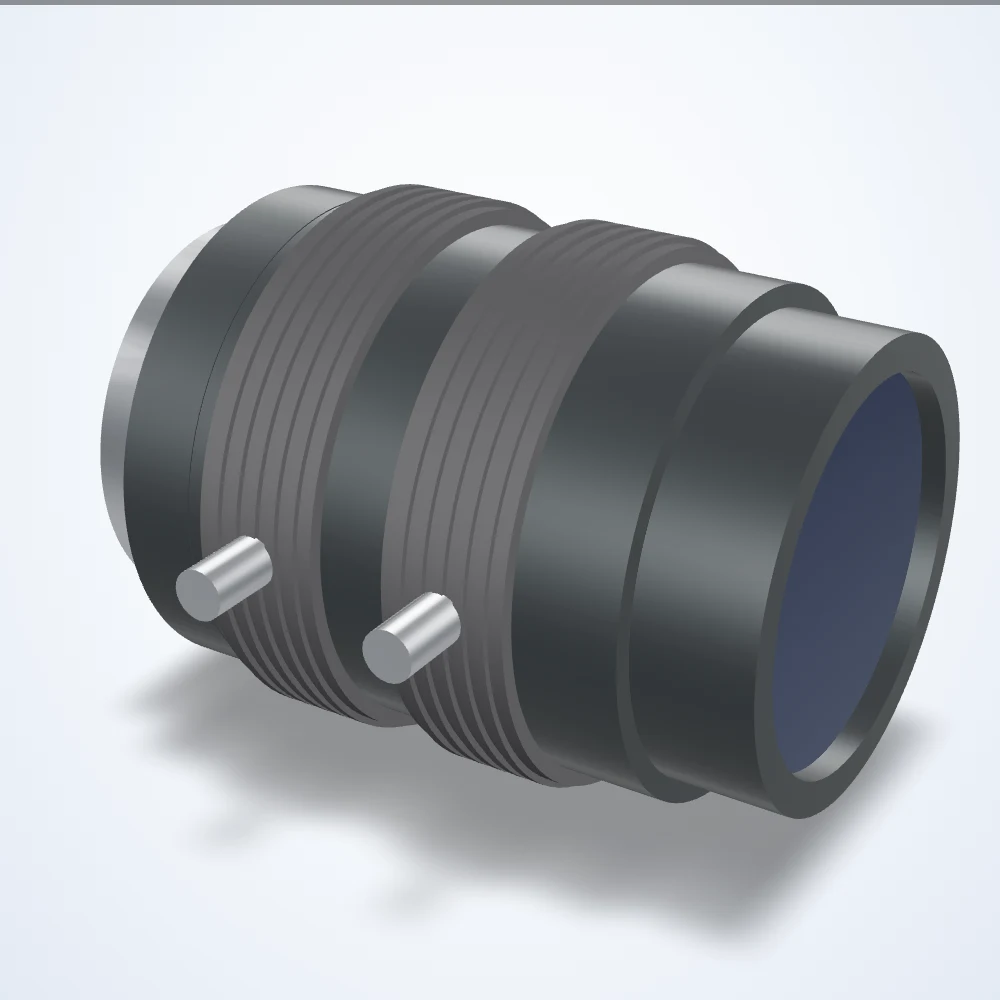

8 mm lens, 2/3", C-mount (LS-FFL-0229)
Model LS-FFL-0229
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0229 |
|---|---|
| Focal length (mm) | 8 |
| Max. sensor format | 2/3" |
| Mount | C-mount |
| Aperture (F) | 1.4-Close |
| Angle of view | 56.5 x 43.9 deg (D 66.7 deg) |
| Distortion | -0.6% (TV) |
| Angle of view @ 1/1.8″ | 47.4° × 36.3° |
| Angle of view @ 1/2″ | 42.6° × 32.5° |
| Angle of view @ 2/3″ | 56.5° × 43.9° |
| Back focus | 9.74mm in air |
| Dimensions (dia. x length, mm) | 34 x 41.6 |
| Entrance pupil (enp) | 14.6mm |
| Exit pupil | 214.3mm |
| Filter thread | M27x0.5 |
| Flange back | 17.526mm in air |
| Focus control | Manual |
| Focus range | 0.1 m - ∞ |
| Front diameter | 17.5 mm |
| Front/rear effective dia. | Front 17.5mm / Rear 15.6mm |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| Length at 0.1m | 42.2mm |
| Lens type | Fixed Focal Length |
| Magnification with 1mm ring | 0.2× |
| Minimum object distance (m) | 0.1 |
| Minimum object distance with 1mm ring | 30 mm |
| Operating temperature range | -10 to +50 °C |
| Picture size (2/3") | 6.6x8.8mm |
| Rear effective diameter | 15.6 mm |
| Resolution (line pairs / mm @ center) | 120 |
| Resolution center/corner | Center 100lp/mm / Corner 80lp/mm |
| Shooting range at mod (2/3") | V 90.0mm / H 120.3mm / D 148.6mm |
| Spectrum | Visible |
| Storage temperature range | -20~+60 C |
| Temperature range | -10~+50 C |
| Thumb screw | M2 |
| Tv distortion (%) | −0.6 |
| Weight (g) | 90 |
