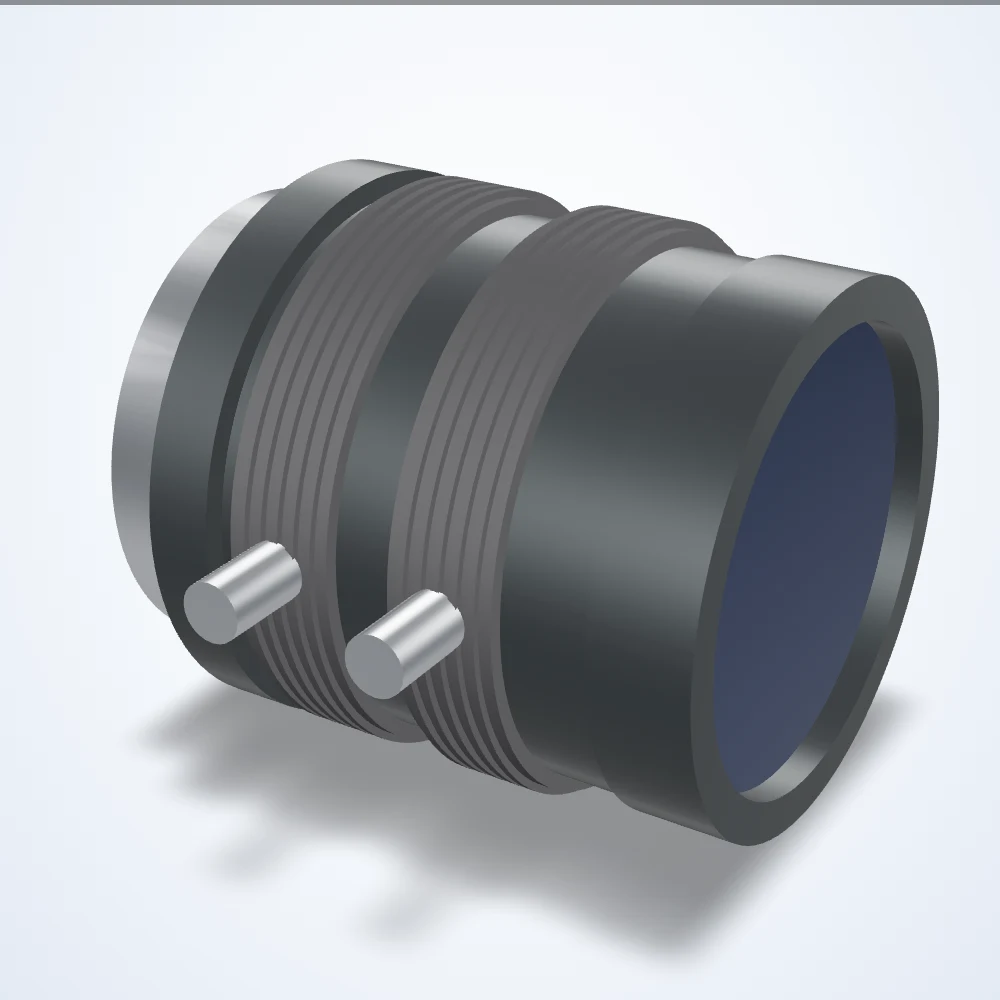

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
8 mm lens, 2/3", C-mount (LS-FFL-0227)
Model LS-FFL-0227
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0227 |
|---|---|
| Focal length (mm) | 8 |
| Max. sensor format | 2/3" |
| Mount | C-mount |
| Aperture (F) | 1.4-16 |
| Angle of view | 64.2 x 47.7 deg (D 81.7 deg) |
| Distortion | -6.2% (TV) |
| Angle of view @ 1/1.8″ | 52.4° × 39.1° |
| Angle of view @ 1/2″ | 46.2° × 34.6° |
| Angle of view @ 2/3″ | 64.2° × 47.7° |
| Back focus | 11.3mm in air |
| Dimensions (dia. x length, mm) | 30 x 30 |
| Entrance pupil (e.p.) | 12.2mm |
| Exit pupil | -29.4mm |
| Filter thread | M27x0.5 |
| Flange back | 17.526mm in air |
| Focus control | Manual |
| Focus range | 0.1 m - ∞ |
| Front diameter | 17.4 mm |
| Front/rear effective dia. | Front 17.4mm / Rear 11.1mm |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| Length at 0.1m | 31.13mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Operating temperature range | -10 to +50 °C |
| Picture size (2/3") | 6.6x8.8mm |
| Rear effective diameter | 11.1 mm |
| Resolution (line pairs / mm @ center) | 100 |
| Resolution center/corner | Center 100lp/mm / Corner 40lp/mm |
| Shooting range at mod (2/3") | V 96.1mm / H 136.0mm / D 185.7mm |
| Spectrum | Visible |
| Storage temperature range | -20~+60 C |
| Temperature range | -10~+50 C |
| Thumb screw | M2 |
| Tv distortion (%) | −6.2 |
| Weight (g) | 60 |
