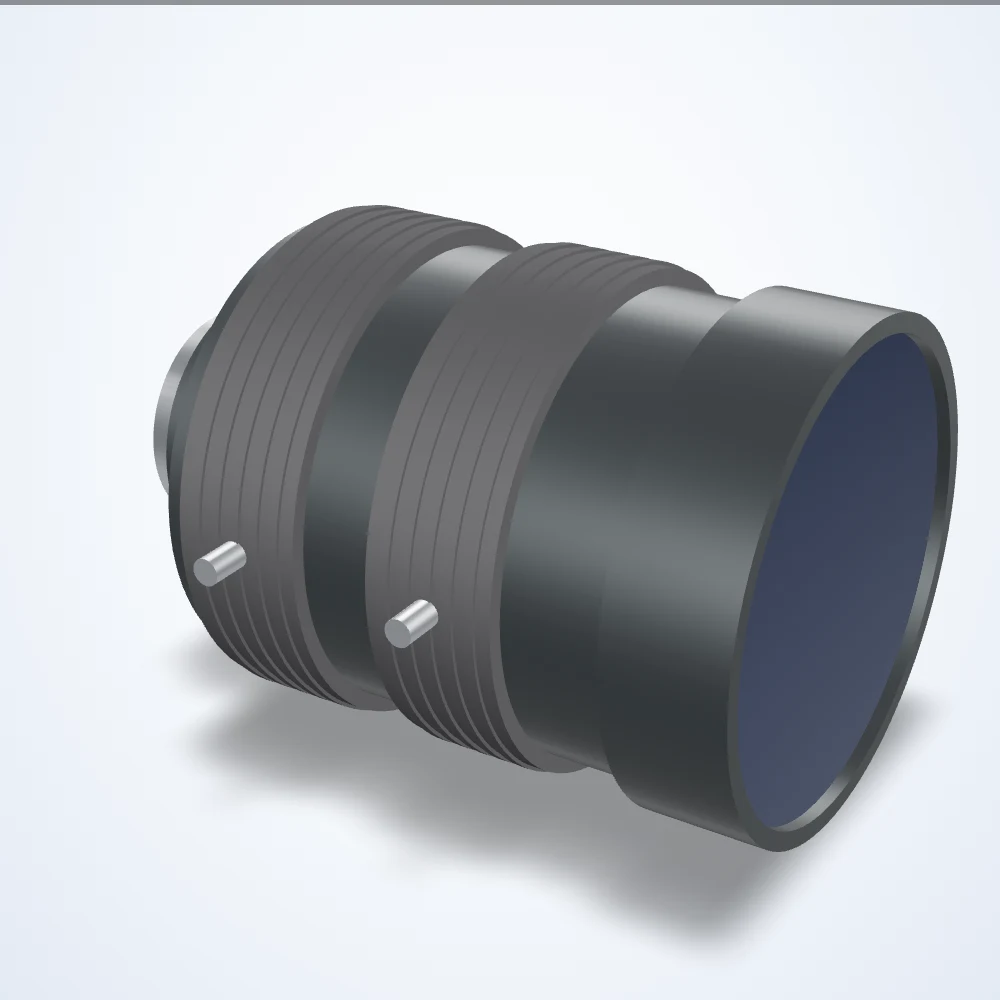

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
8 mm lens, 1", C-mount (LS-FFL-0226)
Model LS-FFL-0226
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0226 |
|---|---|
| Focal length (mm) | 8 |
| Max. sensor format | 1" |
| Mount | C-mount |
| Aperture (F) | 1.8-16 |
| Angle of view | 81.3 x 63.5 deg (D 96.2 deg) |
| Distortion | -3.7% (TV) |
| Angle of view @ 1/1.8″ | 48.6° × 36.9° |
| Angle of view @ 1″ | 81.3° × 63.5° |
| Angle of view @ 2/3″ | 58.7° × 44.8° |
| Back focus | 11.1mm in air |
| Body dia. | 37.5mm |
| Dimensions (dia. x length, mm) | 58 x 79.5 |
| Entrance pupil (e.p.) | 19.5mm |
| Exit pupil | -64.6mm |
| Field of view at mod (1") | V 272mm / H 387mm / D 491mm |
| Filter thread | M55x0.75 |
| Flange back | 17.526mm in air |
| Focus control | Manual |
| Focus range | 0.2 m - ∞ |
| Front diameter | 32.8 mm |
| Front/rear effective dia. | Front 32.8mm / Rear 15.0mm |
| Image circle | 16 mm |
| Image size dimensions | 12.8 mm x 9.6 mm |
| Iris control | Manual |
| Length at 0.2m | 78.85mm |
| Lens type | Fixed Focal Length |
| Magnification with 1mm ring | 0.16× |
| Minimum object distance (m) | 0.2 |
| Minimum object distance with 1mm ring | 35 mm |
| Name | 1" f=8mm F1.8 VIS-SWIR |
| Operating temperature range | -10 to +50 °C |
| Picture size (1") | 9.6x12.8mm |
| Rear dia. | 38mm |
| Rear effective diameter | 15 mm |
| Resolution (line pairs / mm @ center) | 60 |
| Resolution center/corner | Center 160lp/mm / Corner 80lp/mm |
| Shooting range at mod | 387.0(H)×272.0(V) |
| Spectrum | SWIR |
| Storage temperature range | -20~+60 C |
| Temperature range | -10~+50 C |
| Thumb screw | M2 |
| Tv distortion (%) | -3.1 |
| Weight (g) | 235 |
