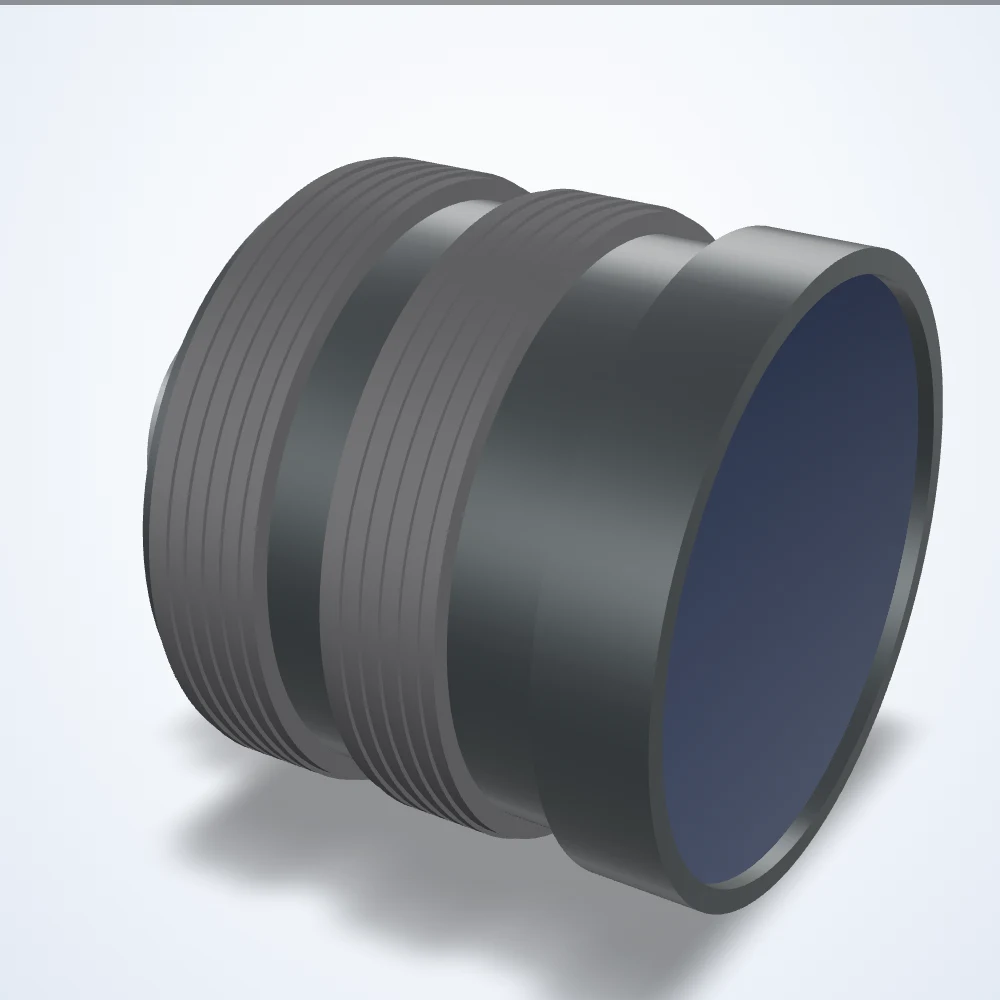

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
8 mm lens, 1", C-Mount (LS-FFL-0225)
Model LS-FFL-0225
8 mm lens, 1", C-Mount. Minimum object distance 100 mm. Aperture f/1.4 to f/8.
Specifications
| Model | LS-FFL-0225 |
|---|---|
| Front Diameter | 37.4 mm |
| Image Circle Diameter | 16 mm |
| Image Size Dimensions | 12.8 mm x 9.6 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Resolution (Line Pairs / mm @ Center) | 120 |
| Resolution (Line Pairs / mm @ Corner) | 80 |
| Resolution (MP) | 5 |
| Resolution (Pixel Size) | 5 μm |
| Focal length (mm) | 8 |
| Aperture (F) | 1.4-8 |
| Max. sensor format | 1" |
| Minimum object distance (m) | 0.1 |
| Angle of view | 79.7 x 63.0 deg (D 92.4 deg) |
| Distortion | -1.2% (TV) |
| Filter thread | M55x0.75 |
| Mount | C |
| Weight (g) | 183 |
| Dimensions (dia. x length, mm) | 58 x 58 |
| Picture size (1") | 9.6x12.8mm |
| Field of view at MOD (1") | V 143mm / H 196mm / D 247mm |
| Flange back | 17.526mm in air |
| Back focus | 11.2mm in air |
| Front/rear effective dia. | Front 37.4mm / Rear 17.5mm |
| Exit pupil | -45.9mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -20~+60 C |
| Resolution center/corner | Center 120lp/mm / Corner 100lp/mm |
| Length at 0.1m | 58.6mm |
| Rear barrel dia. | 42mm |
| Lock ring | Red |
