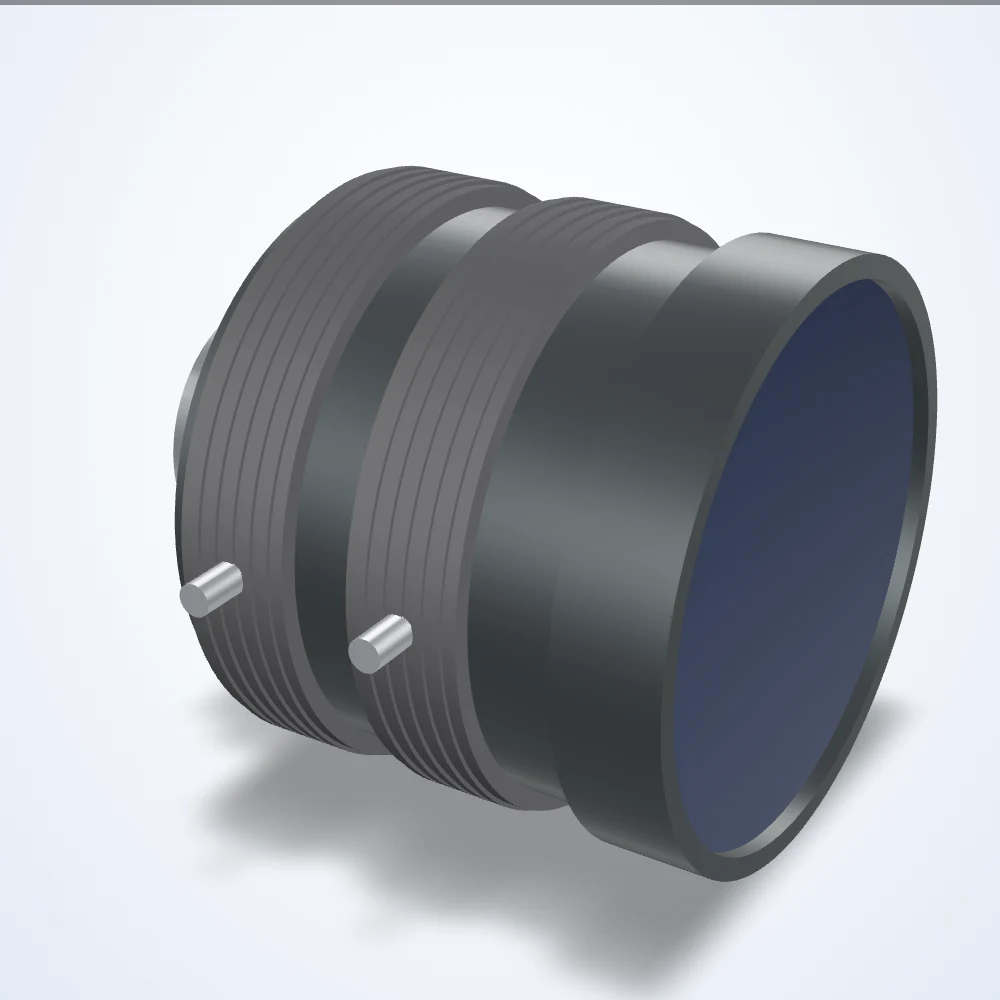

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
8 mm lens, 1", C-mount (LS-FFL-0223)
Model LS-FFL-0223
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0223 |
|---|---|
| Focal length (mm) | 8 |
| Max. sensor format | 1" |
| Mount | C-mount |
| Aperture (F) | 1.4-16 |
| Angle of view | 79.4 x 63.0 deg (D 92.4 deg) |
| Distortion | -1.2% (TV) |
| Angle of view @ 1/1.8″ | 48.5° × 36.9° |
| Angle of view @ 1″ | 79.4° × 63.0° |
| Angle of view @ 2/3″ | 58.3° × 44.7° |
| Back focus | 11.2mm in air |
| Dimensions (dia. x length, mm) | 57 x 58 |
| Entrance pupil (e.p.) | 19.9mm |
| Exit pupil | -45.9mm |
| Filter thread | M55x0.75 |
| Flange back | 17.526mm in air |
| Focus control | Manual |
| Focus range | 0.1 m - ∞ |
| Front diameter | 37.4 mm |
| Front/rear effective dia. | Front 37.4mm / Rear 17.5mm |
| Image circle | 16 mm |
| Image size dimensions | 12.8 mm x 9.6 mm |
| Iris control | Manual |
| Length at 0.1m | 59.25mm |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Operating temperature range | -10 to +50 °C |
| Picture size (1") | 9.6x12.8mm |
| Rear barrel dia. | 43mm |
| Rear effective diameter | 17.5 mm |
| Resolution (line pairs / mm @ center) | 120 |
| Resolution center/corner | Center 100lp/mm / Corner 80lp/mm |
| Shooting range at mod (1") | V 143.2mm / H 196.0mm / D 247.0mm |
| Spectrum | Visible |
| Storage temperature range | -20~+60 C |
| Temperature range | -10~+50 C |
| Thumb screw | M2 |
| Tv distortion (%) | −1.2 |
| Weight (g) | 205 |
