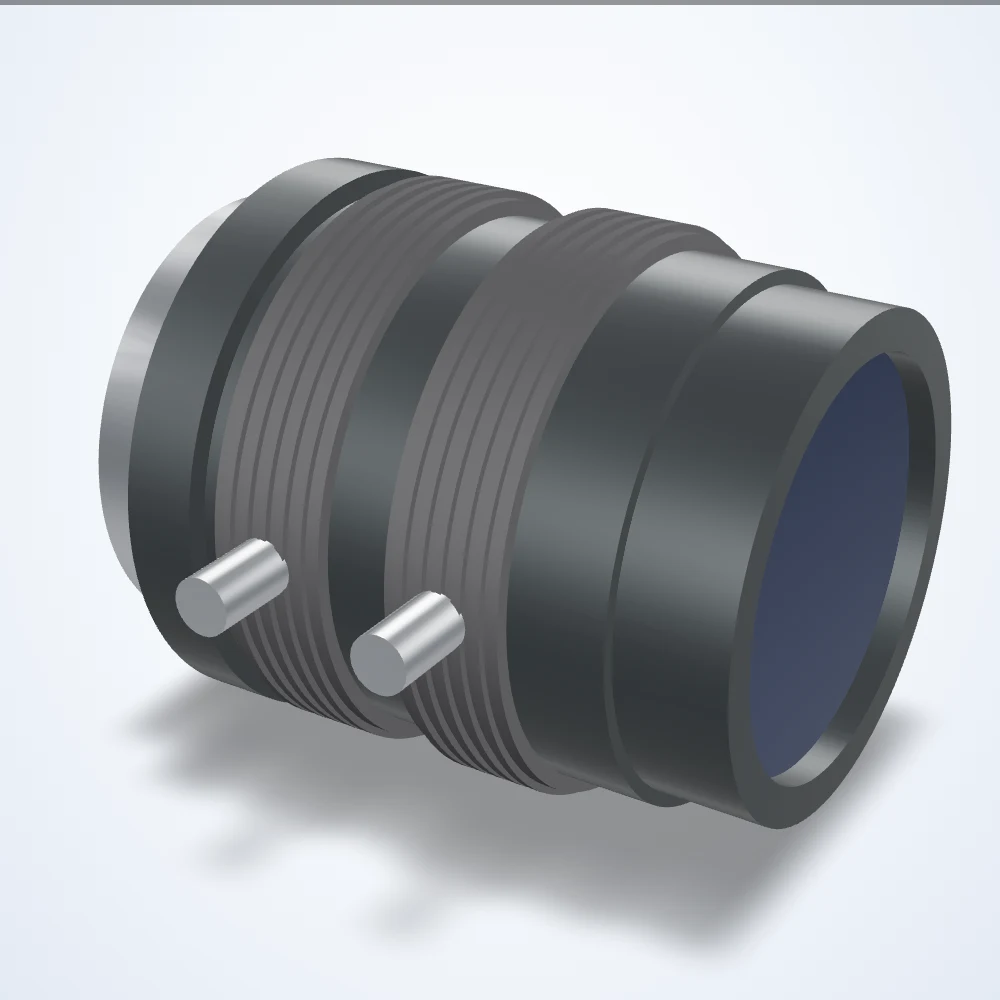

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
6 mm lens, 1/1.8", C-mount (LS-FFL-0218)
Model LS-FFL-0218
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0218 |
|---|---|
| Focal length (mm) | 6 |
| Max. sensor format | 1/1.8" |
| Mount | C-mount |
| Aperture (F) | 1.4-16 |
| Angle of view | H 62.7 x V 48.4 deg (D 75.2 deg) |
| Distortion | -1.0% (TV) |
| Angle of view @ 1/1.8″ | 62.7° × 48.4° |
| Angle of view @ 1/2″ | 57.3° × 44.0° |
| Angle of view @ 1/3″ | 44.0° × 33.7° |
| Back focus | 9.5mm in air |
| Dimensions (dia. x length, mm) | 31 x 34 |
| Entrance pupil position | 13.2 (E.P.) |
| Exit pupil | -47.4mm |
| Filter thread | M25.5x0.5 |
| Flange back | 17.526mm in air |
| Focus control | Manual |
| Focus range | 0.2 m - ∞ |
| Front diameter | 16.2 mm |
| Front/rear effective dia. | Front 16.2mm / Rear 8.7mm |
| Image circle | 9 mm |
| Image size dimensions | 7.2 mm x 5.4 mm |
| Iris control | Manual |
| Length at 0.2m | 34.58 |
| Lens type | Fixed Focal Length |
| Magnification with 1mm ring | 0.19× |
| Minimum object distance (m) | 0.2 |
| Minimum object distance with 1mm ring | 22 mm |
| Operating temperature range | -10 to +50 °C |
| Picture size (largest format) | 5.4x7.2mm |
| Rear effective diameter | 8.7 mm |
| Resolution (line pairs / mm @ center) | 100 |
| Resolution center/corner | Center 100lp/mm, corner 40lp/mm |
| Shooting range at mod | 255.8(H)×188.7(V) |
| Spectrum | Visible |
| Storage temperature range | -20~+60 C |
| Temperature range | -10~+50 C |
| Thumb screw | M2 |
| Tv distortion (%) | −1.0 |
| Weight (g) | 60 |
