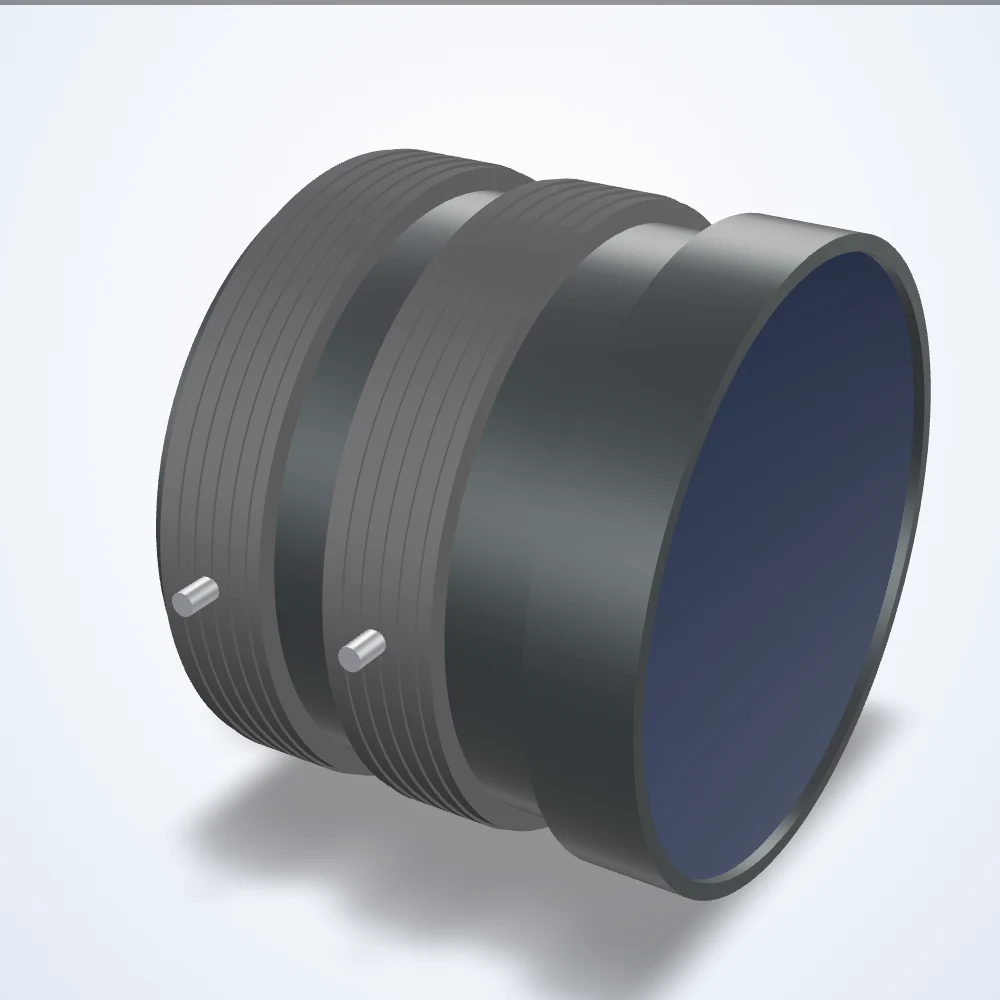

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
6.5 mm lens, 1.1", C-mount (LS-FFL-0214)
Model LS-FFL-0214
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0214 |
|---|---|
| Focal length (mm) | 6.5 |
| Max. sensor format | 1.1" |
| Mount | C-mount |
| Aperture (F) | 2.5-16 |
| Angle of view | H 95.7 x V 78.7 deg (D 109.1 deg) |
| Distortion | -1.51% (TV) |
| Angle of view @ 1.1″ | 95.7° × 78.7° |
| Angle of view @ 1″ | 89.9° × 73.0° |
| Angle of view @ 2/3″ | 68.1° × 53.5° |
| Back focus | 10.9mm in air |
| Dimensions (dia. x length, mm) | 84 x 79.1 |
| Entrance pupil position | 21.6 (E.P.) |
| Exit pupil | -61.7mm |
| Filter thread | M82x0.75 |
| Flange back | 17.526mm in air |
| Focus control | Manual |
| Focus range | 0.1 m - ∞ |
| Front diameter | 46 mm |
| Front/rear effective dia. | Front 46.0mm / Rear 18.5mm |
| Image circle | 17.6 mm |
| Image size dimensions | 14.1 mm x 10.6 mm |
| Iris control | Manual |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Operating temperature range | -10 to +50 °C |
| Picture size (largest format) | 10.6x14.1mm |
| Rear effective diameter | 18.5 mm |
| Resolution (line pairs / mm @ center) | 200 |
| Resolution center/corner | Center 200lp/mm, corner 100lp/mm |
| Shooting range at mod | 256(H)×190(V) |
| Spectrum | Visible |
| Storage temperature range | -20~+60 C |
| Temperature range | -10~+50 C |
| Thumb screw | M2 |
| Tv distortion (%) | −1.51 |
| Weight (g) | 300 |
