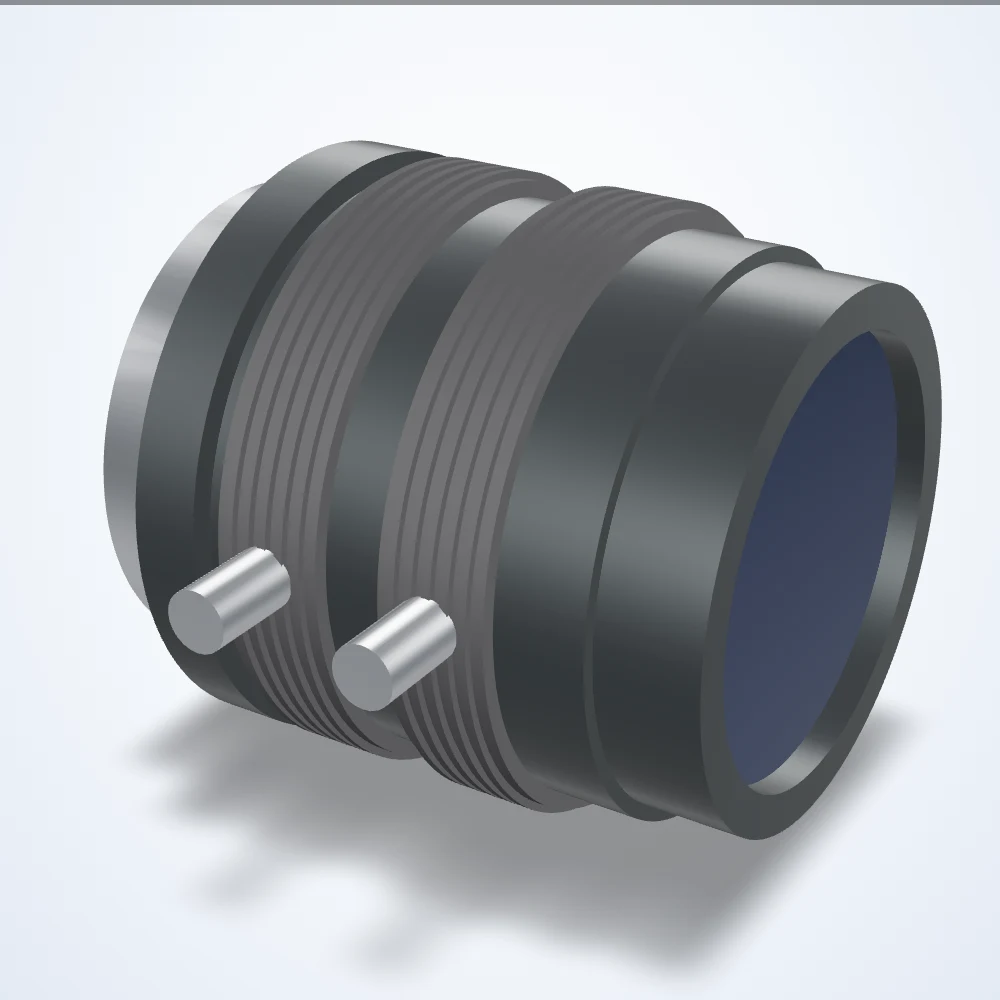

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
4.5 mm lens, 1/2", C-Mount (LS-FFL-0213)
Model LS-FFL-0213
4.5 mm lens, 1/2", C-Mount. Minimum object distance 200 mm. Aperture f/1.4 to f/16.
Specifications
| Model | LS-FFL-0213 |
|---|---|
| Front Diameter | 15.1 mm |
| Image Circle Diameter | 9 mm |
| Image Size Dimensions | 7.2 mm x 5.4 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Magnification | 0.02× |
| Resolution (Line Pairs / mm @ Center) | 100 |
| Resolution (Line Pairs / mm @ Corner) | 60 |
| Resolution (Pixel Size) | 4.5 μm |
| Focal length (mm) | 4.5 |
| Aperture (F) | 1.4-16 |
| Max. sensor format | 1/1.8" |
| Minimum object distance (m) | 0.2 |
| Angle of view | H 88.8 x V 66.9 deg (D 110.2 deg) |
| Distortion | -17.5% (TV) |
| Mount | C |
| Weight (g) | 55 |
| Dimensions (dia. x length, mm) | 31 x 29.5 |
| Picture size (largest format) | 5.4x7.2mm |
| Flange back | 17.526mm in air |
| Back focus | 10.0mm in air |
| Front/rear effective dia. | Front 15.1mm / Rear 10.1mm |
| Exit pupil | -49.2mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -20~+60 C |
| Resolution center/corner | Center 100lp/mm, corner 40lp/mm |
| Filter screw size | ----- (none) |
| Length at 0.2m | 30.08 |
| Entrance pupil position | 8.4 (ENT.P.) |
| Thumb screw | M2 |
