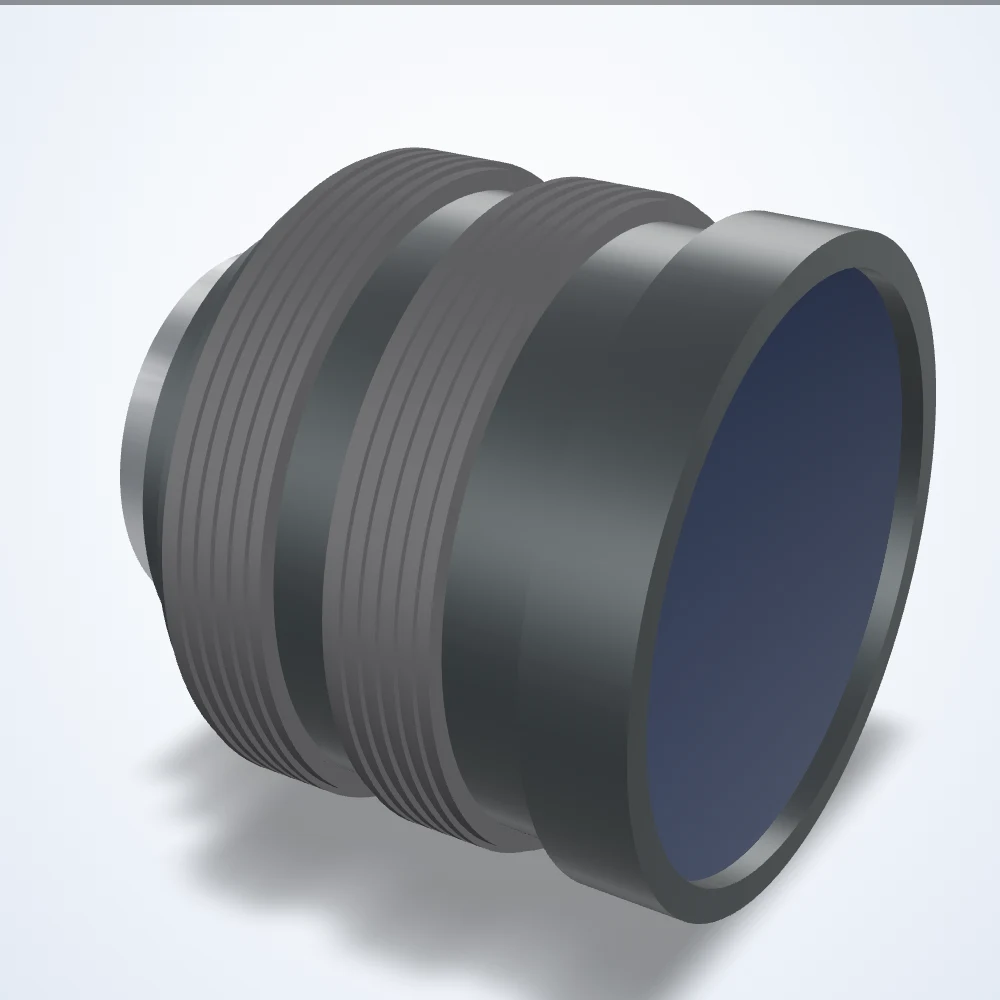

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
5 mm lens, 2/3", C-Mount (LS-FFL-0212)
Model LS-FFL-0212
5 mm lens, 2/3", C-Mount. Minimum object distance 100 mm. Aperture f/2.8 to f/8.
Specifications
| Model | LS-FFL-0212 |
|---|---|
| Front Diameter | 28 mm |
| IP Rating | IP67 |
| Image Circle Diameter | 11 mm |
| Image Size Dimensions | 8.8 mm x 6.6 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Resolution (Line Pairs / mm @ Center) | 120 |
| Resolution (Line Pairs / mm @ Corner) | 100 |
| Resolution (MP) | 2 |
| Resolution (Pixel Size) | 4.5 μm |
| Focal length (mm) | 5 |
| Aperture (F) | 2.8, 4, 5.6, 8 |
| Max. sensor format | 2/3" |
| Minimum object distance (m) | 0.1 |
| Angle of view | H 82.4 x V 66.9 deg (D 95.0 deg) |
| Distortion | 0.5% (TV) |
| Filter thread | M40.5x0.5 |
| Mount | C |
| Weight (g) | 75 |
| Dimensions (dia. x length, mm) | 43 x 38.3 |
| Picture size (largest format) | 6.6x8.8mm |
| Flange back | 17.526mm in air |
| Back focus | 10.2mm in air |
| Front/rear effective dia. | Front 28.0mm / Rear 10.0mm |
| Exit pupil | -34.7mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -20~+60 C |
| Resolution center/corner | Center 100lp/mm, corner 80lp/mm |
| Length at 0.1m | 38.55 |
| Lock ring | Red |
