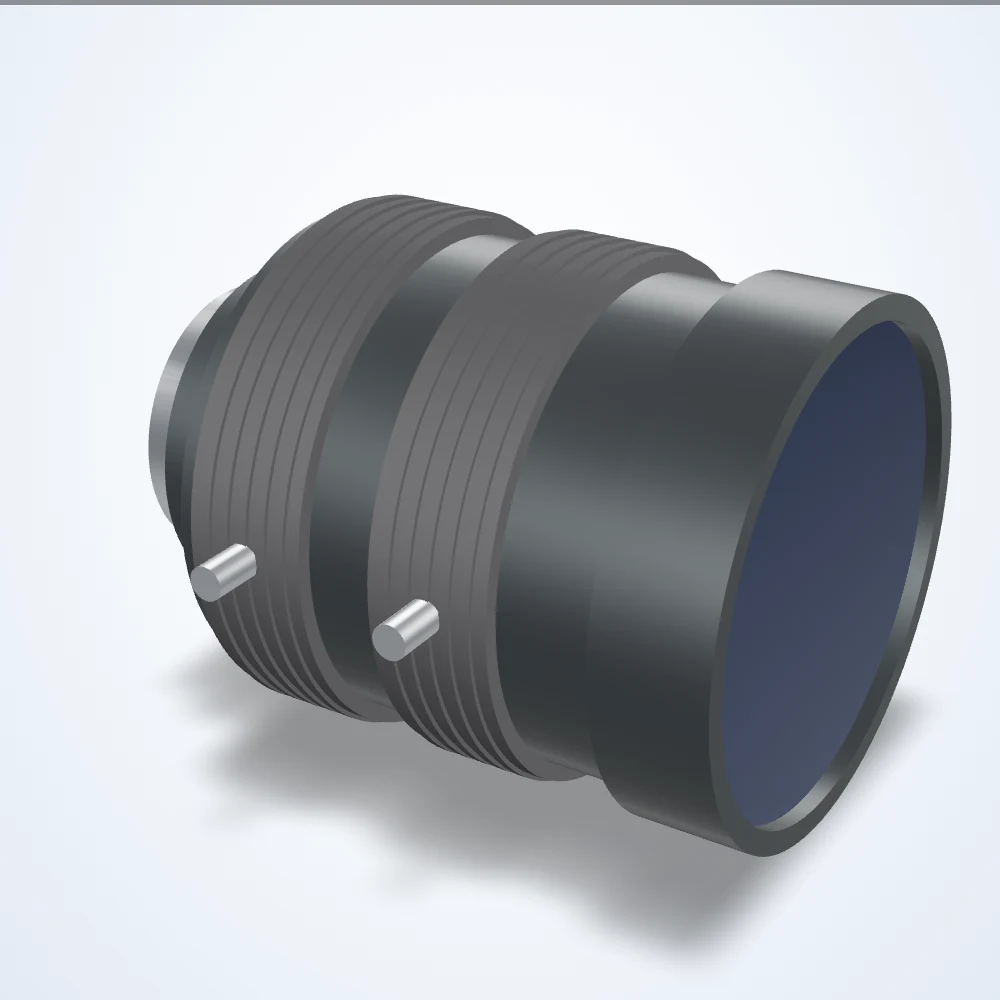

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
5 mm lens, 2/3", C-mount (LS-FFL-0210)
Model LS-FFL-0210
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0210 |
|---|---|
| Focal length (mm) | 5 |
| Max. sensor format | 2/3" |
| Mount | C-mount |
| Aperture (F) | 1.8-16 |
| Angle of view | H 82.2 x V 66.5 deg (D 95.4 deg) |
| Distortion | -0.33% (TV) |
| Angle of view @ 1/1.8″ | 71.1° × 56.5° |
| Angle of view @ 1/2″ | 64.9° × 51.1° |
| Angle of view @ 2/3″ | 82.2° × 66.5° |
| Back focus | 10.3mm in air |
| Dimensions (dia. x length, mm) | 48 x 59.4 |
| Element | 8 elements 9 groups |
| Entrance pupil position | 15.2 (E.P.) |
| Exit pupil | 332.4mm |
| Filter thread | M46x0.75 |
| Flange back | 17.526mm in air |
| Focus control | Manual |
| Focus range | 0.1 m - ∞ |
| Front diameter | 27.5 mm |
| Front/rear effective dia. | Front 27.5mm / Rear 14.3mm |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| Length at 0.1m | 57.1 |
| Lens coating | Wide band multi coating |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Operating temperature range | -10 to +50 °C |
| Picture size (largest format) | 6.6x8.8mm |
| Rear effective diameter | 14.3 mm |
| Resolution (line pairs / mm @ center) | 200 |
| Resolution center/corner | Center 200/mm, corner 140/mm |
| Shooting range at mod | 197.0(H)×147.0(V) |
| Spectrum | Visible |
| Storage temperature range | -20~+60 C |
| Temperature range | -10~+50 C |
| Thumb screw | M2 |
| Tv distortion (%) | −0.33 |
| Weight (g) | 120 |
