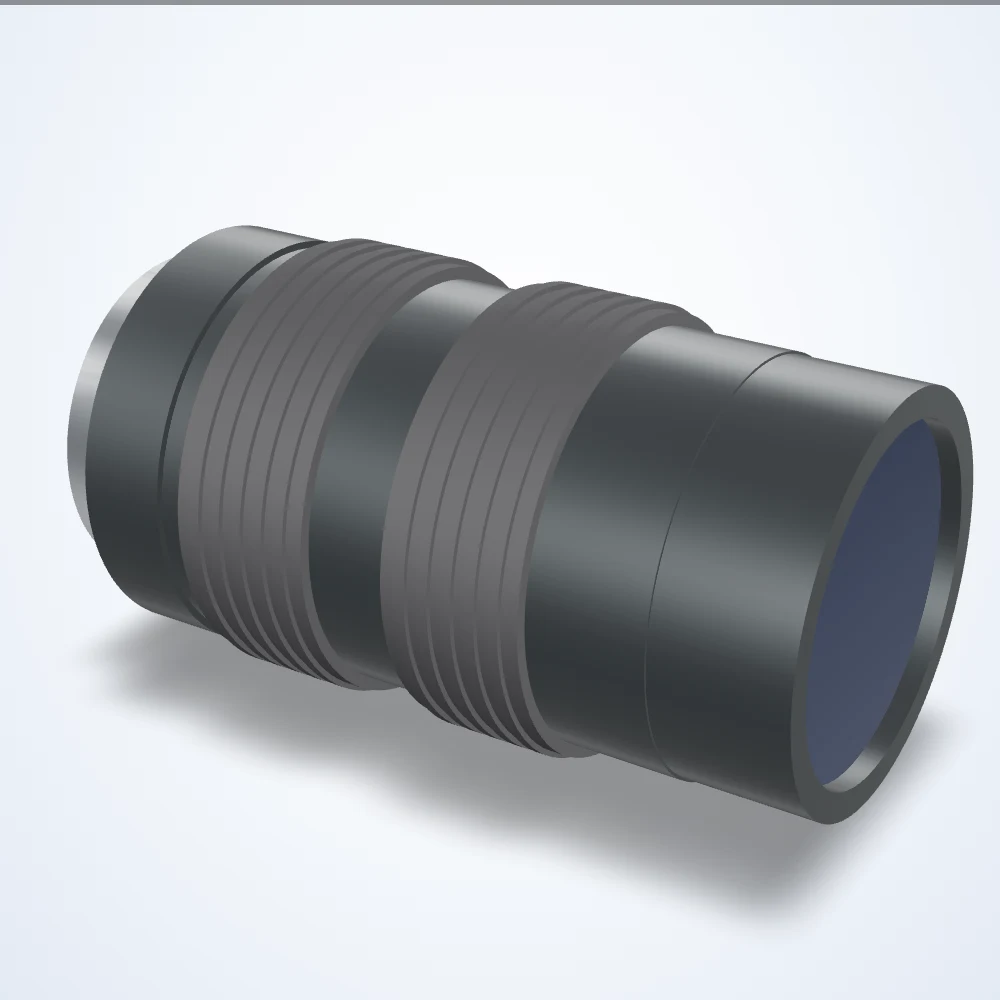

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
50 mm lens, 2/3", C-mount (LS-FFL-0206)
Model LS-FFL-0206
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0206 |
|---|---|
| Focal length (mm) | 50 |
| Max. sensor format | 2/3" |
| Mount | C-mount |
| Aperture (F) | 2.8, 4, 8, 16 |
| Angle of view | H 9.6 x V 7.2 deg (D 11.9 deg) |
| Distortion | -0.03% (TV) |
| Angle of view @ 1/1.8″ | 7.9° × 5.9° |
| Angle of view @ 1/2″ | 7.0° × 5.2° |
| Angle of view @ 2/3″ | 9.6° × 7.2° |
| Back focus | 35.5mm in air |
| Dimensions (dia. x length, mm) | 33 x 56.2 |
| Element | 4 groups 7 elements |
| Entrance pupil position | 22.6 (E.P.) |
| Exit pupil | -59.5mm |
| Filter thread | M27.0x0.5 |
| Flange back | 17.526mm in air |
| Focus control | Manual |
| Focus range | 0.2 m - ∞ |
| Front diameter | 21.7 mm |
| Front/rear effective dia. | Front 21.7mm / Rear 14.6mm |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| Length at 0.2m | 71.8 |
| Lens type | Fixed Focal Length |
| Lock ring | Red |
| Minimum object distance (m) | 0.2 |
| Operating temperature range | -10 to +50 °C |
| Picture size (largest format) | 6.6x8.8mm |
| Rear effective diameter | 14.6 mm |
| Resolution (line pairs / mm @ center) | 120 |
| Resolution center/corner | Center 100lp/mm, corner 80lp/mm |
| Shooting range at mod | 29.3(H)×21.9(V) |
| Spectrum | Visible |
| Storage temperature range | -40~+60 C |
| Temperature range | -10~+50 C |
| Tv distortion (%) | −0.03 |
| Weight (g) | 85 |
