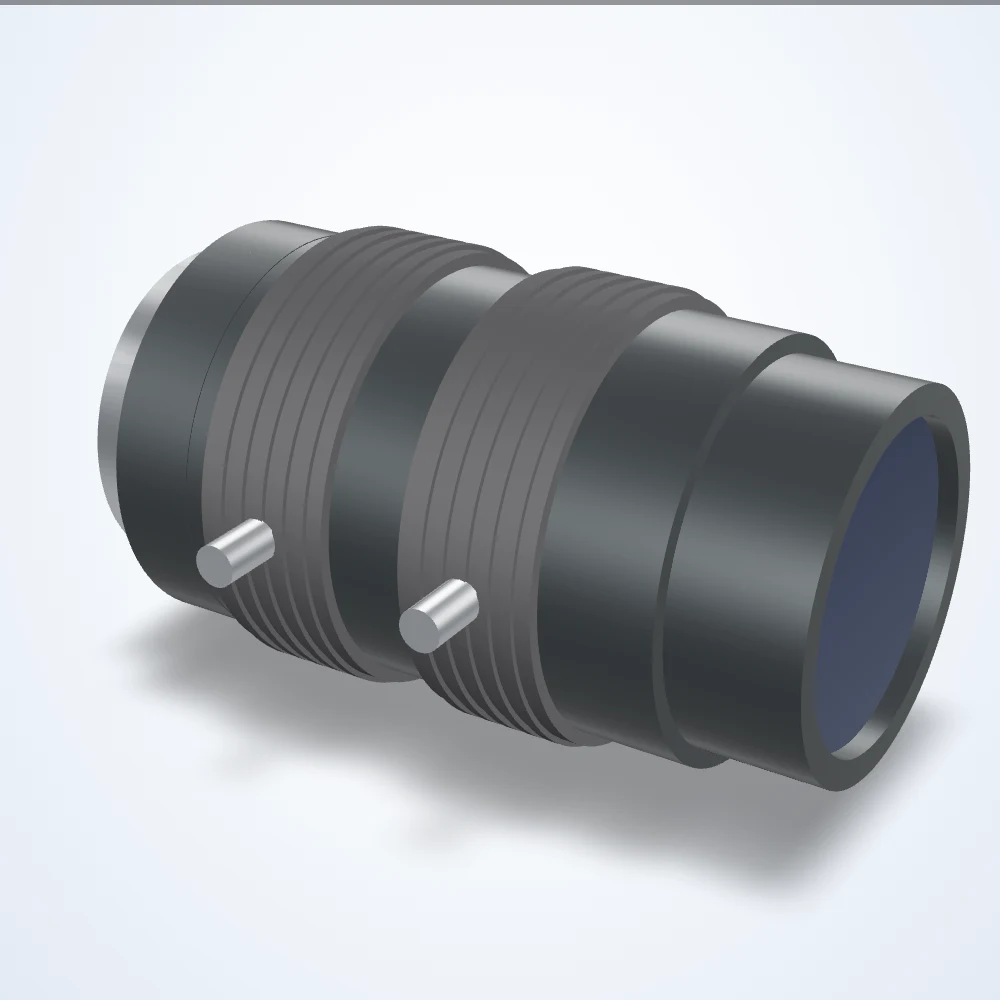

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
50 mm lens, 2/3", C-Mount (LS-FFL-0205)
Model LS-FFL-0205
50 mm lens, 2/3", C-Mount. Minimum object distance 200 mm. Aperture f/2.8 to f/22.
Specifications
| Model | LS-FFL-0205 |
|---|---|
| Front Diameter | 21.7 mm |
| Image Circle Diameter | 11 mm |
| Image Size Dimensions | 8.8 mm x 6.6 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Magnification | 0.3× |
| Resolution (Line Pairs / mm @ Center) | 120 |
| Resolution (Line Pairs / mm @ Corner) | 100 |
| Resolution (MP) | 2 |
| Resolution (Pixel Size) | 5 μm |
| Focal length (mm) | 50 |
| Aperture (F) | 2.8-22 |
| Max. sensor format | 2/3" |
| Minimum object distance (m) | 0.2 |
| Angle of view | H 9.6 x V 7.2 deg (D 12.1 deg) |
| Distortion | -0.03% (TV) |
| Filter thread | M27x0.5 |
| Mount | C |
| Weight (g) | 95 |
| Dimensions (dia. x length, mm) | 34 x 55 |
| Picture size (largest format) | 6.6x8.8mm |
| Flange back | 17.526mm in air |
| Back focus | 35.5mm in air |
| Front/rear effective dia. | Front 21.7mm / Rear 14.6mm |
| Exit pupil | -59.5mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -40~+60 C |
| Resolution center/corner | Center 100lp/mm, corner 80lp/mm |
| Length at 0.2m | 73.5 |
| Entrance pupil position | 21.4 (ENP) |
| Thumb screw | M2 |
