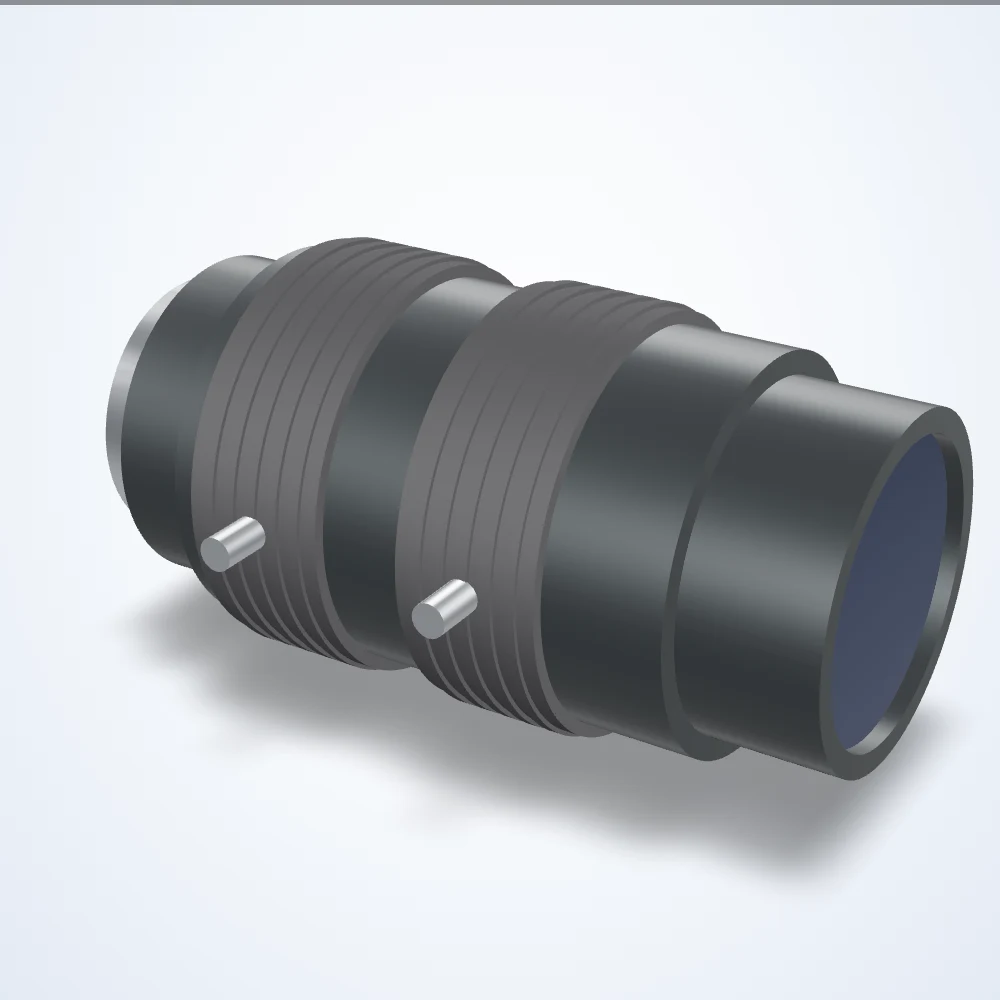

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
50 mm lens, 1", C-Mount (LS-FFL-0202)
Model LS-FFL-0202
50 mm lens, 1", C-Mount. Minimum object distance 500 mm. Aperture f/2.5 to f/16.
Specifications
| Model | LS-FFL-0202 |
|---|---|
| Front Diameter | 23.1 mm |
| Image Circle Diameter | 16 mm |
| Image Size Dimensions | 12.8 mm x 9.6 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | SWIR |
| Magnification | 0.101× |
| Resolution (Line Pairs / mm @ Center) | 160 |
| Resolution (Line Pairs / mm @ Corner) | 100 |
| Resolution (MP) | 12 |
| Resolution (Pixel Size) | 3.1 μm |
| Focal length (mm) | 50 |
| Aperture (F) | 2.5-16 |
| Max. sensor format | 1" |
| Minimum object distance (m) | 0.5 |
| Angle of view | H 14.6 x V 11.0 deg (D 18.2 deg) |
| Distortion | -0.11% (TV) |
| Filter thread | M30.5x0.5 |
| Mount | C |
| Weight (g) | 155 |
| Dimensions (dia. x length, mm) | 39.5 x 71 |
| Picture size (largest format) | 9.6x12.8mm |
| Flange back | 17.526mm in air |
| Back focus | 34.9mm in air |
| Front/rear effective dia. | Front 23.1mm / Rear 17.7mm |
| Exit pupil | -115.2mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -20~+60 C |
| Resolution center/corner | Center 160lp/mm, corner 100lp/mm |
| Length at 0.5m | 76.6 |
| Thumb screw | M2 |
