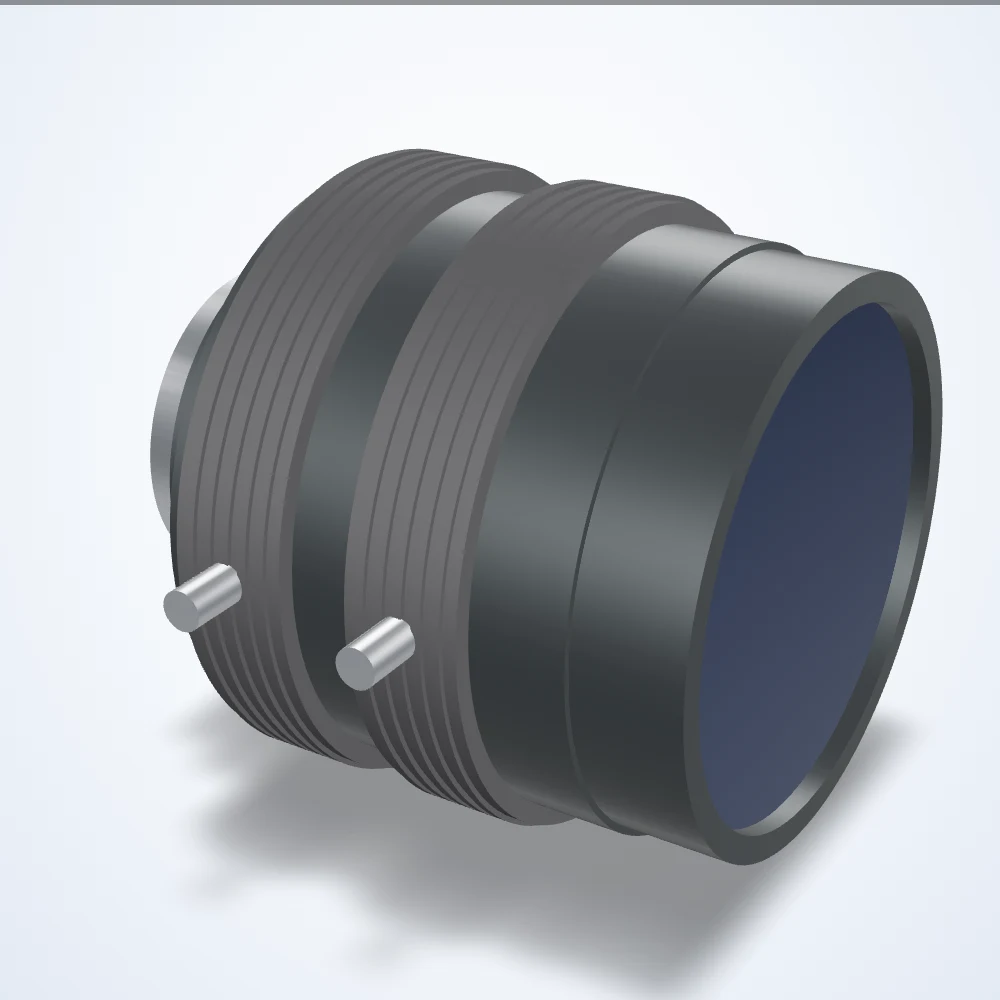

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
50 mm lens, 1", C-Mount (LS-FFL-0200)
Model LS-FFL-0200
50 mm lens, 1", C-Mount. Minimum object distance 500 mm. Aperture f/1.4 to f/16.
Specifications
| Model | LS-FFL-0200 |
|---|---|
| Front Diameter | 35 mm |
| Image Circle Diameter | 16 mm |
| Image Size Dimensions | 12.8 mm x 9.6 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | SWIR |
| Resolution (Line Pairs / mm @ Center) | 120 |
| Resolution (Line Pairs / mm @ Corner) | 80 |
| Focal length (mm) | 50 |
| Aperture (F) | 1.4-16 |
| Max. sensor format | 1" |
| Minimum object distance (m) | 0.5 |
| Angle of view | H 14.5 x V 10.8 deg (D 18.0 deg) |
| Distortion | 0.05% (TV) |
| Filter thread | M40.5x0.5 |
| Mount | C |
| Weight (g) | 210 |
| Dimensions (dia. x length, mm) | 49 x 48 |
| Picture size (largest format) | 9.6x12.8mm |
| Flange back | 17.526mm in air |
| Back focus | 14.8mm in air |
| Front/rear effective dia. | Front 35.0mm / Rear 15.5mm |
| Exit pupil | -44.4mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -20~+60 C |
| Resolution center/corner | Center 100lp/mm, corner 80lp/mm |
| Length at 0.5m | 54.4 |
| Entrance pupil position | 35.7 (E.P.) |
| Thumb screw | M2, position selectable (120deg) |
