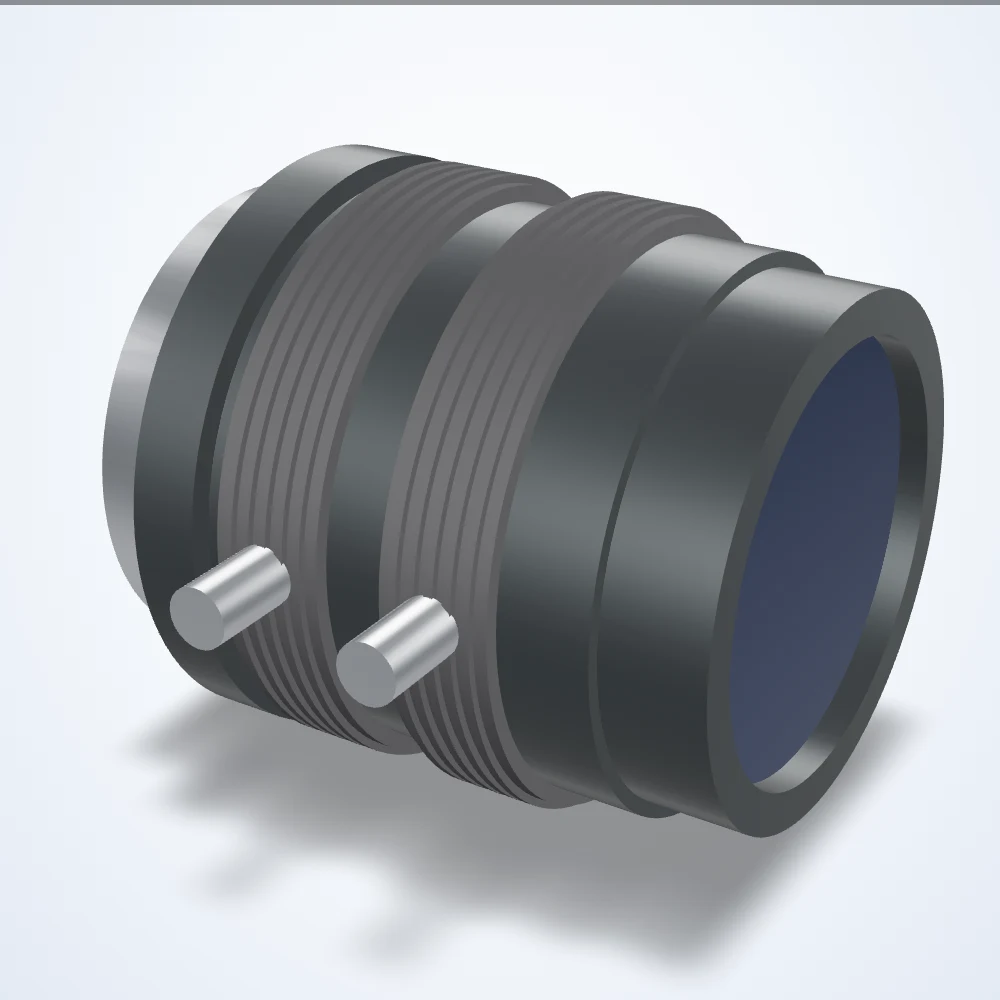

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
3.5 mm lens, 1/1.8", C-mount (LS-FFL-0195)
Model LS-FFL-0195
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0195 |
|---|---|
| Focal length (mm) | 3.5 |
| Max. sensor format | 1/1.8" |
| Mount | C-mount |
| Aperture (F) | 1.4-16 |
| Angle of view | H 117.7 x V 86.7 deg (D 152.7 deg) |
| Distortion | -28.0% (TV) |
| Angle of view @ 1/1.8″ | 117.7° × 86.7° |
| Angle of view @ 1/2″ | 103.6° × 76.7° |
| Angle of view @ 1/3″ | 76.7° × 57.7° |
| Back focus | 8.9mm in air |
| Dimensions (dia. x length, mm) | 31 x 30.5 |
| Entrance pupil position | 7.3 (ENT.P.) |
| Exit pupil | -71.9mm |
| Filter screw size | ----- (none) |
| Flange back | 17.526mm in air |
| Focus control | Manual |
| Focus range | 0.2 m - ∞ |
| Front diameter | 19.6 mm |
| Front/rear effective dia. | Front 19.6mm / Rear 10.4mm |
| Image circle | 9 mm |
| Image size dimensions | 7.2 mm x 5.4 mm |
| Iris control | Manual |
| Length at 0.2m | 31.08 |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.2 |
| Operating temperature range | -10 to +50 °C |
| Picture size (largest format) | 5.4x7.2mm |
| Rear effective diameter | 10.4 mm |
| Resolution (line pairs / mm @ center) | 100 |
| Resolution center/corner | Center 100lp/mm, corner 40lp/mm |
| Shooting range at mod | 679.9(H)×389.3(V) |
| Spectrum | Visible |
| Storage temperature range | -20~+60 C |
| Temperature range | -10~+50 C |
| Thumb screw | M2 |
| Tv distortion (%) | −28.0 |
| Weight (g) | 60 |
