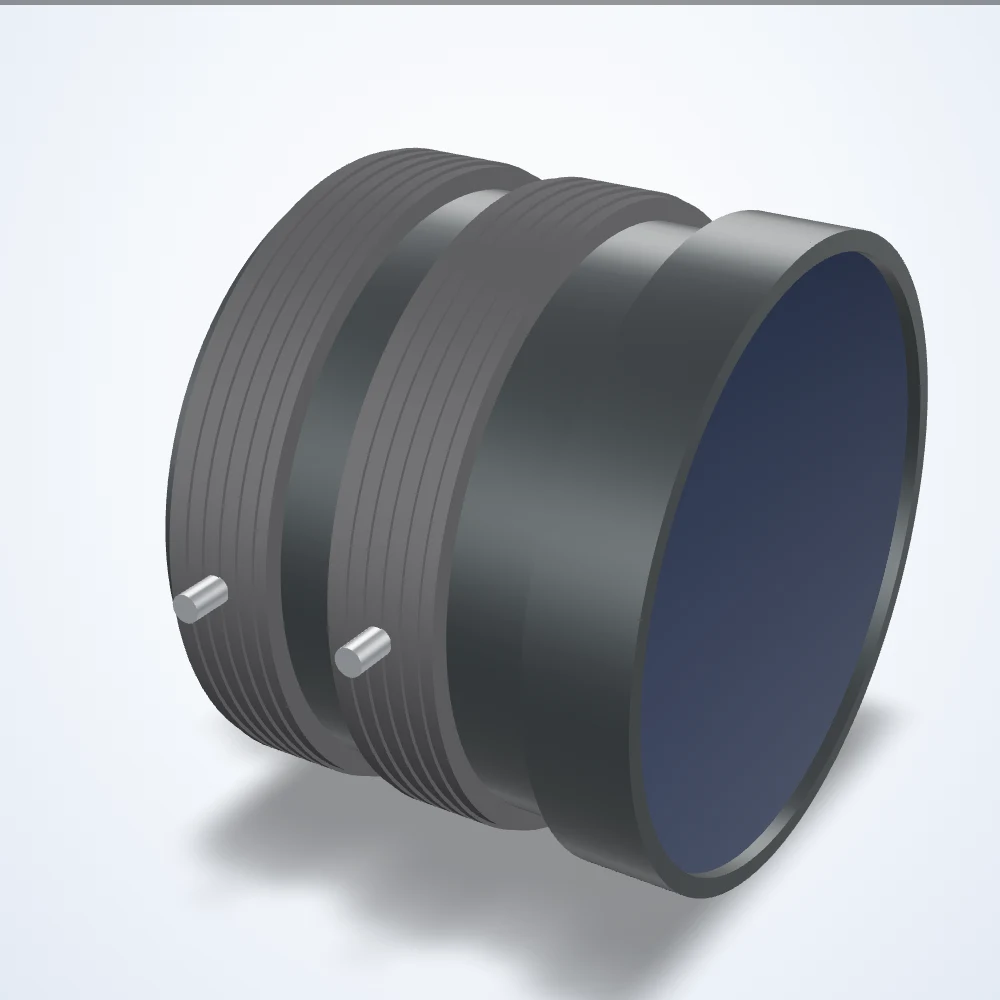

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
4.7 mm lens, 1", C-mount (LS-FFL-0194)
Model LS-FFL-0194
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0194 |
|---|---|
| Focal length (mm) | 4.7 |
| Max. sensor format | 1" |
| Mount | C-mount |
| Aperture (F) | 2.4-11 |
| Angle of view | H 112.2 x V 95.4 deg (D 123.0 deg) |
| Distortion | -0.58% (TV) |
| Angle of view @ 1/1.8″ | 77.4° × 60.8° |
| Angle of view @ 1″ | 112.2° × 95.4° |
| Angle of view @ 2/3″ | 90.0° × 72.2° |
| Back focus | 9.0mm in air |
| Dimensions (dia. x length, mm) | 71 x 64.7 |
| Element | 11 groups 15 elements |
| Entrance pupil position | 21.1 (ENP.) |
| Exit pupil | -128.6mm |
| Filter screw size | - (none) |
| Flange back | 17.526mm in air |
| Focus control | Manual |
| Focus range | 0.1 m - ∞ |
| Front diameter | 60.5 mm |
| Front/rear effective dia. | Front 60.5mm / Rear 14.8mm |
| Image circle | 16 mm |
| Image size dimensions | 12.8 mm x 9.6 mm |
| Iris control | Manual |
| Length at 0.1m | 64.1 |
| Lens coating | Wide band multi coating |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.1 |
| Operating temperature range | -10 to +50 °C |
| Picture size (largest format) | 9.6x12.8mm |
| Rear effective diameter | 14.8 mm |
| Resolution (line pairs / mm @ center) | 120 |
| Resolution center/corner | Center 100lp/mm, corner 50lp/mm |
| Shooting range at mod | 375.6(H)×272.1(V) |
| Spectrum | Visible |
| Storage temperature range | -20~+60 C |
| Temperature range | -10~+50 C |
| Thumb screw | M2 |
| Tv distortion (%) | -0.58 |
| Weight (g) | 360 |
