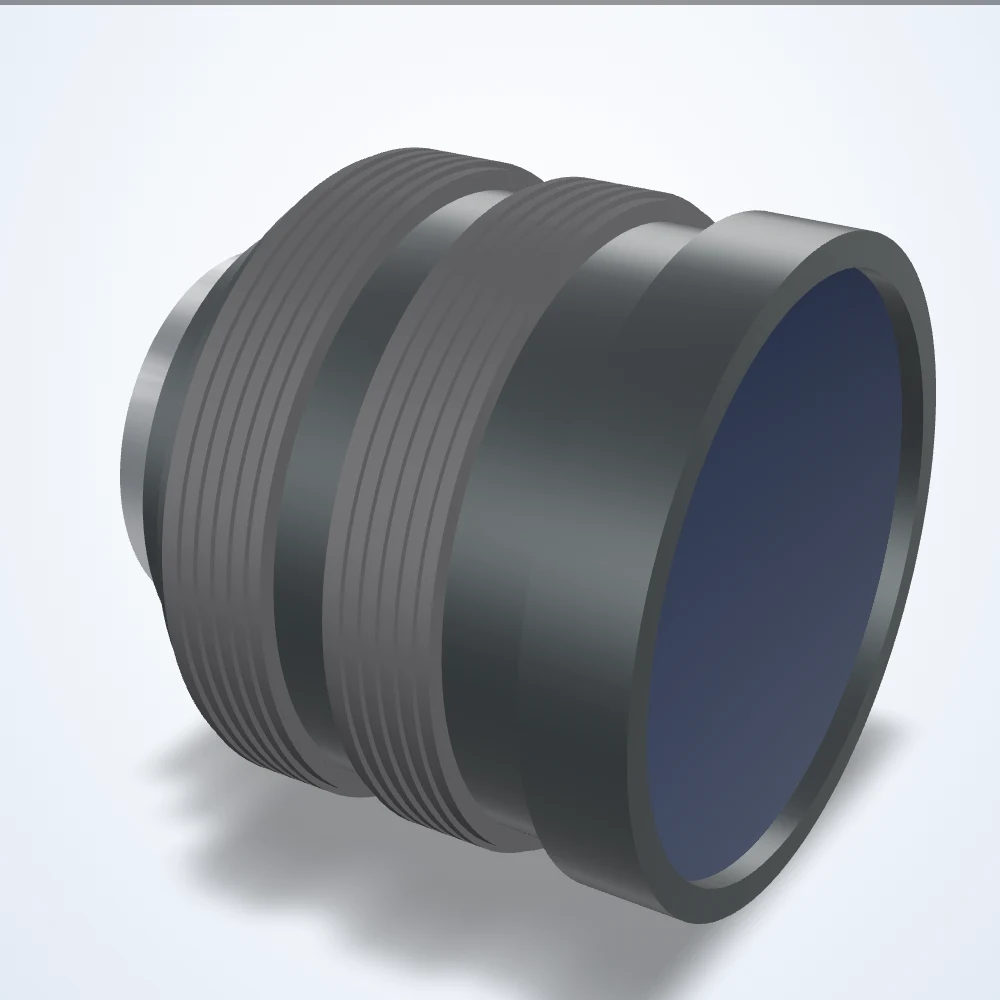

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
3.5 mm lens, 1/1.8", C-mount (LS-FFL-0193)
Model LS-FFL-0193
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0193 |
|---|---|
| Focal length (mm) | 3.5 |
| Max. sensor format | 1/1.8" |
| Mount | C-mount |
| Aperture (F) | 2.4, 4, 5.6, 8 |
| Angle of view | H 89.0 x V 73.8 deg (D 101.7 deg) |
| Distortion | 0.4% (TV) |
| Angle of view @ 1/1.8″ | 89.0° × 73.8° |
| Angle of view @ 1/2″ | 82.4° × 66.9° |
| Back focus | 10.0mm in air |
| Dimensions (dia. x length, mm) | 43 x 38.3 |
| Exit pupil | -34.7mm |
| Filter thread | M40.5x0.5 |
| Flange back | 17.526mm in air |
| Focus control | Manual |
| Focus range | 0.1 m - ∞ |
| Front diameter | 28 mm |
| Front/rear effective dia. | Front 28.0mm / Rear 10.0mm |
| Image circle | 9 mm |
| Image size dimensions | 7.2 mm x 5.4 mm |
| Iris control | Manual |
| Length at 0.1m | 38.4 |
| Lens type | Fixed Focal Length |
| Lock ring | Red |
| Minimum object distance (m) | 0.1 |
| Operating temperature range | -10 to +50 °C |
| Picture size (largest format) | 5.4x7.2mm |
| Rear effective diameter | 10 mm |
| Resolution (line pairs / mm @ center) | 100 |
| Resolution center/corner | Center 100lp/mm, corner 80lp/mm |
| Shooting range at mod | 226.3(H)×171.4(V) |
| Spectrum | Visible |
| Storage temperature range | -20~+60 C |
| Temperature range | -10~+50 C |
| Tv distortion (%) | 0.4 |
| Weight (g) | 80 |
