Machine vision lenses

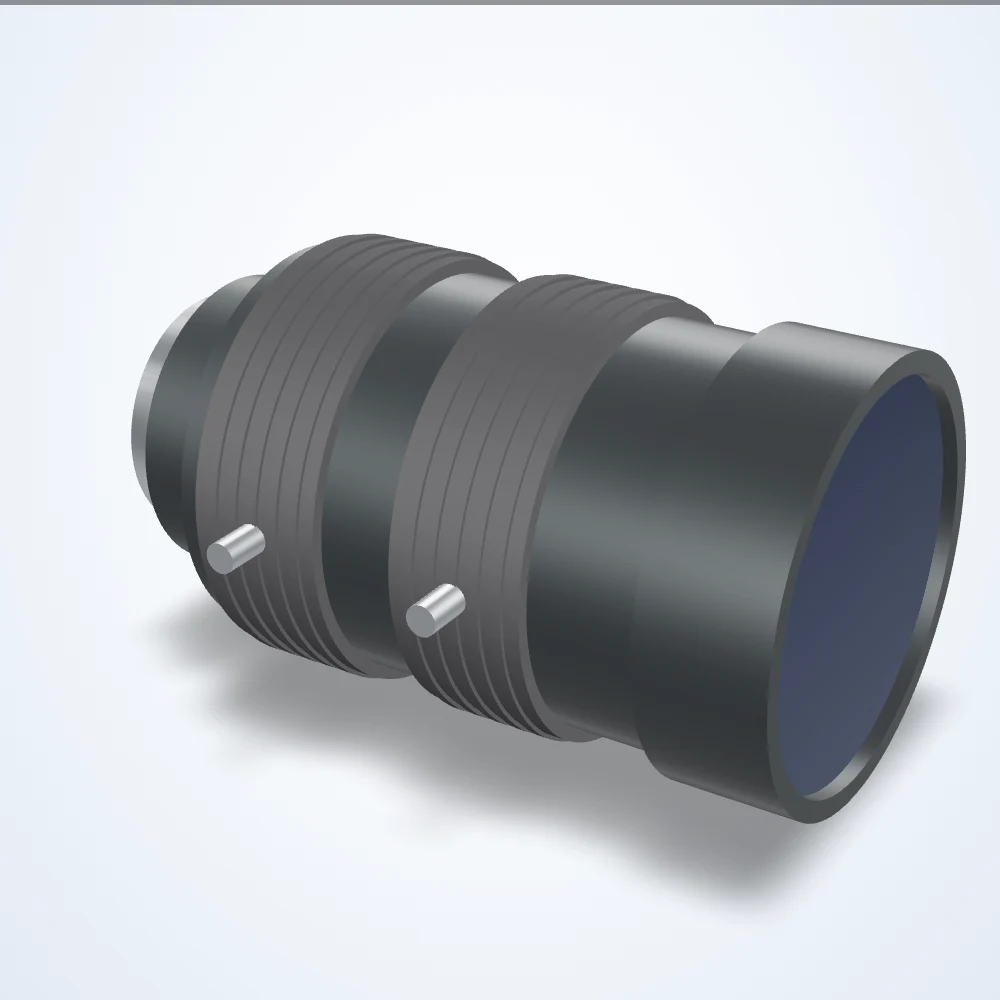

35 mm lens, 4/3", C-mount (LS-FFL-0192)
Model LS-FFL-0192
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0192 |
|---|---|
| Focal length (mm) | 35 |
| Max. sensor format | 4/3" |
| Mount | C-mount |
| Aperture (F) | 2.0-16 |
| Angle of view | H 29.6 x V 22.4 deg (D 36.6 deg) |
| Distortion | -0.17% (TV) |
| Angle of view @ 1.1″ | 22.8° × 17.2° |
| Angle of view @ 1″ | 20.8° × 15.6° |
| Angle of view @ 2/3″ | 14.3° × 10.8° |
| Angle of view @ 4/3″ | 29.6° × 22.4° |
| Back focus | 15.2mm in air |
| Dimensions (dia. x length, mm) | 45 x 74 |
| Element | 6 groups 8 elements |
| Entrance pupil position | 30 (E.P.) |
| Exit pupil | -39.2mm |
| Filter thread | M37.5x0.5 |
| Flange back | 17.526mm in air |
| Focus control | Manual |
| Focus range | 0.2 m - ∞ |
| Front diameter | 26.5 mm |
| Front/rear effective dia. | Front 26.5mm / Rear 16.9mm |
| Image circle | 23 mm |
| Image size dimensions | 18.4 mm x 13.8 mm |
| Iris control | Manual |
| Lens coating | Wide band multi coating |
| Lens type | Fixed Focal Length |
| Magnification with 10mm ring | 0.48× |
| Magnification with 1mm ring | 0.21× |
| Magnification with 20mm ring | 0.77× |
| Magnification with 5mm ring | 0.33× |
| Minimum object distance (m) | 0.2 |
| Minimum object distance with 10mm ring | 85 mm |
| Minimum object distance with 1mm ring | 174 mm |
| Minimum object distance with 20mm ring | 58 mm |
| Minimum object distance with 5mm ring | 117 mm |
| Operating temperature range | -10 to +50 °C |
| Picture size (largest format) | 13.8x18.4mm |
| Rear effective diameter | 16.9 mm |
| Resolution (line pairs / mm @ center) | 160 |
| Resolution center/corner | Center 160/mm, corner 80/mm |
| Shooting range at mod | 100.3(H)×75.3(V) |
| Spectrum | Visible |
| Storage temperature range | -20~+60 C |
| Temperature range | -10~+50 C |
| Thumb screw | M2 |
| Tv distortion (%) | −0.17 |
| Weight (g) | 210 |
