Machine vision lenses

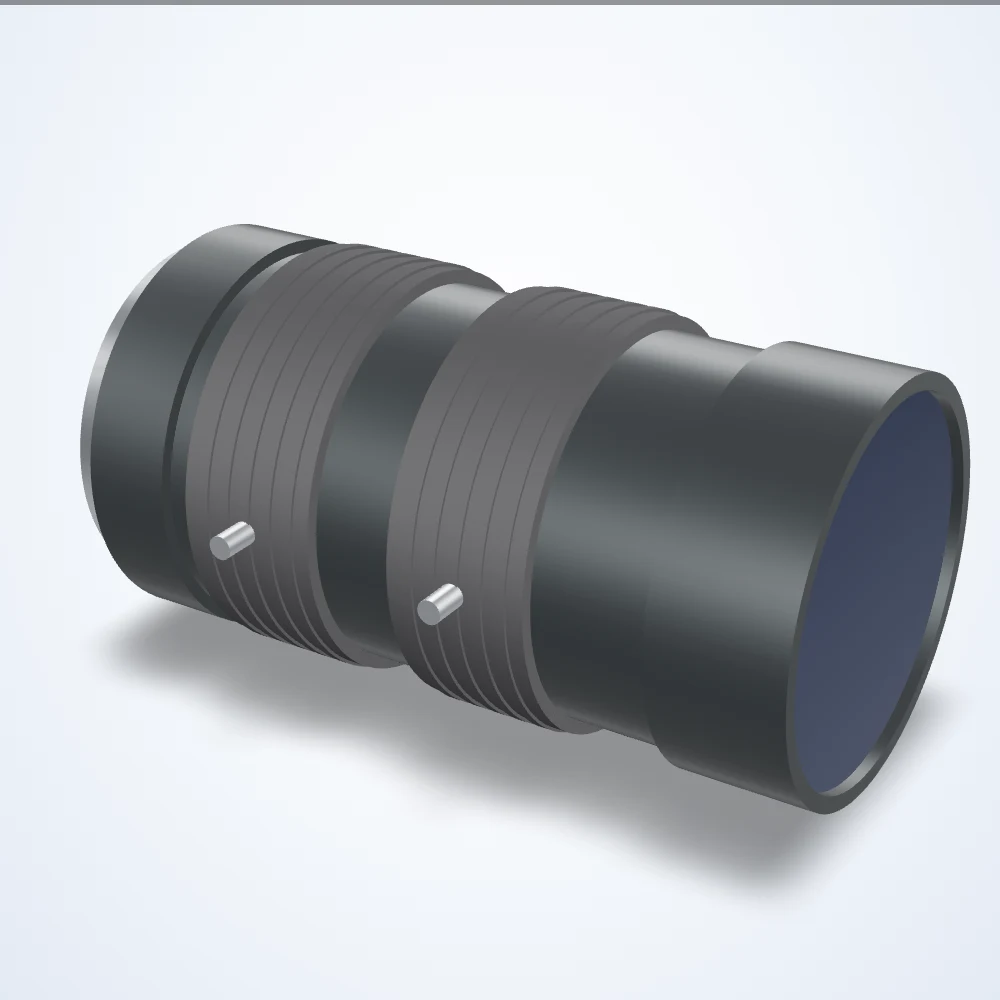

35 mm lens, 43.3 mm, TFL-II Mount (LS-FFL-0189)
Model LS-FFL-0189
35 mm lens, 43.3 mm, TFL-II Mount. Minimum object distance 260 mm. Aperture f/2.8 to f/22.
Specifications
| Model | LS-FFL-0189 |
|---|---|
| Front Diameter | 37.7 mm |
| Image Circle Diameter | 23 mm |
| Image Size Dimensions | 18.4 mm x 13.8 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Resolution (Line Pairs / mm @ Center) | 160 |
| Resolution (Line Pairs / mm @ Corner) | 63 |
| Resolution (Pixel Size) | 7.5 μm |
| Focal length (mm) | 35 |
| Aperture (F) | 2.8-22 |
| Max. sensor format | Full size (24x36mm) |
| Minimum object distance (m) | 0.4 |
| Angle of view | H 53.7 x V 37.2 deg (D 62.6 deg) |
| Distortion | -0.15% (TV) |
| Filter thread | M52x0.75 |
| Mount | M48x0.75 (TFL-II) |
| Weight (g) | 430 |
| Dimensions (dia. x length, mm) | 55 x 100 |
| Element | 10 groups 11 elements |
| Picture size (largest format) | 24x36mm |
| Flange back | 46.5mm in air |
| Back focus | 34.6mm in air |
| Front/rear effective dia. | Front 37.7 / Rear 24.6 |
| Exit pupil | -45.5mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -20~+60 C |
| Resolution center/corner | Center 160lp/mm, corner 63lp/mm |
| Length at 0.4m | 104 |
| Entrance pupil position | 30.8 (E.P.) |
