Machine vision lenses

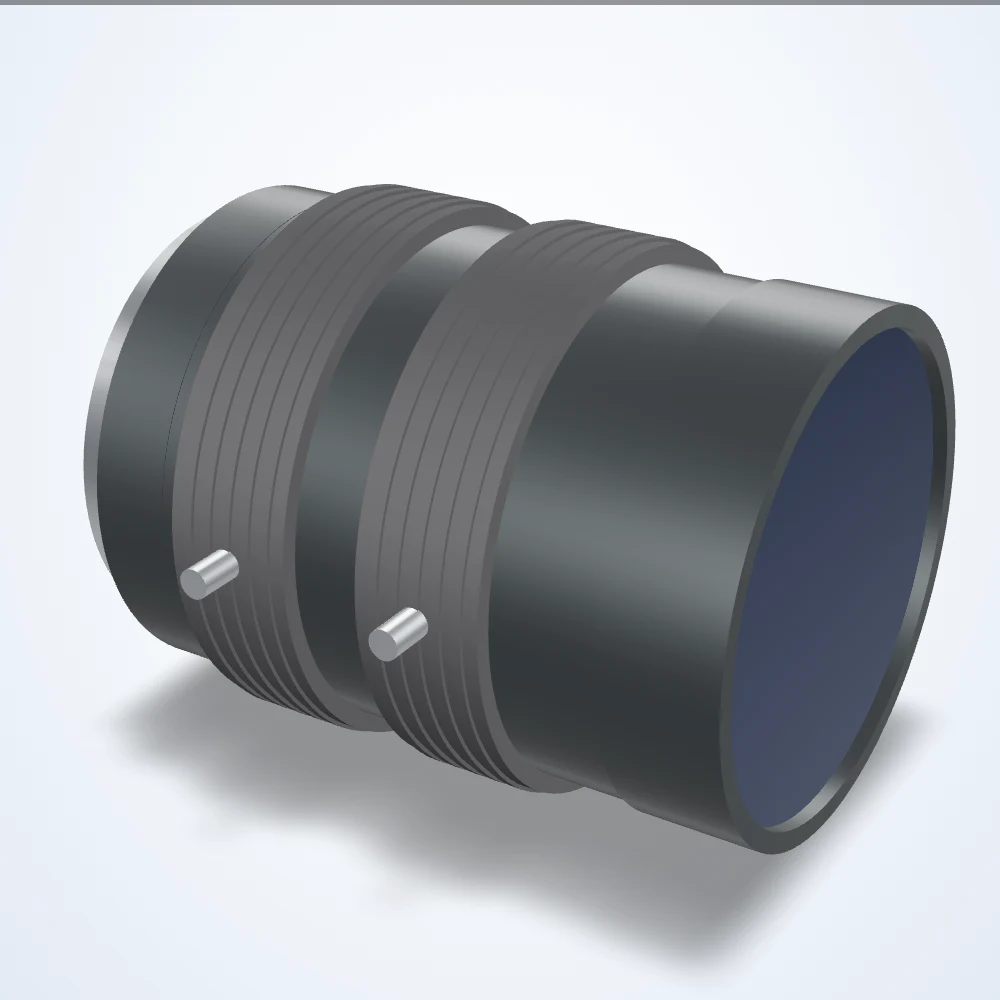

35 mm lens, Full size (24x36mm), F-mount (LS-FFL-0188)
Model LS-FFL-0188
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0188 |
|---|---|
| Focal length (mm) | 35 |
| Max. sensor format | Full size (24x36mm) |
| Mount | F-mount |
| Aperture (F) | 2.8-22 |
| Angle of view | H 53.7 x V 37.2 deg (D 62.6 deg) |
| Distortion | -0.15% (TV) |
| Angle of view @ 1″ | 20.3° × 15.3° |
| Angle of view @ 4/3″ | 28.9° × 21.8° |
| Angle of view @ full size | 53.7° × 37.2° |
| Back focus | 34.6mm in air |
| Dimensions (dia. x length, mm) | 57.5 x 71 |
| Element | 10 groups 11 elements |
| Entrance pupil position | 30.8 (E.P.) |
| Exit pupil | -45.5mm |
| Filter thread | M52x0.75 |
| Flange back | 46.5mm in air |
| Focus control | Manual |
| Focus range | 0.4 m - ∞ |
| Front diameter | 37.7 mm |
| Front/rear effective dia. | Front 37.7 / Rear 24.6 |
| Image circle | 23 mm |
| Image size dimensions | 18.4 mm x 13.8 mm |
| Iris control | Manual |
| Length at 0.4m | 75 |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.4 |
| Operating temperature range | -10 to +50 °C |
| Picture size (largest format) | 24x36mm |
| Rear effective diameter | 24.6 mm |
| Resolution (line pairs / mm @ center) | 160 |
| Resolution center/corner | Center 160lp/mm, corner 63lp/mm |
| Shooting range at mod | 239.9×160.3 |
| Spectrum | Visible |
| Storage temperature range | -20~+60 C |
| Temperature range | -10~+50 C |
| Tv distortion (%) | −0.15 |
| Weight (g) | 430 |
