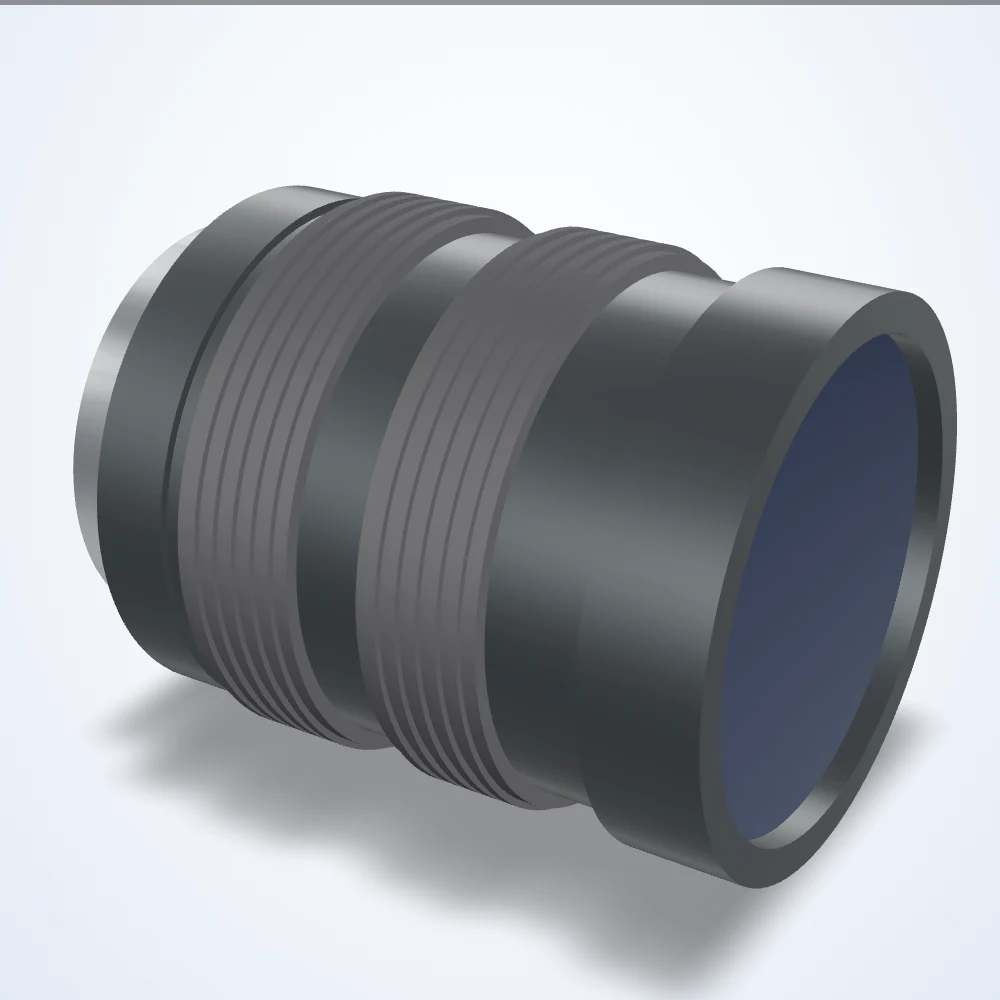

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 2/3", C-Mount (LS-FFL-0187)
Model LS-FFL-0187
35 mm lens, 2/3", C-Mount. Minimum object distance 200 mm. Aperture f/2 to f/16.
Specifications
| Model | LS-FFL-0187 |
|---|---|
| Front Diameter | 21.5 mm |
| IP Rating | IP67 |
| Image Circle Diameter | 11 mm |
| Image Size Dimensions | 8.8 mm x 6.6 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Resolution (Line Pairs / mm @ Center) | 120 |
| Resolution (Line Pairs / mm @ Corner) | 100 |
| Resolution (MP) | 2 |
| Resolution (Pixel Size) | 4.5 μm |
| Focal length (mm) | 35 |
| Aperture (F) | 2, 4, 8, 16 |
| Max. sensor format | 2/3" |
| Minimum object distance (m) | 0.2 |
| Angle of view | H 14.4 x V 10.8 deg (D 17.9 deg) |
| Distortion | -0.2% (TV) |
| Filter thread | M27.0x0.5 |
| Mount | C |
| Weight (g) | 65 |
| Dimensions (dia. x length, mm) | 33 x 38.8 |
| Element | 4 groups 7 elements |
| Picture size (largest format) | 6.6x8.8mm |
| Flange back | 17.526mm in air |
| Back focus | 19.9mm in air (mechanical 14.0mm in air) |
| Front/rear effective dia. | Front 21.5mm / Rear 11.7mm |
| Exit pupil | -38.8mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -40~+60 C |
| Resolution center/corner | Center 100lp/mm, corner 80lp/mm |
| Length at 0.2m | 45.3 |
| Entrance pupil position | 30.4 (E.P.) |
| Lock ring | Red |
