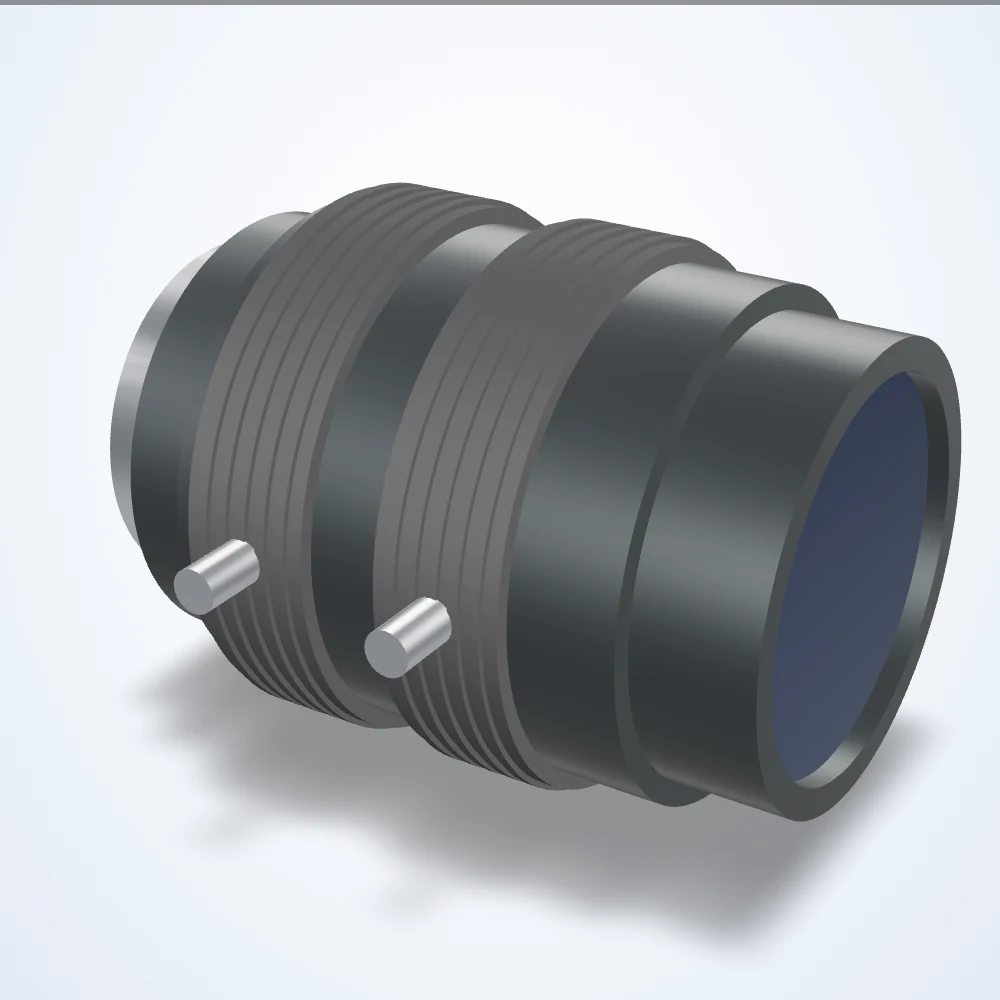

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 2/3", C-Mount (LS-FFL-0185)
Model LS-FFL-0185
35 mm lens, 2/3", C-Mount. Minimum object distance 180 mm. Aperture f/1.6 to f/16.
Specifications
| Model | LS-FFL-0185 |
|---|---|
| Front Diameter | 23.5 mm |
| Image Circle Diameter | 11 mm |
| Image Size Dimensions | 8.8 mm x 6.6 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Magnification | 0.209× |
| Resolution (Line Pairs / mm @ Center) | 160 |
| Resolution (Line Pairs / mm @ Corner) | 125 |
| Resolution (MP) | 5 |
| Resolution (Pixel Size) | 3.5 μm |
| Focal length (mm) | 35 |
| Aperture (F) | 1.6-16 |
| Max. sensor format | 2/3" |
| Minimum object distance (m) | 0.18 |
| Angle of view | H 14.3 x V 10.8 deg (D 17.5 deg) |
| Distortion | -0.03% (TV) |
| Filter thread | M30.5x0.5 |
| Mount | C |
| Weight (g) | 120 |
| Dimensions (dia. x length, mm) | 38.5 x 48 |
| Element | 7 groups 9 elements |
| Picture size (largest format) | 6.6x8.8mm |
| Flange back | 17.526mm in air |
| Back focus | 12.2mm in air |
| Front/rear effective dia. | Front 23.5mm / Rear 14.5mm |
| Exit pupil | -39.2mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -20~+60 C |
| Resolution center/corner | Center 160/mm, corner 125/mm |
| Length at 0.18m | 58.6 |
| Entrance pupil position | 35.8 (E.P.) |
| Thumb screw | M2 |
