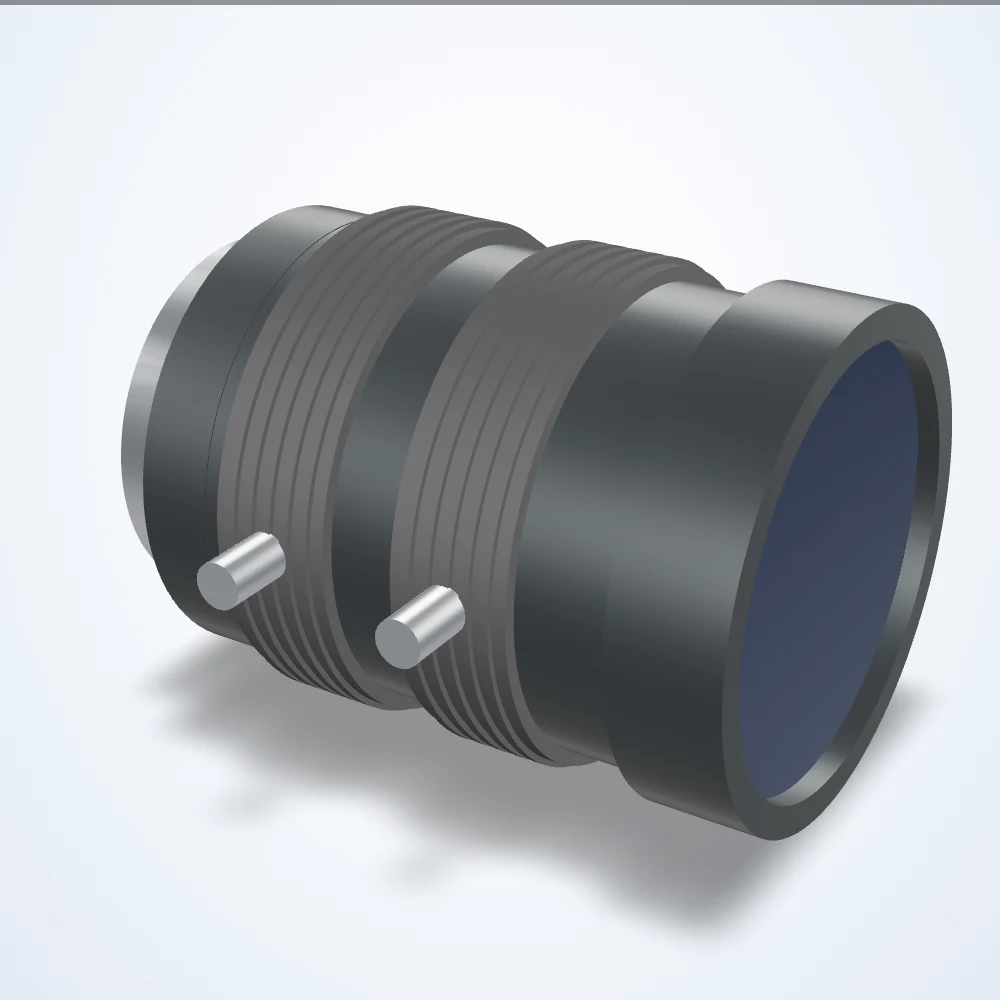

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 2/3", C-Mount (LS-FFL-0184)
Model LS-FFL-0184
35 mm lens, 2/3", C-Mount. Minimum object distance 300 mm. Aperture f/2 to f/22.
Specifications
| Model | LS-FFL-0184 |
|---|---|
| Front Diameter | 19.7 mm |
| Image Circle Diameter | 11 mm |
| Image Size Dimensions | 8.8 mm x 6.6 mm |
| Lens Type | Fixed Focal Length |
| Light Spectrum | Visible |
| Resolution (Line Pairs / mm @ Center) | 120 |
| Resolution (Line Pairs / mm @ Corner) | 80 |
| Resolution (MP) | 5 |
| Resolution (Pixel Size) | 3.5 μm |
| Focal length (mm) | 35 |
| Aperture (F) | 2.0-22 |
| Max. sensor format | 2/3" |
| Minimum object distance (m) | 0.3 |
| Angle of view | H 13.9 x V 10.5 deg (D 17.4 deg) |
| Distortion | -0.3% (TV) |
| Filter thread | M30.5x0.5 |
| Mount | C |
| Weight (g) | 100 |
| Dimensions (dia. x length, mm) | 34 x 43 |
| Element | 6 groups 8 elements |
| Picture size (largest format) | 6.6x8.8mm |
| Flange back | 17.526mm in air |
| Back focus | 19.2mm in air |
| Front/rear effective dia. | Front 19.7mm / Rear 14.7mm |
| Exit pupil | -65.8mm |
| Temperature range | -10~+50 C |
| Storage temperature range | -20~+60 C |
| Resolution center/corner | Center 120/mm, corner 80/mm |
| Length at 0.3m | 47.3 |
| Entrance pupil position | 31.4 (E.P.) |
| Thumb screw | M2, position selectable (120deg) |
