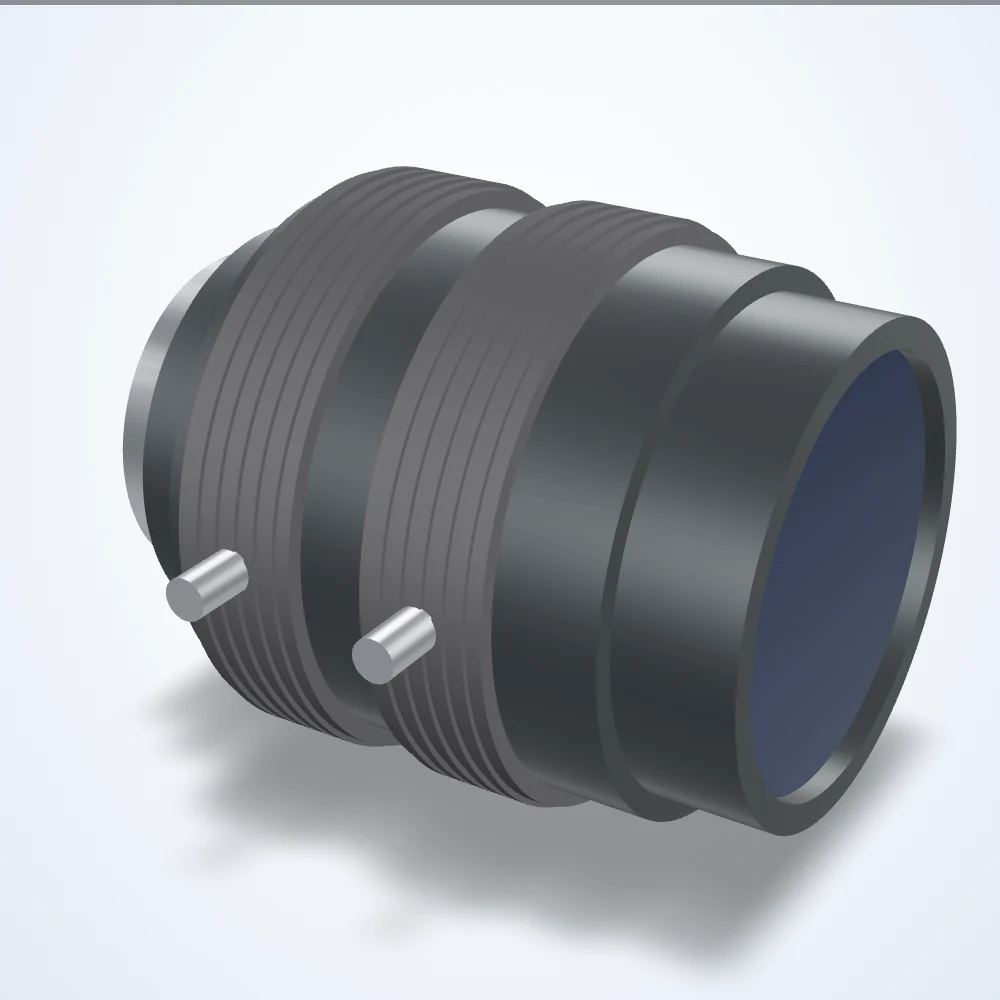

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 2/3", C-mount (LS-FFL-0182)
Model LS-FFL-0182
Machine vision lens for industrial cameras.
Specifications
| Model | LS-FFL-0182 |
|---|---|
| Focal length (mm) | 35 |
| Max. sensor format | 2/3" |
| Mount | C-mount |
| Aperture (F) | 2-16 |
| Angle of view | H 14.3 x V 10.8 deg (D 17.8 deg) |
| Distortion | 0.05% (TV) |
| Angle of view @ 1/1.8″ | 11.7° × 8.8° |
| Angle of view @ 1/2″ | 10.4° × 7.8° |
| Angle of view @ 2/3″ | 14.3° × 10.8° |
| Back focus | 14.2mm in air |
| Dimensions (dia. x length, mm) | 43 x 49 |
| Element | 7 groups 9 elements |
| Entrance pupil position | 36.8 (E.P.) |
| Exit pupil | -39.2mm |
| Filter thread | M34x0.5 |
| Flange back | 17.526mm in air |
| Focus control | Manual |
| Focus range | 0.1 m - ∞ |
| Front diameter | 23 mm |
| Front/rear effective dia. | Front 23.0mm / Rear 14.5mm |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
| Length at 0.1m | 68.2 |
| Lens coating | Wide band multi coating |
| Lens type | Fixed Focal Length |
| Magnification with 10mm ring | 0.62× |
| Magnification with 1mm ring | 0.4× |
| Magnification with 20mm ring | 0.87× |
| Magnification with 5mm ring | 0.5× |
| Minimum object distance (m) | 0.1 |
| Minimum object distance with 10mm ring | 49 mm |
| Minimum object distance with 1mm ring | 85 mm |
| Minimum object distance with 20mm ring | 31 mm |
| Minimum object distance with 5mm ring | 65 mm |
| Operating temperature range | -10 to +50 °C |
| Picture size (largest format) | 6.6x8.8mm |
| Rear effective diameter | 14.5 mm |
| Resolution (line pairs / mm @ center) | 200 |
| Resolution center/corner | Center 200lp/mm, corner 140lp/mm |
| Shooting range at mod | 23.4(H)×17.6(V) |
| Spectrum | Visible |
| Storage temperature range | -20~+60 C |
| Temperature range | -10~+50 C |
| Thumb screw | M2 |
| Tv distortion (%) | 0.05 |
| Weight (g) | 160 |
